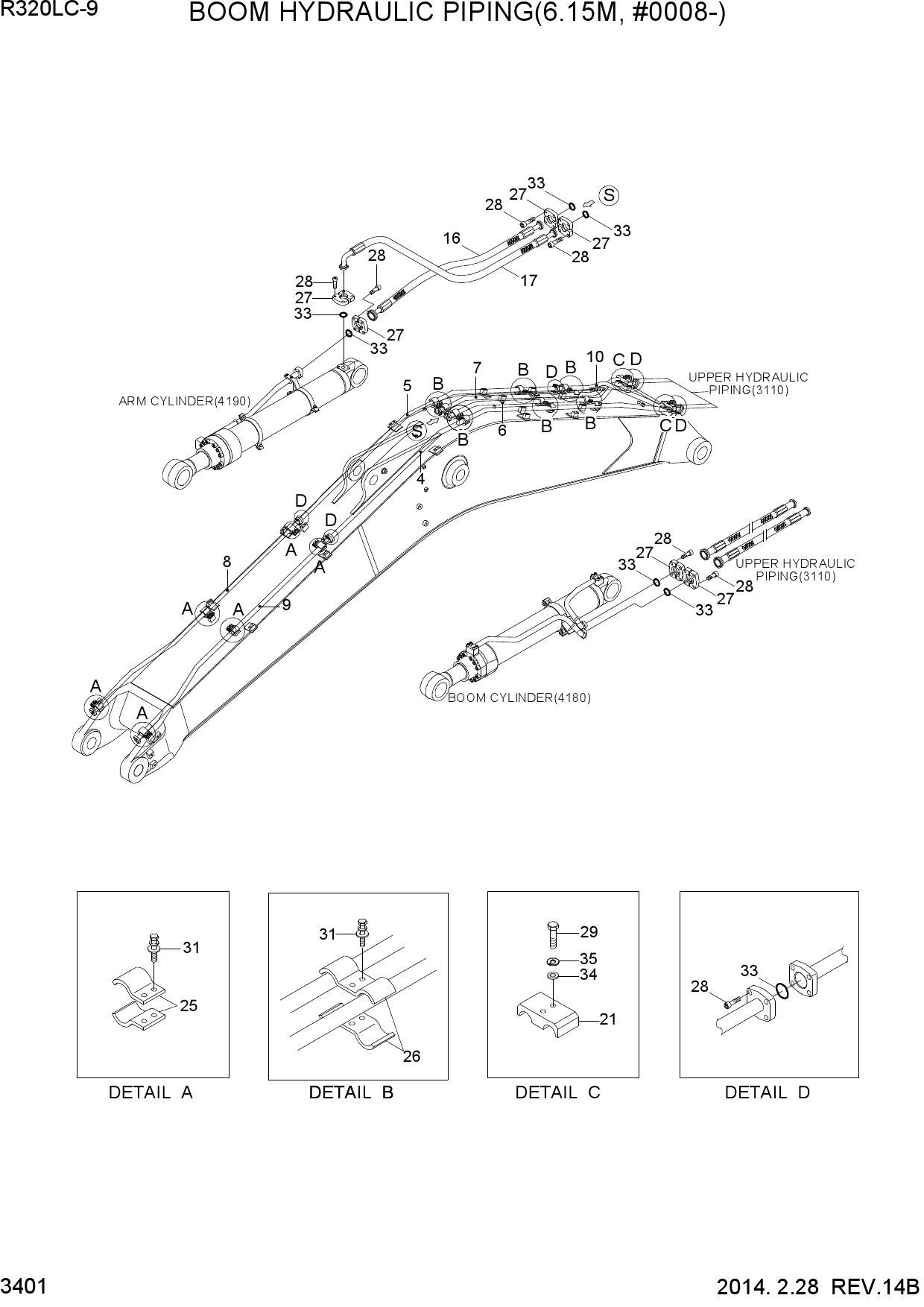

Запчасти для гусеничных экскаваторов Hyundai R320LC-9 BOOM HYDRAULIC PIPING(6.15M, #0008-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31Q9-50240 | PIPE WA | |
| 4 | 31Q9-50241 | PIPE WA | |
| 5 | 31Q9-50250 | PIPE WA | |
| 5 | 31Q9-50251 | PIPE WA | |
| 6 | 31Q9-50260 | PIPE WA | |
| 6 | 31Q9-50261 | PIPE WA | |
| 7 | 31Q9-50270 | PIPE WA | |
| 7 | 31Q9-50271 | PIPE WA | |
| 8 | 31Q9-50181 | PIPE WA-BUCKET CYL,SC | |
| 8 | 31Q9-50182 | PIPE WA-BUCKET CYL,SC | |
| 9 | 31Q9-50191 | PIPE WA-BUCKET CYL,LC | |
| 9 | 31Q9-50192 | PIPE WA-BUCKET CYL,LC | |
| 10 | 31Q9-50200 | PIPE WA-BUCKET CYL,SC | |
| 10 | 31Q9-50201 | PIPE WA-BUCKET CYL,SC | |
| 16 | P680-168327 | HOSE ASSY-FLG 0X0 | |
| 16 | 31Q9-55930 | HOSE ASSY-FLG(HI-GRADE) | |
| 17 | P700-168322 | HOSE ASSY-FLG 0X90 | |
| 17 | 31Q6-55910 | HOSE ASSY-FLG(HI-GRADE) | |
| 21 | 31Q6-50200 | CLAMP-PIPE | |
| 25 | 31E7-01711 | CLAMP ASSY | |
| 26 | 31E7-01750 | CLAMP ASSY | |
| 27 | P173-160104 | FLANGE-HYD,SPLIT | |
| 28 | S109-100306 | BOLT-SOCKET | |
| 29 | S017-120606 | BOLT-HEX | |
| 29 | S017-120656 | BOLT-HEX | |
| 31 | S037-124026 | BOLT-W/WASHER | |
| 33 | Y171-024004 | O-RING | |
| 34 | S441-12000B | WASHER-HARDENED | |
| 34 | S403-12200B | WASHER-PLAIN | |
| 35 | S411-120006 | WASHER-SPRING |
