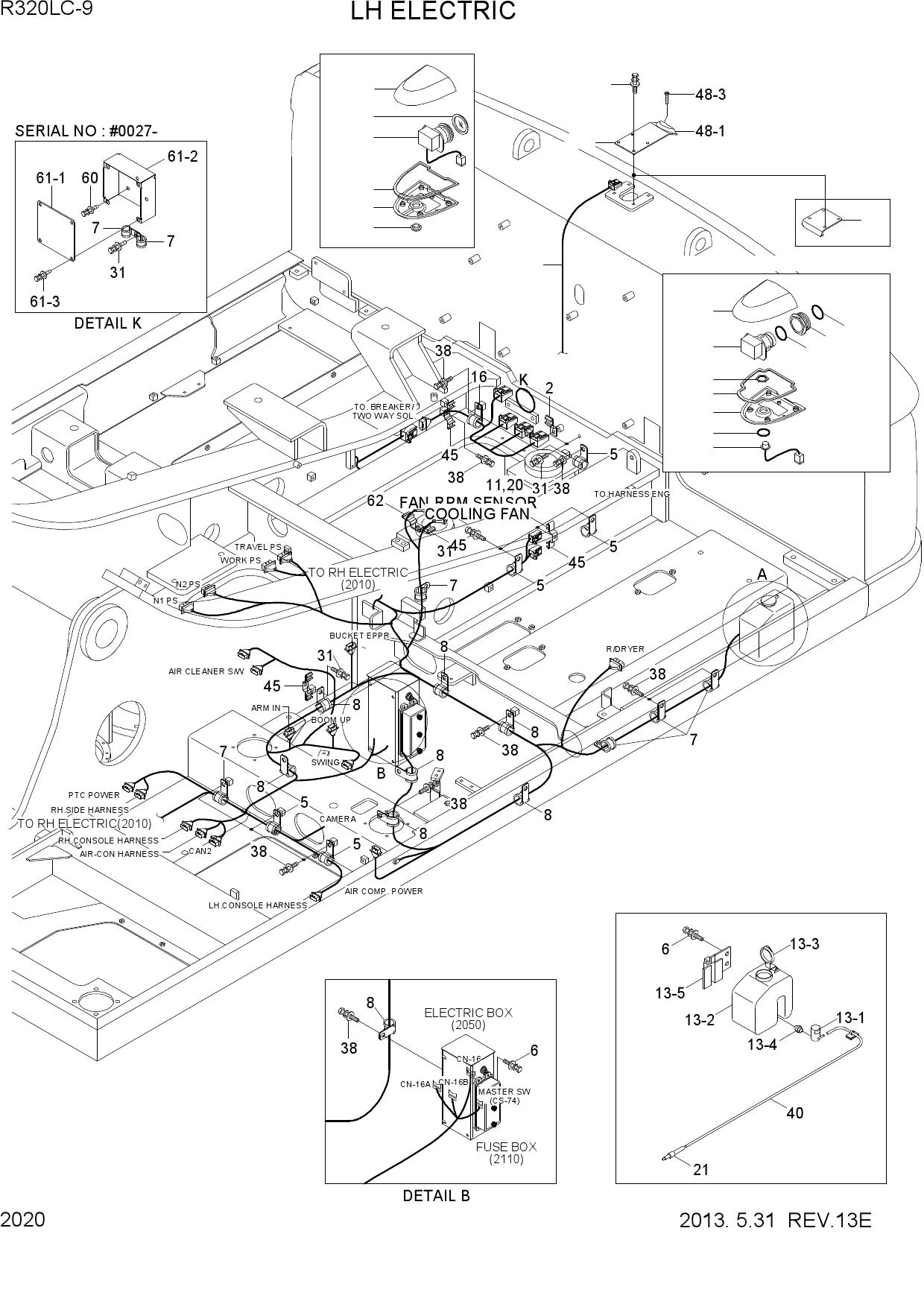

Запчасти для гусеничных экскаваторов Hyundai R320LC-9 LH ELECTRIC
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 25D1-10640 | CLIP ASSY | |
| 5 | 31L7-10200 | CLAMP-TUBE | |
| 6 | S035-062026 | BOLT-W/WASHER | |
| 7 | 31L7-10190 | CLAMP-TUBE | |
| 7 | 31L7-10190 | CLAMP-TUBE | |
| 8 | 31L7-10230 | CLAMP | |
| 11 | 21Q8-11130 | HARNESS-BREAKER | |
| 13 | 21EG-30630 | WASHER TANK ASSY | |
| 13-1 | 21EG-10130 | PUMP-MOTOR | |
| 13-2 | 21EG-10140 | TANK | |
| 13-3 | 24L3-30660 | CAP | |
| 13-4 | 24L3-30670 | RUBBER-BUSHING | |
| 13-5 | 24L3-30710 | PLATE | |
| 16 | 21E9-00170 | CLIP-HARNESS | |
| 20 | 21Q8-11110 | HARNESS-TWO WAY | |
| 21 | 21EM-30570 | CONNECTOR-TUBE | |
| 31 | S037-102026 | BOLT-W/WASHER | |
| 31 | S037-102026 | BOLT-W/WASHER | |
| 38 | S037-101526 | BOLT-W/WASHER | |
| 40 | 21EM-30581 | HOSE-RUBBER | |
| 45 | 21N4-01130 | PLATE-CLIP | |
| 45 | 21N4-01130 | PLATE-CLIP | |
| 47 | 21Q6-11142 | HARNESS-CAMERA | |
| 48 | 21Q6-60100 | REAR VIEW CAMERA KIT | |
| 48 | 21Q6-60102 | REAR VIEW CAMERA KIT | |
| 48 | 21Q6-60103 | REAR VIEW CAMERA KIT ASSY | |
| 48-1 | 21AB-30031 | CAMERA ASSY-REAR | |
| 48-1 | 21AB-30032 | CAMERA ASSY-REAR | |
| 48-1 | 21AB-30033 | CAMERA ASSY-REAR | |
| N48-11 | 21AB-40100 | DOME-HOUSING | |
| N48-11 | 21AB-30110 | COVER-TOP | |
| N48-11 | 21AB-40110 | COVER-TOP | |
| N48-12 | 21AB-40200 | BASE-HOUSING | |
| N48-12 | 21AB-30120 | COVER-BOTTOM | |
| N48-13 | 21AB-40300 | CAMERA & PCB ASSY | |
| N48-13 | 21AB-30130 | CAMERA & PCB ASSY | |
| N48-13 | 21AB-30131 | CAMERA & PCB ASSY | |
| N48-14 | 21AB-40400 | SEAL | |
| N48-14 | 21AB-30140 | GASKET | |
| N48-15 | 21AB-40500 | WINDOW | |
| N48-15 | 21AB-30150 | LENS-WINDOW | |
| N48-16 | 21AB-40600 | GROMMET | |
| N48-16 | 21AB-30160 | O-RING/LENS WINDOW | |
| N48-17 | 21AB-30170 | O-RING-CAM | |
| N48-18 | 21AB-30180 | NUT-VOLUME | |
| N48-19 | 21AB-30190 | O-RING | |
| N48-20 | 21AB-30210 | CABLE ASSY | |
| 49 | 21Q6-60030 | PLATE | |
| 48-2 | 21AB-50011 | BRACKET-CAMERA | |
| 48-3 | S141-050102 | SCREW-FLAT HD | |
| 60 | S037-101556 | BOLT-W/WASHER | |
| 61 | 21Q4-91040 | COVER ASSY | |
| 61 | 21Q4-91041 | COVER ASSY | |
| 61-1 | 21Q4-91070 | COVER | |
| 61-1 | 21Q4-91071 | COVER | |
| 61-2 | 21Q4-91050 | PLATE | |
| 61-2 | 21Q4-91051 | PLATE | |
| 61-3 | S035-081526 | BOLT-W/WASHER | |
| 62 | 21N4-01111 | CLIP-ECONO SEAL |
