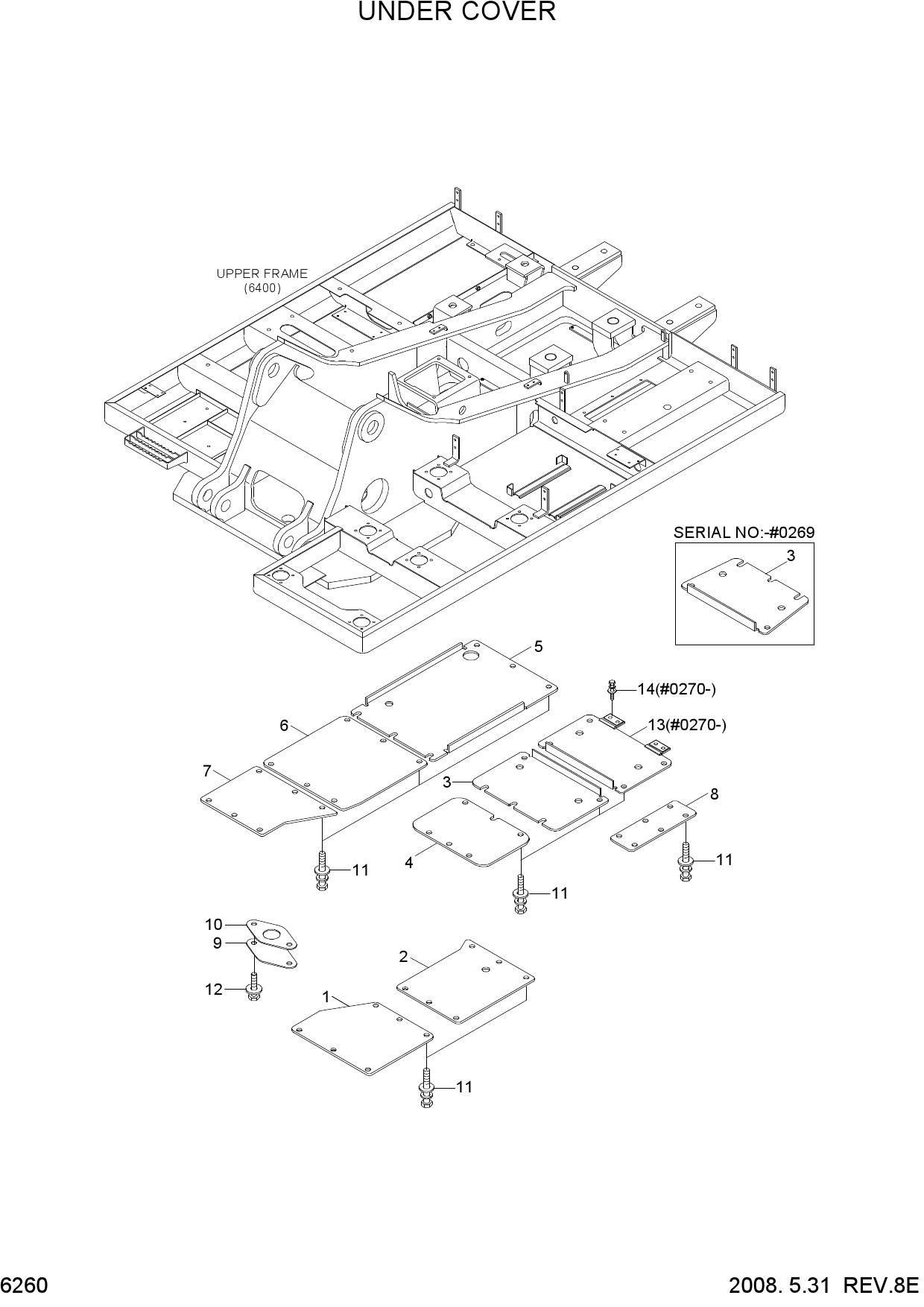

Запчасти для гусеничных экскаваторов Hyundai R320LC-7A UNDER COVER
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 41N9-15231 | UNDER COVER-CAB,A | |
| 1 | 41N9-15231BG | UNDER COVER-CAB,A | |
| 2 | 41N8-15222 | UNDER COVER-CAB,B | |
| 2 | 41N8-15222BG | UNDER COVER-CAB,B | |
| 3 | 41N9-15211 | UNDER COVER-ENGINE | |
| 3 | 41N9-15211BG | UNDER COVER-ENG | |
| 3 | 41N9-15211BG | UNDER COVER-ENG | |
| 4 | 41N8-15242 | UNDER COVER-MCV | |
| 4 | 41N8-15242BG | UNDER COVER-MCV | |
| 5 | 41N9-15220 | UNDER COVER-PUMP | |
| 5 | 41N9-15220BG | UNDER COVER-PUMP | |
| 6 | 41N8-15261 | UNDER COVER-HYD | |
| 6 | 41N8-15261BG | UNDER COVER-HYD | |
| 7 | 41N8-15270 | UNDER COVER-FUEL | |
| 7 | 41N8-15270BG | UNDER COVER-FUEL | |
| 8 | 41N8-15280 | UNDER COVER-RAD | |
| 8 | 41N8-15280BG | UNDER COVER-RADIATOR | |
| 9 | 41N6-10100 | COVER | |
| 10 | 41E9-1306 | SEAL | |
| 11 | S037-102566 | BOLT-W/WASHER | |
| 11 | S037-102566 | BOLT-W/WASHER | |
| 12 | S037-102056 | BOLT-W/WASHER | |
| 12 | S037-102556 | BOLT-W/WASHER | |
| 13 | 41N9-15300BG | UNDER COVER WA-ENG | |
| 14 | S037-103056 | BOLT-W/WASHER |
