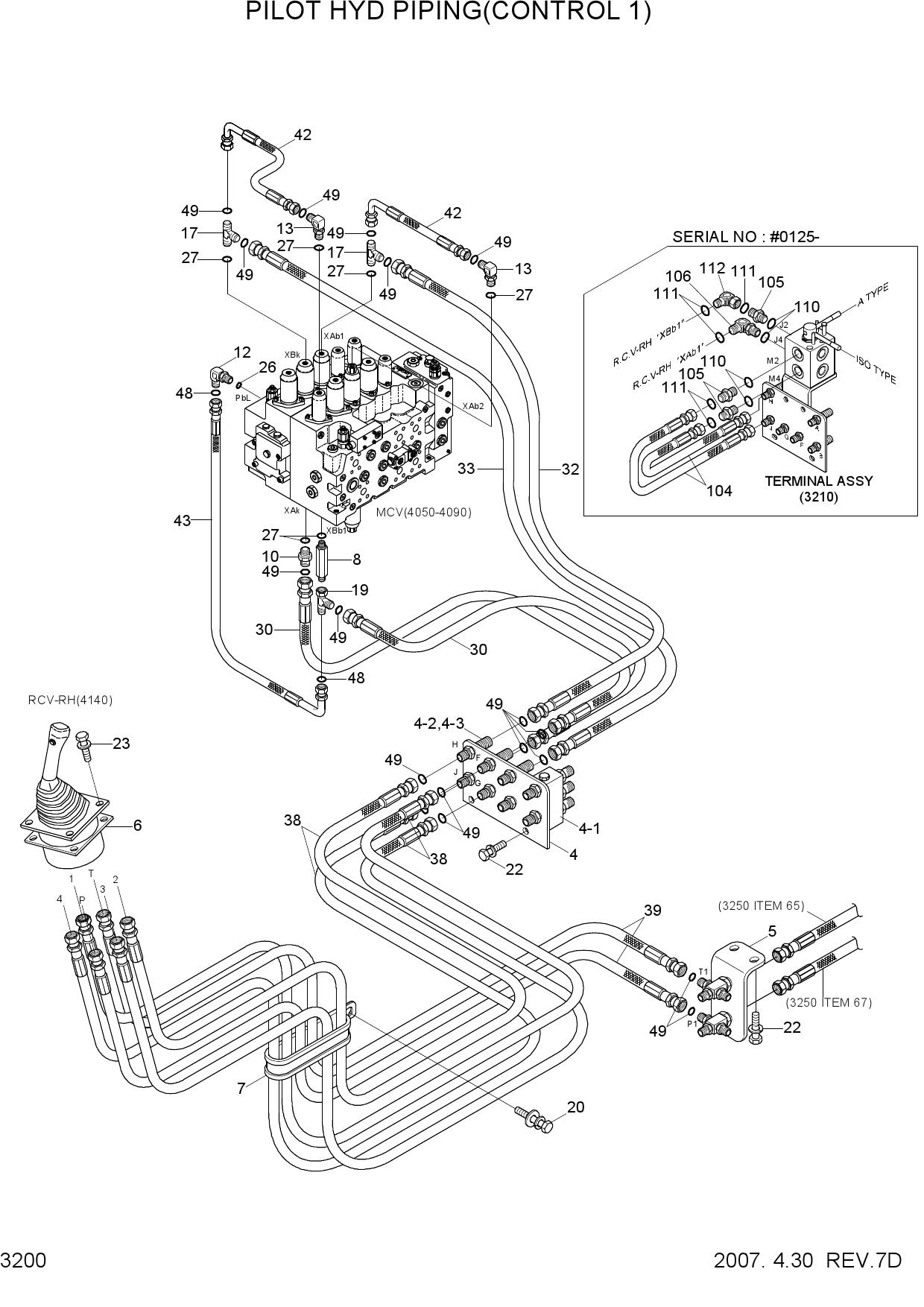

Запчасти для гусеничных экскаваторов Hyundai R320LC-7A PILOT HYD PIPING(CONTROL 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 31N8-24010 | TERMINAL ASSY-C | |
| 4-1 | 31N8-24030 | SHUTTLE-5 PORT | |
| 4-2 | X540-120002 | CONNECTOR-ORFS | |
| 4-3 | S621-120001 | O-RING | |
| 5 | 31NB-20022 | CROSS ASSY | |
| 6 | 31M6-51061 | SHIM(3.2T) | |
| 7 | 31E7-0310 | CLAMP-HOSE | |
| 8 | 31N6-22370 | VALVE-SHOCKLESS | |
| 10 | X500-110002 | CONNECTOR-ORFS | |
| 12 | X520-110001 | ELBOW-90,ORFS | |
| 13 | X520-110002 | ELBOW-90,ORFS | |
| 17 | X820-065252 | TEE-R/TYPE,ORFS | |
| 19 | X840-525251 | TEE-R/TYPE,SWIVEL,ORFS | |
| 20 | S037-102026 | BOLT-W/WASHER | |
| 22 | S037-102526 | BOLT-W/WASHER | |
| 23 | S035-063046 | BOLT-W/WASHER | |
| 26 | S631-011004 | O-RING | |
| 27 | S631-014004 | O-RING | |
| 30 | X400-062033 | HOSE ASSY-SYNFLEX,ORFS | |
| 32 | X400-062038 | HOSE ASSY-SYNF,ORFS | |
| 33 | X400-062039 | HOSE ASSY-SYNF ORFS | |
| 38 | X410-062041 | HOSE ASSY-ORFS 0X45 | |
| 39 | P920-062028 | HOSE ASSY-ORFS 0X45 | |
| 42 | X420-062014 | HOSE ASSY-SYNFLEX,ORFS | |
| 43 | X420-042016 | HOSE ASSY-SYNFLEX,ORFS | |
| 48 | S621-011001 | O-RING | |
| 49 | S621-012001 | O-RING | |
| 104 | P910-062008 | HOSE ASSY-ORFS 0X0 | |
| 105 | X500-110011 | CONNECTOR-ORFS | |
| 106 | X520-110011 | ELBOW-90,ORFS | |
| 110 | S631-011004 | O-RING | |
| 111 | S621-012001 | O-RING | |
| 112 | X850-525200 | ELBOW-90,SWIVEL,ORFS |
