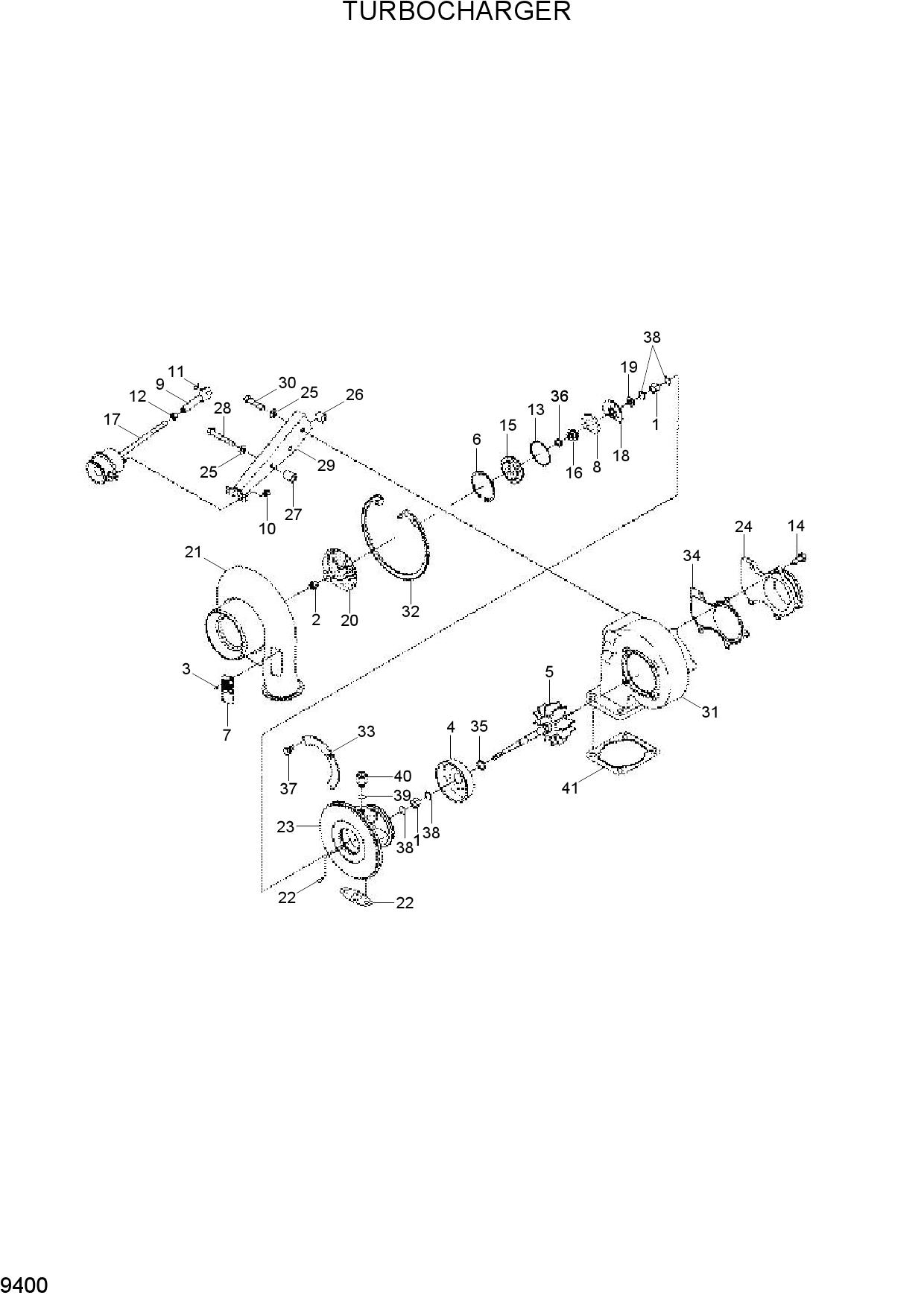

Запчасти для гусеничных экскаваторов Hyundai R305LC-7 TURBOCHARGER
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 3535620 | TURBOCHARGER | |
| * | 3535617 | TURBOCHARGER | |
| 1 | 3503100 | BEARING-TURBO | |
| 2 | 3596402 | NUT-LOCK | |
| 3 | 3519163 | SCREW-DRIVE | |
| 4 | 3519302 | SHIELD | |
| 5 | 3522879 | SHAFT & WHEEL | |
| 6 | 3527566 | RING-RETAINING | |
| N7 | 3527619 | DATAPLATE | |
| 8 | 3528104 | BAFFLE-OIL | |
| 9 | 3528177 | END-ADJUSTING LINK | |
| 10 | 3592050 | NUT-HEX FLANGE | |
| 11 | 3528221 | RING-RETAING | |
| N12 | 3528414 | NUT | |
| 13 | 3528933 | SEAL/O-RING | |
| 14 | 3530556 | SCREW | |
| 15 | 3530923 | PLATE-OIL SEAL | |
| 16 | 3530924 | SLINGER-OIL | |
| N17 | 3593678 | ACTUATOR | |
| 18 | 3595651 | BEARING-TUR THRUST | |
| 19 | 3532217 | COLLAR | |
| N20 | 3599592 | IMPELLER | |
| 21 | 3535811 | HOUSING-COMPRESSOR | |
| 22 | 3522597 | PIN-ROLL | |
| 23 | 3532631 | HOUSING | |
| 24 | 3528010 | CONNECTION | |
| 25 | 3504967 | WASHER-PLAIN | |
| 26 | 3532195 | SPACER-MOUNTING | |
| 27 | 3532196 | SPACER-MOUNTING | |
| 28 | 3539209 | SCREW-HEX HD SET | |
| 29 | 3533328 | BRACKET-ACTUATOR | |
| 30 | 3534291 | SCREW-HEX HD SET | |
| N31 | 3598205 | HOUSING-TURBINE | |
| 32 | 3533163 | RING-RETAINING | |
| 33 | 3534309 | PLATE-CLAMPING | |
| 34 | 3535243 | GASKET-ADAPTER | |
| 35 | 3756754 | SEAL-SPLIT RING | |
| 36 | 3758848 | SEAL-SPLIT RING | |
| 37 | 3759917 | SCREW | |
| 38 | 3762259 | RING-RETAINING | |
| 39 | 3037236 | SEAL/O-RING | |
| 40 | 3920801 | CONNECTOR | |
| 41 | 3755843 | GASKET-TURBO | |
| 42 | 3519807 | GASKET-OIL DRAIN |
