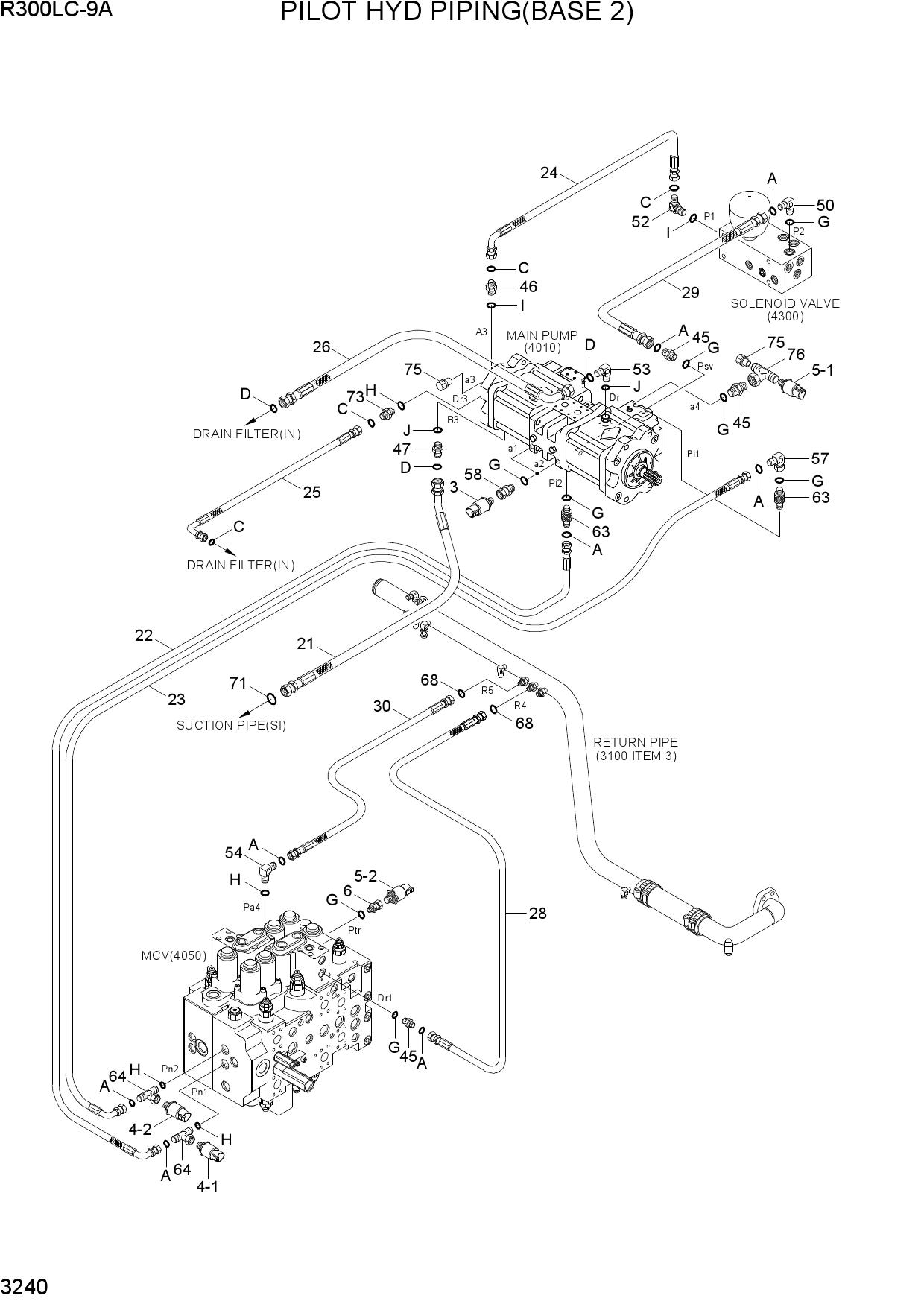

Запчасти для гусеничных экскаваторов Hyundai R300LC-9A PILOT HYD PIPING(BASE 2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 31Q4-40600 | SENSOR-PRESSURE | |
| 4-1 | 31Q4-40610 | SENSOR-PRESSURE | |
| 4-2 | 31Q4-40610 | SENSOR-PRESSURE | |
| 5-1 | 31Q4-40620 | SENSOR-PRESSURE | |
| 5-2 | 31Q4-40620 | SENSOR-PRESSURE | |
| 6 | 31E5-11110 | ADAPTER | |
| 21 | P920-122013 | HOSE ASSY-ORFS 0X45 | |
| 22 | P930-043051 | HOSE ASSY-ORFS 0X90 | |
| 23 | P930-043060 | HOSE ASSY-ORFS 0X90 | |
| 24 | P930-082013 | HOSE ASSY-ORFS 0X90 | |
| 25 | P930-082016 | HOSE ASSY-ORFS 0X90 | |
| 26 | P930-122015 | HOSE ASSY-ORFS 0X90 | |
| 28 | X400-042007 | HOSE ASSY-SYNFLEX,ORFS | |
| 29 | P910-042009 | HOSE ASSY-ORFS 0X0 | |
| 30 | X400-042010 | HOSE ASSY-ORFS 0X0 | |
| 45 | X500-110001 | CONNECTOR-ORFS | |
| 46 | X500-110003 | CONNECTOR-ORFS | |
| 47 | X500-110004 | CONNECTOR-ORFS | |
| 50 | X520-110001 | ELBOW-90,ORFS | |
| 52 | X520-110003 | ELBOW-90,ORFS | |
| 53 | X520-110004 | ELBOW-90,ORFS | |
| 54 | X520-110012 | ELBOW-90,ORFS | |
| 57 | X850-515100 | ELBOW-90,SWIVEL,ORFS | |
| 58 | 31E9-22120 | CONNECTOR | |
| 63 | 31N6-25060 | FILTER-LAST GUARD | |
| 64 | 31Q8-21100 | TEE-R/TYPE,ORFS | |
| 68 | S621-011001 | O-RING | |
| 71 | S621-018001 | O-RING | |
| 73 | X500-110012 | CONNECTOR-ORFS | |
| 75 | 31EK-11130 | COUPLING-SCREW | |
| 76 | 31Q4-20170 | TEE-TEST PORT | |
| A | S621-011001 | O-RING | |
| C | S621-014001 | O-RING | |
| D | S621-018001 | O-RING | |
| G | S631-011004 | O-RING | |
| H | S631-014004 | O-RING | |
| I | S631-018004 | O-RING | |
| J | S631-024004 | O-RING |
