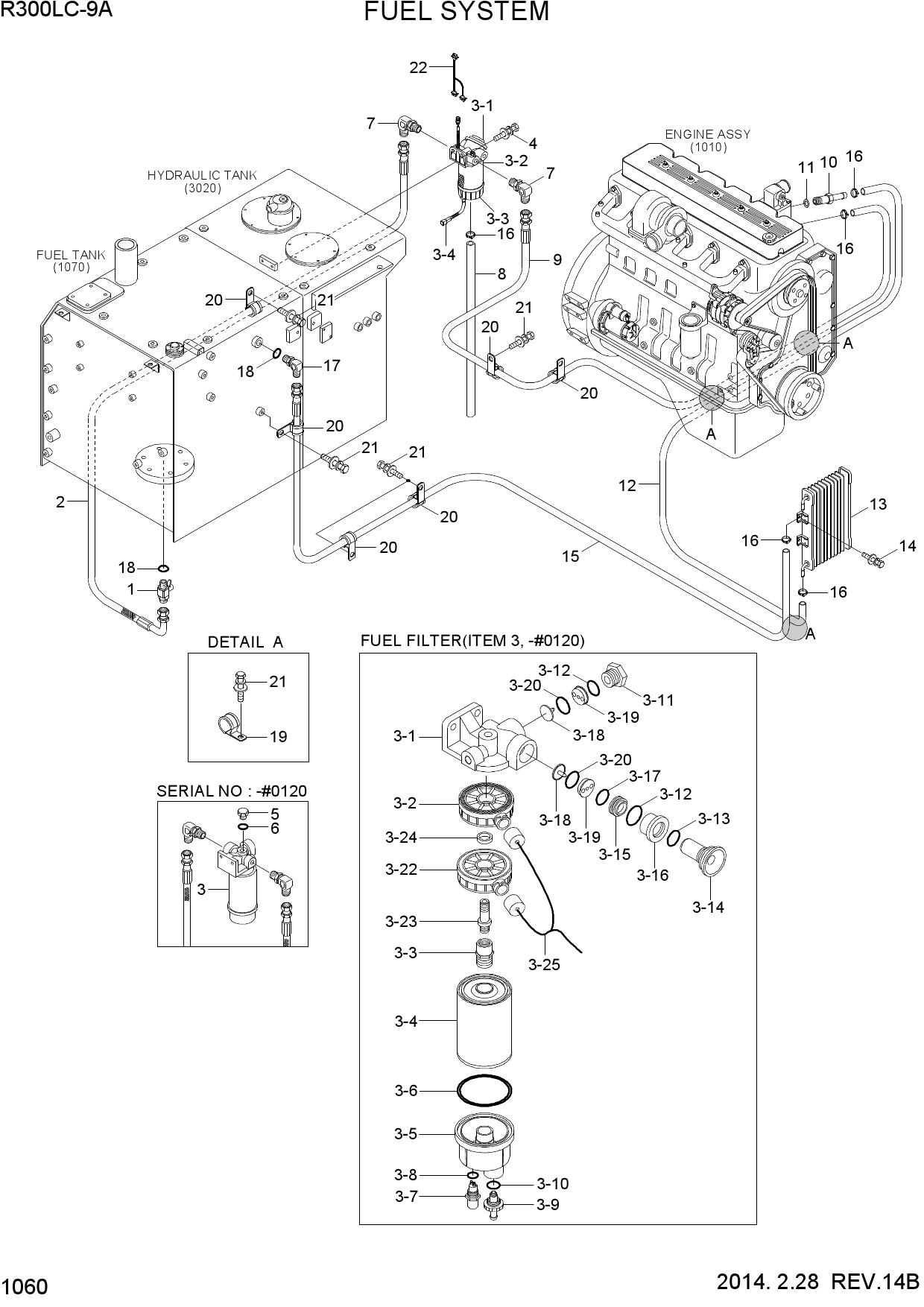

Запчасти для гусеничных экскаваторов Hyundai R300LC-9A FUEL SYSTEM
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 11Q4-50010 | VALVE-FUEL CUT | |
| 2 | 11EG-52011 | HOSE-FUEL | |
| 3 | 11NA-73000 | FUEL FILTER & W/S ASSY | |
| 3 | 11NA-71001 | FUEL FILTER & W/S ASSY | |
| 3-1 | 11NA-71010 | HEAD-FILTER | |
| 3-2 | 11NA-71020 | HEATER-FUEL | |
| 3-3 | 11NA-71030 | CONNECTOR | |
| 3-4 | 11NA-71041 | ELEMENT ASSY | |
| 3-5 | 11NA-71050 | BOWL-CLEAR | |
| 3-6 | 11NA-71060 | O-RING | |
| 3-7 | 11NA-71070 | SENSOR | |
| 3-8 | 11NA-71080 | O-RING | |
| 3-9 | 11NA-71090 | VALVE-SCREW | |
| 3-10 | 11NA-71100 | O-RING | |
| N3-11 | 11NA-71110 | PLUG-SCREW | |
| N3-12 | 11NA-71120 | O-RING | |
| N3-13 | 11NA-71130 | O-RING | |
| N3-14 | 11NA-71140 | PUMP-BODY PRIMING | |
| N3-15 | 11NA-71150 | PUMP-HEAD | |
| N3-16 | 11NA-71160 | HOLDER | |
| N3-17 | 11NA-71170 | O-RING | |
| N3-18 | 11NA-71180 | PLATE-VALVE | |
| N3-19 | 11NA-71190 | FRAME-VALVE | |
| N3-20 | 11NA-71200 | O-RING | |
| 3-22 | 11NA-71020 | HEATER-FUEL | |
| 3-23 | 11Q6-50110 | SPACER | |
| 3-24 | 11Q6-50110 | SPACER | |
| 3-25 | 21Q8-23200 | HARNESS-FUEL WARMER | |
| 3 | 11QA-71000 | FUEL FILTER ASSY | |
| 3 | 11QA-73000 | FUEL FILTER ASSY | |
| 3-1 | 11QA-71010 | HEAD ASSY | |
| 3-2 | 11QA-71040 | ELEMENT ASSY | |
| 3-3 | 11QA-71050 | BOWL ASSY | |
| 3-3 | 11QA-71030 | BOWL ASSY | |
| 3-4 | 11QA-71020 | WIF SENSOR ASSY | |
| 4 | S037-103026 | BOLT-W/WASHER | |
| 5 | P210-101400 | PLUG-HEX | |
| 6 | Y161-014001 | O-RING | |
| 7 | 11N8-50060 | ELBOW-90 | |
| 8 | 11M8-50030 | HOSE ASSY | |
| 9 | 11N8-57060 | HOSE-FUEL | |
| 10 | 11ND-40170 | CONNECTOR | |
| 11 | P392-120000 | WASHER-COPPER | |
| 12 | 11Q8-53010 | HOSE-FUEL | |
| 13 | 11QB-41041 | COOLER-FUEL | |
| 14 | S035-082026 | BOLT-W/WASHER | |
| 15 | 11Q6-50050 | HOSE-FUEL | |
| 16 | S520-017000 | CLAMP-HOSE | |
| 17 | P020-110003 | ELBOW-90 | |
| 18 | S631-018004 | O-RING | |
| 19 | 31L7-10210 | CLAMP-TUBE INS | |
| 19 | 31L7-10210 | CLAMP-TUBE INS | |
| 20 | 31L7-10340 | CLAMP-TUBE INS | |
| 21 | S037-101526 | BOLT-W/WASHER | |
| 21 | S037-101526 | BOLT-W/WASHER | |
| 22 | 21QB-23500 | HARNESS FUEL WARMER |
