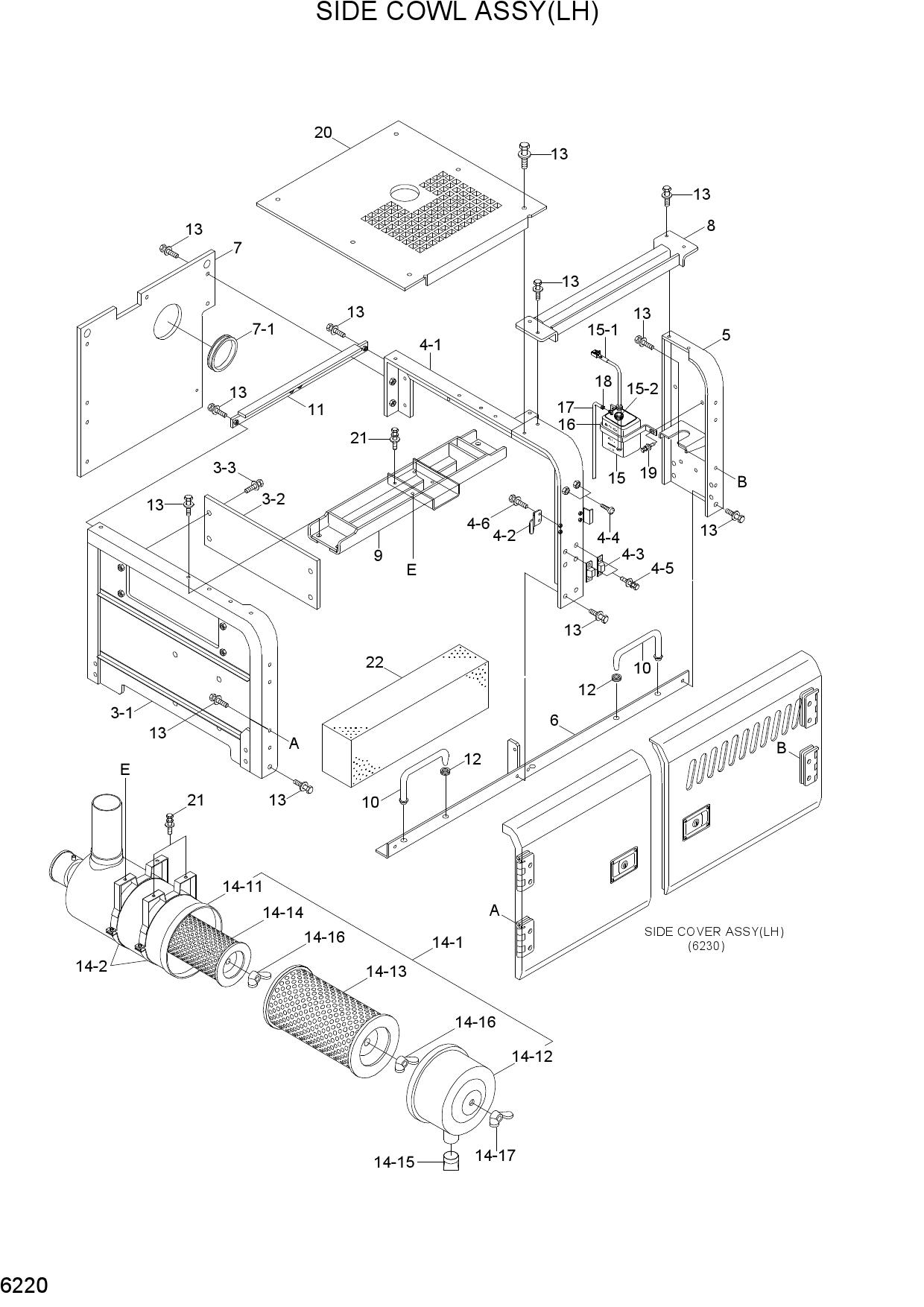

Запчасти для гусеничных экскаваторов Hyundai R300LC-7 SIDE COWL ASSY(LH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 72N8-72002 | SIDE COWL ASSY-LH | |
| 3 | 71N8-62300 | SUPPORT ASSY-LH,FR | |
| 3-1 | 71N8-62310 | SUPPORT WA-LH,FR | |
| 3-2 | 71N8-52322 | COVER-PLATE | |
| 3-3 | S037-122556 | BOLT-W/WASHER | |
| 4 | 72N8-62402 | SUPPORT ASSY-LH,M | |
| 4-1 | 72N8-62412 | SUPPORT WA-LH,M | |
| 4-2 | 71N8-52492 | PLATE-LOCK | |
| 4-3 | 71EE-53540 | STOPPER-B | |
| 4-4 | 71EH-13150 | BUMPER-RUBBER | |
| 4-5 | S035-062026 | BOLT-W/WASHER | |
| 4-6 | S037-122056 | BOLT-W/WASHER | |
| 5 | 72N8-62500 | SUPPORT WA-L/R | |
| 6 | 71N9-52601 | BASE PLATE WA-LH | |
| 7 | 72N8-62701 | SCREEN-MCV | |
| 7-1 | S791-030054 | GROMMET-PLATE | |
| 8 | 72N8-62800 | SUPPORT WA-LH/TOP | |
| 9 | 72N8-62902 | BRACKET-A/CLEANER | |
| 10 | 71N8-52950 | STAY-SIDE COVER | |
| 11 | 72N8-62983 | SUPPORT WA-MCV HOOD | |
| 12 | S681-100400 | GROMMET | |
| 13 | S037-122556 | BOLT-W/WASHER | |
| 14 | 11N8-22100 | AIR CLEANER&CLAMP | |
| 14-1 | 11N8-22110 | AIR CLEANER ASSY | |
| 14-11 | 11N8-22120 | HOUSING | |
| 14-12 | 11N8-22130 | CAP WA | |
| 14-13 | 11N8-22140 | ELEMENT-OUTER | |
| 14-14 | 11N8-22150 | ELEMENT-INNER | |
| 14-15 | E211-2105 | VALVE-VACUUM | |
| 14-16 | 11EM-21060 | NUT-WING | |
| 14-17 | 11EM-21070 | NUT-WING | |
| 14-2 | 11L1-2005 | CLAMP ASSY | |
| 15 | 11N8-41070 | TANK-RESERVOIR | |
| 15-1 | 11EN-42400 | SENSOR-RESERVOIR | |
| 15-2 | MH100020 | CAP-RESERVOIR TANK | |
| 16 | 11N8-41080 | CLAMP-RESERVOIR TANK | |
| 17 | E111-2504 | HOSE | |
| 18 | S520-015000 | CLAMP-HOSE,S/DRIVE | |
| 19 | S035-082026 | BOLT-W/WASHER | |
| 20 | 72N8-65101 | HOOD WA-A/C | |
| 20 | 72N8-65102 | HOOD WA-A/C | |
| 21 | S037-102526 | BOLT-W/WASHER | |
| 22 | 72N8-66300 | SPONGE-A/SCREEN |
