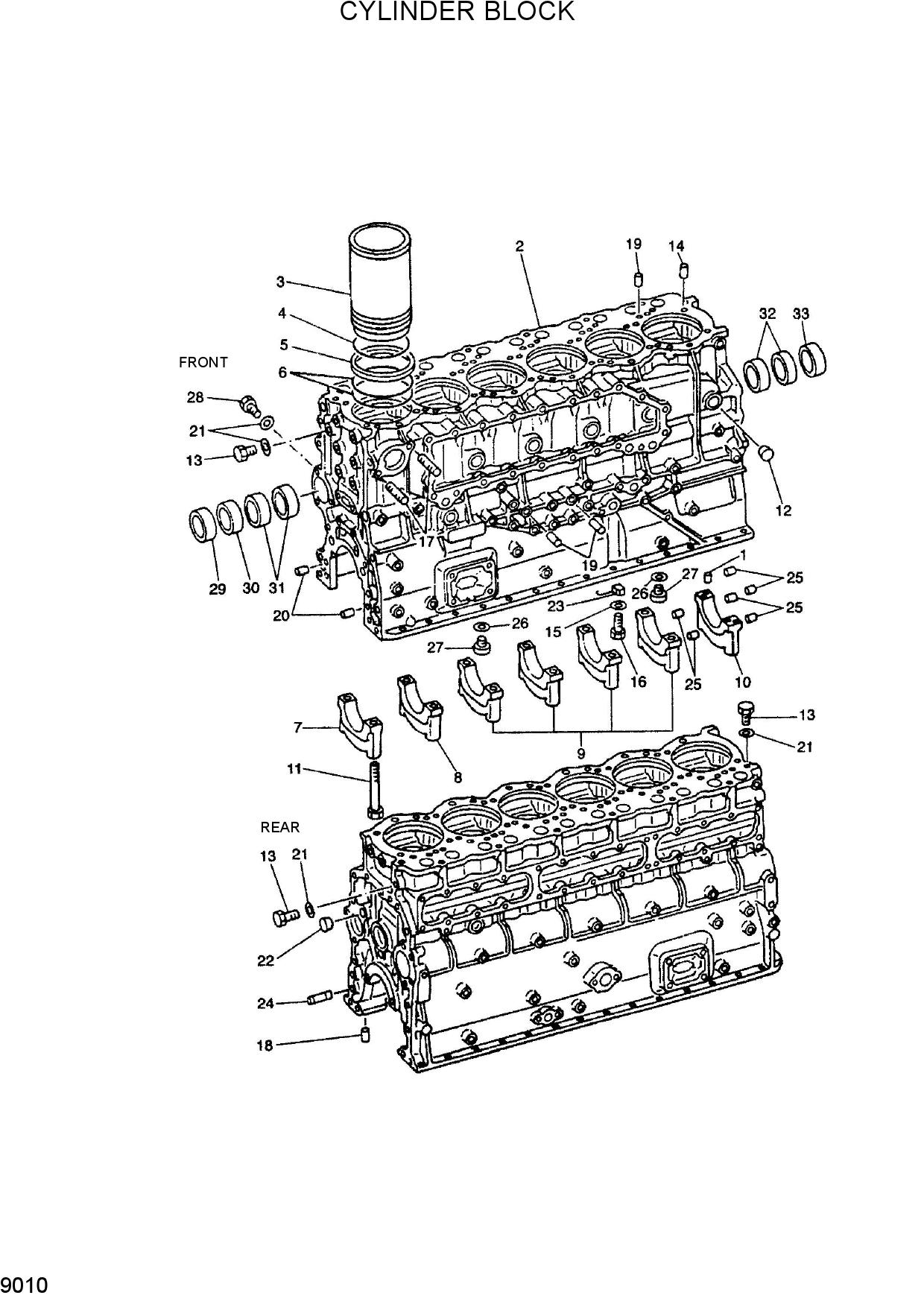

Запчасти для гусеничных экскаваторов Hyundai R290LC7H CYLINDER BLOCK
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 21101-83013 | CRANK CASE ASSY | |
| 1 | 21135-72001 | PIN-DOWEL | |
| 2 | 21111-83012 | CRANK CASE | |
| 3 | 21131-83002 | LINER-CYLINDER | |
| 4 | 21193-83002 | O-RING | |
| 5 | 21138-83000 | PACKING-RUBBER | |
| 6 | 21139-83001 | PACKING-RUBBER | |
| 7 | 21112-830002 | CAP-BEARING,FRONT | |
| 8 | 21117-830002 | CAP-BEARING, NO2 | |
| 9 | 21113-830002 | CAP-BEARING,MIDDLE | |
| 10 | 21118-830002 | CAP-BEARING,REAR | |
| 11 | 21114-83000 | BOLT | |
| 12 | 15733-25000 | CAP-SEALING | |
| 13 | 21194-83000 | PLUG | |
| 14 | 21195-83000 | PLUG | |
| 15 | 21196-83000 | WASHER-LOCK | |
| 16 | 21140-83002 | VALVE-CHECK | |
| 17 | 11545-10301 | STUD | |
| 18 | 14303-08180 | PIN-DOWEL | |
| 19 | 14303-10200 | PIN-DOWEL | |
| 20 | 14303-12240 | PIN-DOWEL | |
| 21 | 17512-10000 | GASKET | |
| 22 | 15732-28001 | CAP-SEALING | |
| 23 | 21151-83800 | BODY-OIL JET | |
| 24 | 21192-72000 | PIN-DOWEL | |
| 25 | 24622-72000 | PIN-DOWEL | |
| 26 | 21195-72000 | GASKET | |
| 27 | 21188-72000 | PLUG-SCREW | |
| 28 | 21186-83000 | SCREW-SET | |
| 29 | 21181-83000 | BUSHING-CAM SHAFT | |
| 30 | 21182-83000 | BUSHING-CAM SHAFT | |
| 31 | 21183-83000 | BUSHING-CAM SHAFT | |
| 32 | 21184-83000 | BUSHING-CAM SHAFT | |
| 33 | 21185-83000 | BUSHING-CAM SHAFT |
