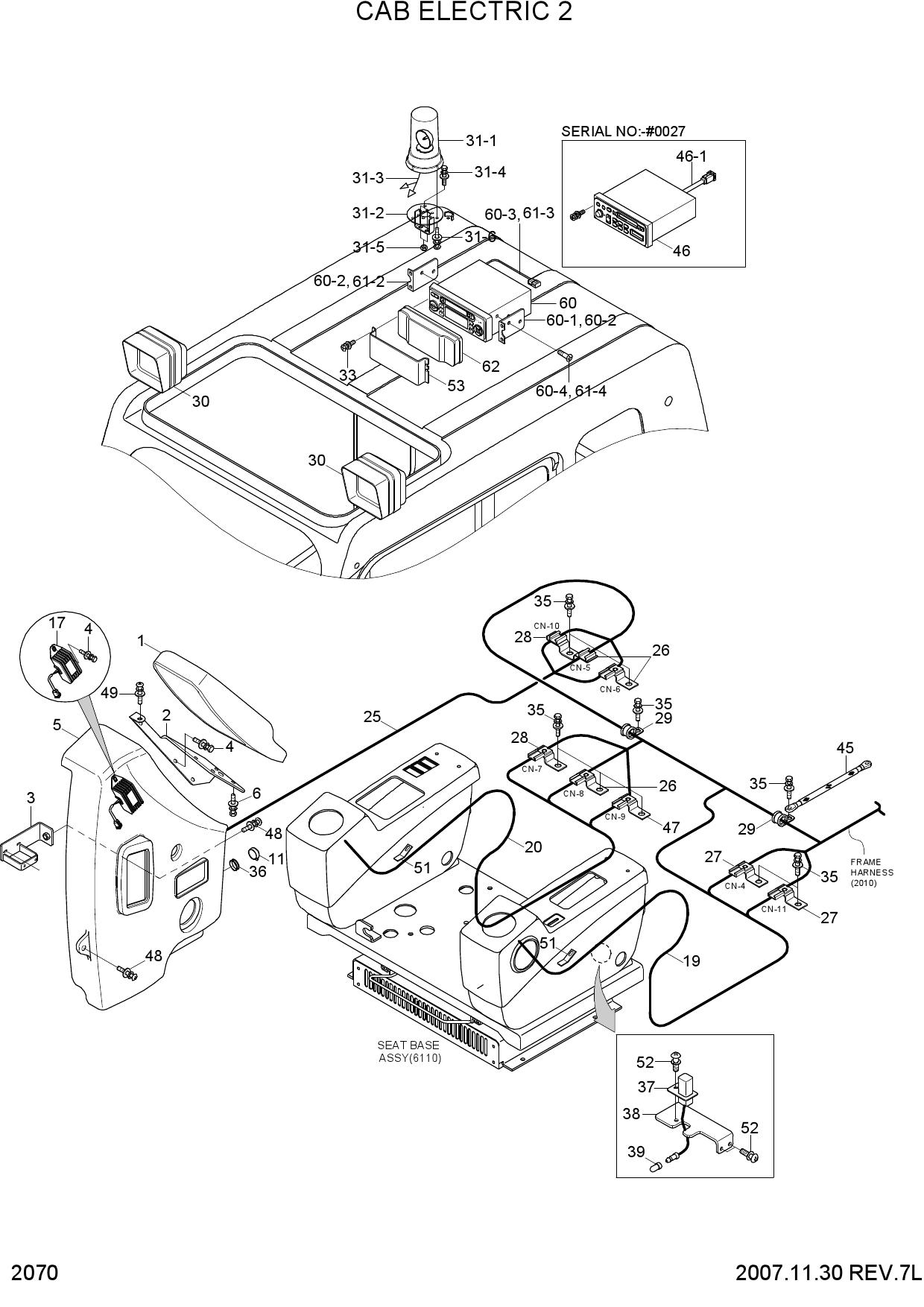

Запчасти для гусеничных экскаваторов Hyundai R290LC7H CAB ELECTRIC 2
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 21N8-21011 | BRACKET WA | |
| 3 | 21N8-21070 | BRACKET WA | |
| 4 | S035-061622 | BOLT-W/WASHER | |
| 5 | 21N8-21021 | COVER-WIPER MOTOR | |
| 6 | S035-081622 | BOLT-W/WASHER | |
| 11 | 21N8-20010 | SOCKET-12V | |
| 17 | 21N8-20201 | DC-DC CONVERTER ASSY | |
| 19 | 21N8-11160 | HARNESS-CONSOLE | |
| 20 | 21N8-10053 | HARNESS-LH,WIRE | |
| 25 | 21N8-10084 | HARNESS-SIDE,RH | |
| 26 | 25D1-10650 | CLIP ASSY | |
| 27 | 25D1-10660 | CLIP ASSY | |
| 28 | 25D1-10640 | CLIP ASSY | |
| 29 | S543-280003 | CLAMP-TUBE | |
| 30 | 21N6-20210 | WORK LAMP ASSY | |
| 31-1 | 21EK-10140 | BEACON LAMP | |
| 31-11 | 21EK-10330 | BULB-H1, 70W | |
| 31-2 | 21N8-00581 | BRACKET-BEACON LAMP | |
| 31-3 | 21EK-20240 | HARNESS-BEACON LAMP | |
| 31-4 | S037-102026 | BOLT-W/WASHER | |
| 31-5 | S205-101006 | NUT-HEX | |
| 31-6 | S131-051546 | SCREW-W/WASHER | |
| 33 | S131-051046 | SCREW-W/WASHER | |
| 35 | S037-102022 | BOLT-W/WASHER | |
| 36 | S661-260300 | CAP-RUBBER | |
| 37 | 21M5-50250 | SWITCH ASSY | |
| 38 | 21N8-21080 | PLATE | |
| 39 | S890-107508 | TUBE-PVC | |
| 45 | 21EH-30720 | STRAP-EARTH | |
| 46 | 21N8-22030 | CASSETTE RADIO | |
| 46-1 | 375500043204 | WIRE ASSY-20 H818 | |
| 47 | 25D1-10670 | CLIP | |
| 48 | S132-061676 | SCREW-W/WASHER | |
| 49 | S132-061646 | SCREW-W/WASHER | |
| 51 | S591-000802 | CLIP-HARNESS | |
| 52 | S161-040106 | SCREW-CROSS R/ROUND | |
| 53 | 21N6-10450 | PLATE-C/RADIO COVER | |
| N60 | 21N8-50010 | CASSETTE RADIO ASSY | |
| 60-1 | 21N6-10480 | BRACKET-LH | |
| 60-2 | 21N6-10490 | BRACKET-RH | |
| 60-3 | 21N8-01600 | HARNESS-EXT WIRE | |
| 60-4 | S141-050102 | SCREW-FLAT HD | |
| 61 | 21N8-40500 | CD PLAYER ASSY | |
| 61-1 | 21N6-10480 | BRACKET-LH | |
| 61-2 | 21N6-10490 | BRACKET-RH | |
| 61-3 | 21N8-01600 | HARNESS-EXT WIRE | |
| 61-4 | S141-050102 | SCREW-FLAT HD | |
| 62 | 21N8-40940 | COVER-DUST |
