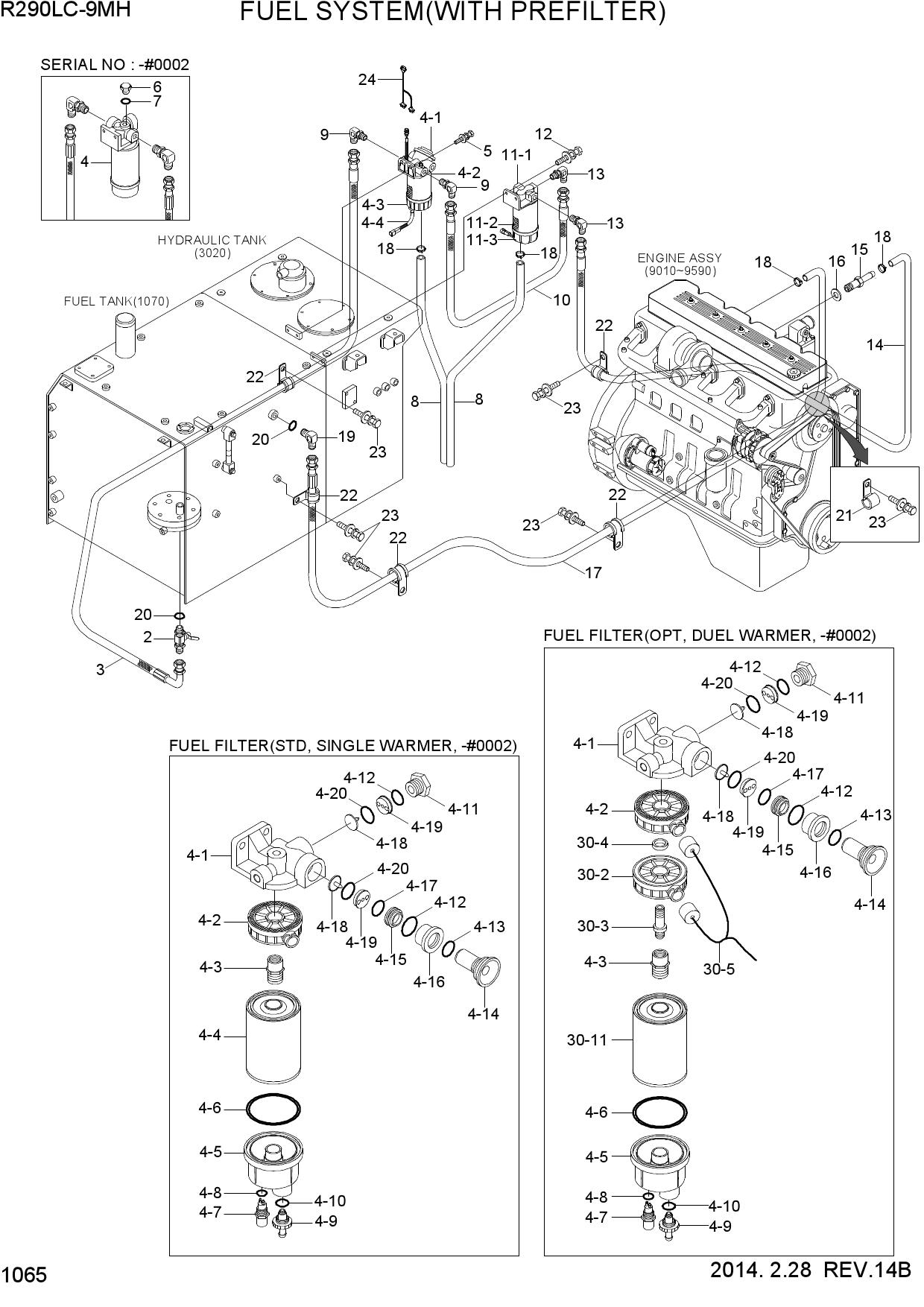

Запчасти для гусеничных экскаваторов Hyundai R290LC-9MH FUEL SYSTEM(WITH PREFILTER)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 11Q4-50010 | VALVE-FUEL CUT | |
| 3 | 11EG-52011 | HOSE-FUEL | |
| 4 | 11NA-71000 | FUEL FILTER & W/S ASSY | |
| 4-1 | 11NA-71010 | HEAD-FILTER | |
| 4-2 | 11NA-71020 | HEATER-FUEL | |
| 4-3 | 11NA-71030 | CONNECTOR | |
| 4-4 | 11NA-71040 | ELEMENT ASSY | |
| 4-5 | 11NA-71050 | BOWL-CLEAR | |
| 4-6 | 11NA-71060 | O-RING | |
| 4-7 | 11NA-71070 | SENSOR | |
| 4-8 | 11NA-71080 | O-RING | |
| 4-9 | 11NA-71090 | VALVE-SCREW | |
| 4-10 | 11NA-71100 | O-RING | |
| N4-11 | 11NA-71110 | PLUG-SCREW | |
| N4-12 | 11NA-71120 | O-RING | |
| N4-13 | 11NA-71130 | O-RING | |
| N4-14 | 11NA-71140 | PUMP-BODY PRIMING | |
| N4-15 | 11NA-71150 | PUMP-HEAD | |
| N4-16 | 11NA-71160 | HOLDER | |
| N4-17 | 11NA-71170 | O-RING | |
| N4-18 | 11NA-71180 | PLATE-VALVE | |
| N4-19 | 11NA-71190 | FRAME-VALVE | |
| N4-20 | 11NA-71200 | O-RING | |
| 4 | 11QA-71000 | FUEL FILTER ASSY | |
| 4 | 11QA-73000 | FUEL FILTER ASSY | |
| 4-1 | 11QA-71010 | HEAD ASSY | |
| 4-2 | 11QA-71040 | ELEMENT ASSY | |
| 4-3 | 11QA-71050 | BOWL ASSY | |
| 4-3 | 11QA-71030 | BOWL ASSY | |
| 4-4 | 11QA-71020 | WIF SENSOR ASSY | |
| 5 | S037-102526 | BOLT-W/WASHER | |
| 6 | P210-101400 | PLUG-HEX | |
| 7 | Y161-014001 | O-RING | |
| 8 | 11M8-50030 | HOSE ASSY | |
| 9 | 11N8-50060 | ELBOW-90 | |
| 10 | 11N8-57050 | HOSE-FUEL | |
| 11 | 11NA-72000 | PREFILTER ASSY | |
| 11-1 | 11LD-20240 | HEAD-FILTER | |
| 11-2 | 11NA-72010 | ELEMENT ASSY-F/FILTER | |
| 11-3 | 11LD-20260 | BOWL ASSY-W/KNOB | |
| 12 | S035-082526 | BOLT-W/WASHER | |
| 13 | 11LB-20350 | ELBOW-90 | |
| 14 | 11N8-57060 | HOSE-FUEL | |
| 15 | 11ND-40170 | CONNECTOR | |
| 16 | P392-120000 | WASHER-COPPER | |
| 17 | 11N8-57030 | HOSE ASSY-FUEL | |
| 18 | S520-015000 | CLAMP-HOSE,S/DRIVE | |
| 19 | P020-110003 | ELBOW-90 | |
| 20 | S631-018004 | O-RING | |
| 21 | 31L7-10220 | CLAMP-TUBE,INS SINGLE | |
| 22 | 31L7-10340 | CLAMP-TUBE INS | |
| 23 | S037-101526 | BOLT-W/WASHER | |
| 24 | 21QB-23500 | HARNESS FUEL WARMER | |
| 30 | 11NA-73000 | FUEL FILTER & W/S ASSY | |
| 30-1 | 11NA-71001 | FUEL FILTER & W/S ASSY | |
| 30-11 | 11NA-71041 | ELEMENT ASSY | |
| 30-2 | 11NA-71020 | HEATER-FUEL | |
| 30-3 | 11Q6-50100 | CONNECTOR | |
| 30-4 | 11Q6-50110 | SPACER | |
| 30-5 | 21Q8-23200 | HARNESS-FUEL WARMER |
