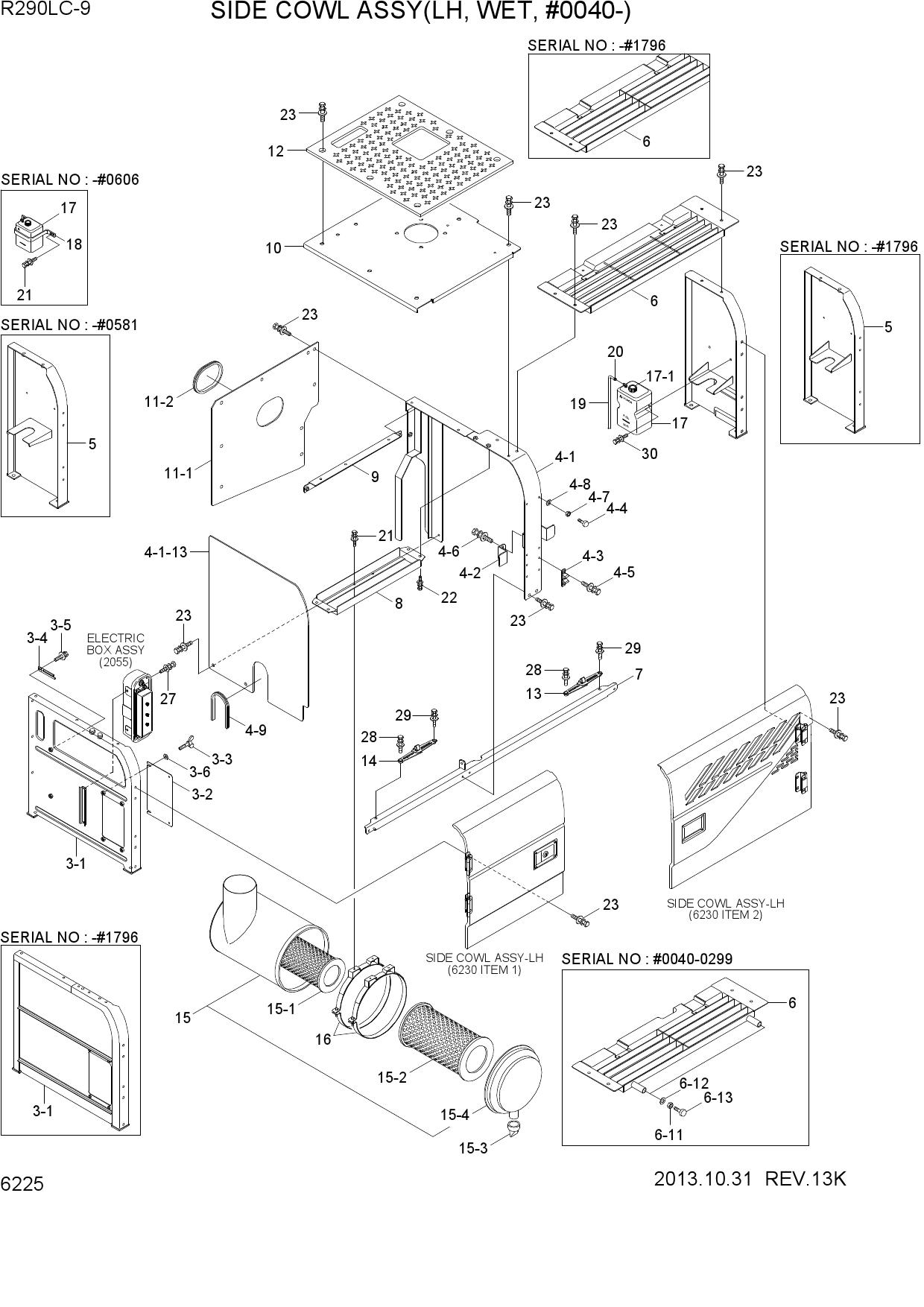

Запчасти для гусеничных экскаваторов Hyundai R290LC-9 SIDE COWL ASSY(LH, WET, #0040-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 71Q8-62000 | SIDE COWL ASSY-LH | |
| * | 71Q8-62001 | SIDE COWL ASSY-LH | |
| * | 71Q8-62002 | SIDE COWL ASSY-LH | |
| * | 71Q8-62003 | SIDE COWL ASSY-LH | |
| * | 71Q8-62004 | SIDE COWL ASSY-LH | |
| * | 71Q8-62005 | SIDE COWL ASSY-LH | |
| * | 71Q8-62020 | SIDE COWL ASSY-LH | |
| * | 71Q8-62021 | SIDE COWL ASSY-LH | |
| * | 71Q8-62022 | SIDE COWL ASSY-LH | |
| * | 71Q8-62023 | SIDE COWL ASSY-LH | |
| * | 71Q8-62024 | SIDE COWL ASSY-LH | |
| 3 | 71Q8-52302 | SUPPORT ASSY | |
| 3 | 71Q8-52303 | SUPPORT ASSY | |
| 3-1 | 71Q8-52313 | SUPPORT WA | |
| 3-1 | 71Q8-52314 | SUPPORT WA | |
| 3-1 | 71Q8-58310 | SUPPORT WA | |
| 3-2 | 71Q6-52392 | PLATE-SCREEN | |
| 3-3 | S035-082056 | BOLT-W/WASHER | |
| 3-3 | S091-080166 | BOLT-WING | |
| 3-4 | S593-000902 | CLIP-HARNESS | |
| 3-5 | S037-101526 | BOLT-W/WASHER | |
| 3-6 | S403-082006 | WASHER-PLAIN | |
| 4 | 71Q8-52403 | SUPPORT ASSY | |
| 4 | 71Q8-52404 | SUPPORT ASSY | |
| 4-1 | 71Q8-52413 | SUPPORT WA-LH,MID | |
| 4-1 | 71Q8-52414 | SUPPORT WA-LH,MID | |
| 4-2 | 71Q6-53330 | PLATE-LOCK | |
| 4-3 | 71Q6-53951 | STOPPER-B | |
| 4-4 | 71EH-13150 | BUMPER-RUBBER | |
| 4-5 | S035-082026 | BOLT-W/WASHER | |
| 4-6 | 71Q6-50020 | BOLT-W/WASHER | |
| 4-7 | S205-10100B | NUT-HEX | |
| 4-8 | S403-10200B | WASHER-PLAIN | |
| 4-9 | S791-020040 | GROMMET-PLATE | |
| 5 | 71Q8-52511 | SUPPORT WA-LH,REAR | |
| 5 | 71Q8-52512 | SUPPORT WA-LH,REAR | |
| 6 | 71Q8-52603 | SUPPORT-ENG HOOD | |
| 6-11 | S205-10100B | NUT-HEX | |
| 6-12 | S403-10200B | WASHER-PLAIN | |
| 6-13 | 71EH-13150 | BUMPER-RUBBER | |
| 7 | 71Q8-52702 | SUPPORT WA-BOTTOM | |
| 8 | 71Q8-52902 | SUPPORT WA | |
| 9 | 71Q8-62950 | SUPPORT WA-MCV HOOD | |
| 10 | 71Q8-66100 | HOOD WA-A/CLEANER | |
| 11 | 71Q8-56202 | SCREEN-MCV | |
| 11-1 | 71Q8-56212 | SCREEN-MCV | |
| 11-2 | S791-020060 | GROMMET-PLATE | |
| 12 | 71Q8-66400 | NON SLIP PLATE | |
| 13 | 71Q6-52180 | STAY ASSY-LH | |
| 14 | 71Q6-53180 | STAY ASSY-RH | |
| 15 | 11Q8-20300 | AIR CLEANER ASSY | |
| 15-1 | 11Q8-20330 | VACUUM-VALVE | |
| 15-2 | 11Q8-20320 | ELEMENT-PRIMARY | |
| 15-3 | 11Q8-20310 | ELEMENT-SAFETY | |
| 15-4 | XKDD-00003 | COVER ASSY | |
| 16 | 11Q8-20040 | CLAMP-BAND | |
| 17 | 11N8-41070 | TANK-RESERVOIR | |
| 17 | 11N8-41071 | TANK-RESERVOIR | |
| 18 | 11N8-41080 | CLAMP-RESERVOIR TANK | |
| 19 | E111-2504 | HOSE | |
| 20 | S520-015000 | CLAMP-HOSE,S/DRIVE | |
| 21 | S035-082026 | BOLT-W/WASHER | |
| 21 | S035-082026 | BOLT-W/WASHER | |
| 22 | 71Q6-50020 | BOLT-W/WASHER | |
| 23 | 71Q6-50025 | BOLT-W/WASHER | |
| 27 | S037-101556 | BOLT-W/WASHER | |
| 28 | S037-102556 | BOLT-W/WASHER | |
| 29 | S037-103556 | BOLT-W/WASHER | |
| 30 | S037-082526 | BOLT-W/WASHER |
