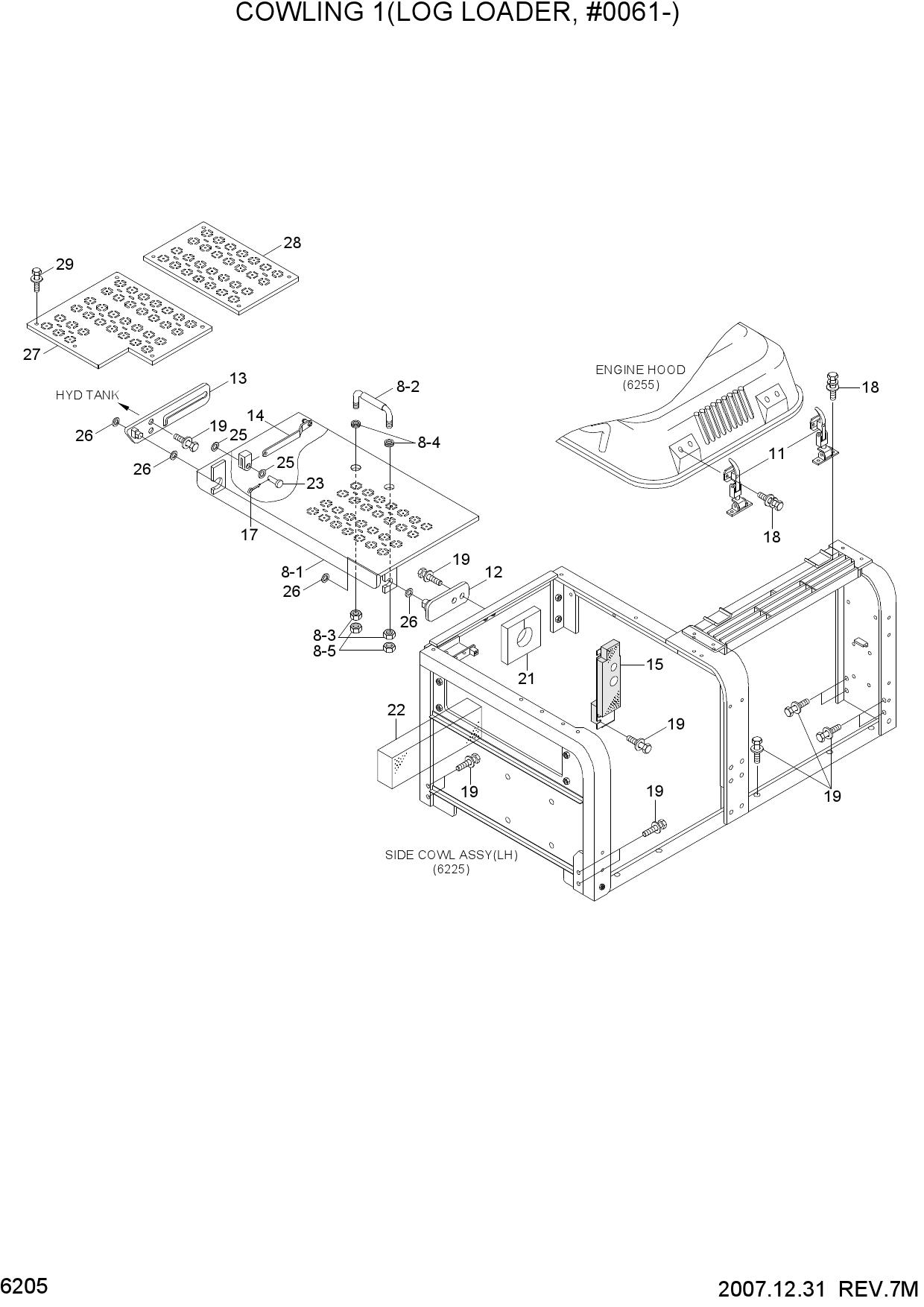

Запчасти для гусеничных экскаваторов Hyundai R290LC-7A COWLING 1(LOG LOADER, #0061-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 8 | 72N9-59200 | HOOD ASSY-MCV | |
| 8-1 | 72N9-59210 | HOOD WA-MCV | |
| 8-2 | 71E9-54150 | HANDLE | |
| 8-3 | S205-16100B | NUT-HEX | |
| 8-4 | S681-190400 | GROMMET | |
| 8-5 | S275-16000B | NUT-SELF LOCKING | |
| 11 | 71N6-56400BG | CATCH ASSY | |
| 12 | 71N8-55210 | BRACKET-MCV HOOD,LH | |
| 13 | 71N6-55221 | BRACKET-MCV HOOD,RH | |
| 14 | 71N6-56301 | STAY-MCV HOOD | |
| 15 | 74N8-55500 | SCREEN-RETURN PIPE | |
| 17 | S501-080002 | PIN-SELF LOCKING | |
| 18 | S035-082526 | BOLT-W/WASHER | |
| 19 | S037-122556 | BOLT-W/WASHER | |
| 21 | 74N8-55601 | SPONGE-A/CLEANER | |
| 22 | 72N8-66300 | SPONGE-A/SCREEN | |
| 23 | S491-080252 | PIN-CLEVIS | |
| 25 | S403-082002 | WASHER-PLAIN | |
| 26 | E231-0134 | SHIM(1.0T) | |
| 27 | 72N8-49200 | FOOT BOARD-F/TANK(A) | |
| 28 | 72N8-49300 | FOOT BOARD-F/TANK(B) | |
| 29 | S037-121556 | BOLT-W/WASHER |
