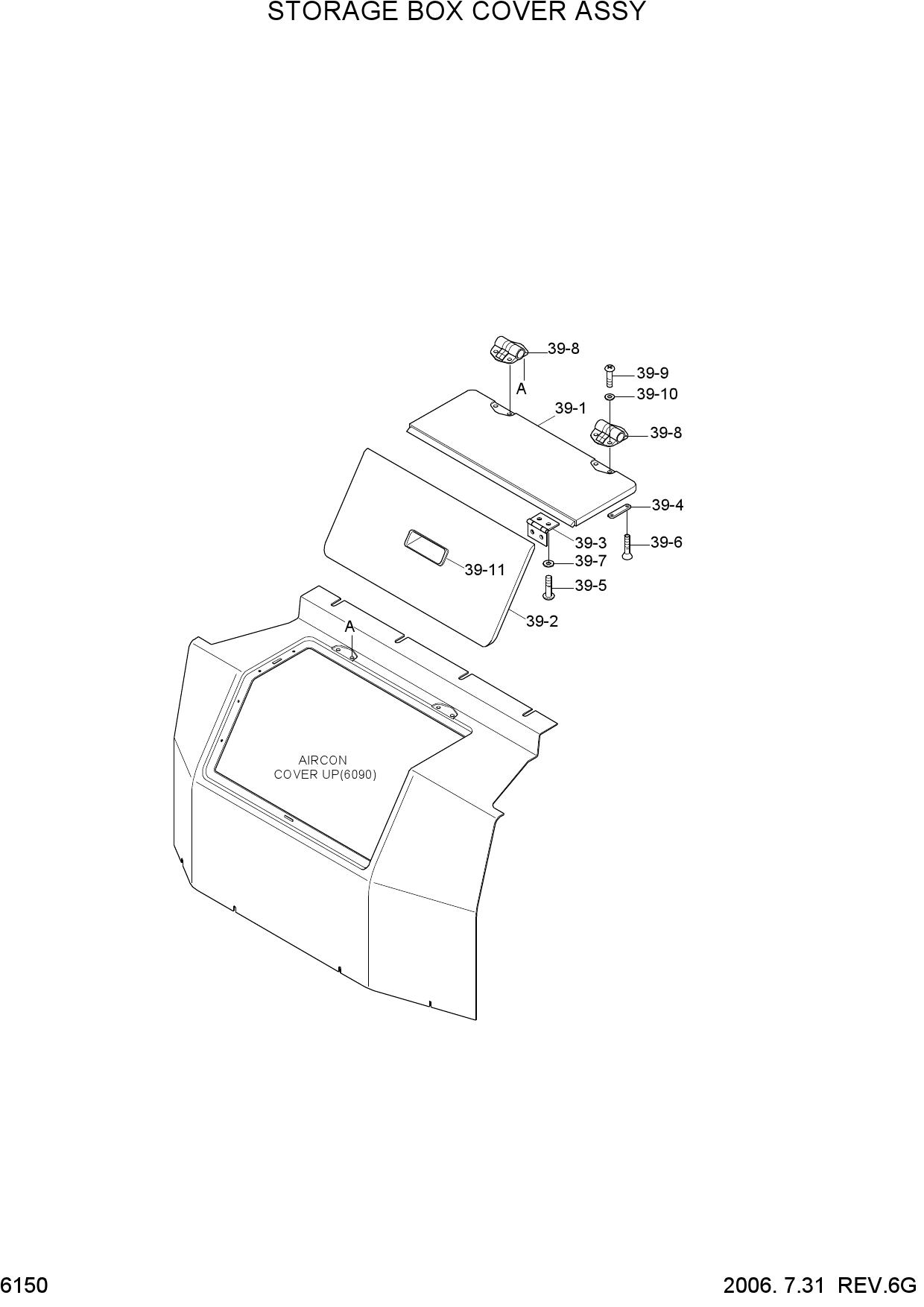

Запчасти для гусеничных экскаваторов Hyundai R290LC-7 STORAGE BOX COVER ASSY
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 39 | 71N6-20320 | S/BOX COVER ASSY | |
| 39-1 | 71N6-21721 | S/BOX COVER-UP | |
| 39-2 | 71N6-21731 | S/BOX COVER-LOW | |
| 39-3 | 71N6-21740 | HINGE | |
| 39-4 | 71N6-21750 | PLATE | |
| 39-5 | S161-060146 | SCREW | |
| 39-6 | S141-050106 | SCREW-FLAT HD | |
| 39-7 | S403-062006 | WASHER-PLAIN | |
| 39-8 | 71N6-21900 | HINGE | |
| 39-9 | S161-050166 | SCREW-CROSS R/ROUND | |
| 39-9 | S161-050126 | SCREW | |
| 39-10 | S403-052006 | WASHER-PLAIN | |
| 39-11 | 71N6-21920 | DOOR-PULL |
