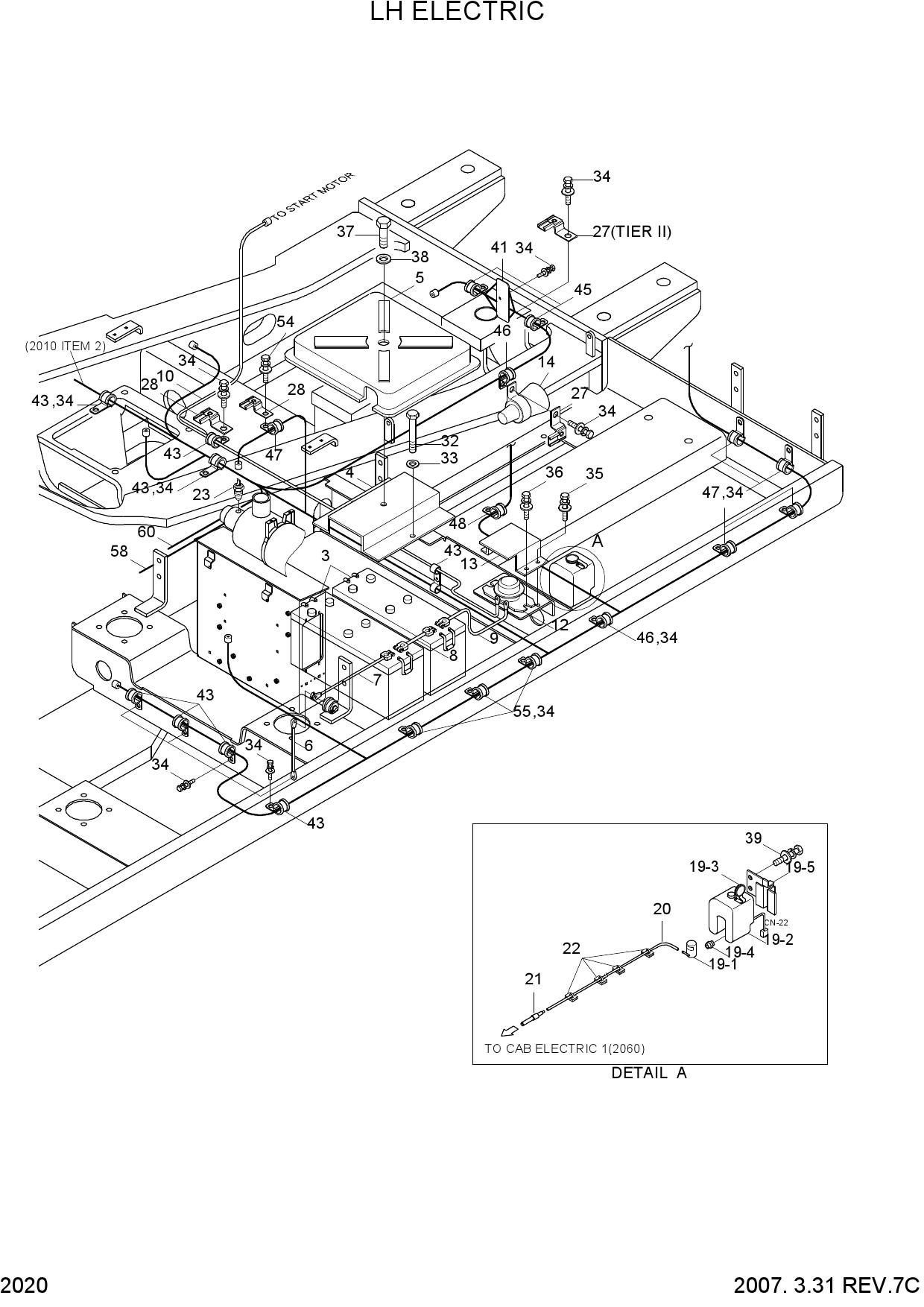

Запчасти для гусеничных экскаваторов Hyundai R290LC-7 LH ELECTRIC
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | E125-1501 | BATTERY | |
| 4 | 21EN-30540 | BRACKET-BATTERY | |
| 5 | 21EN-30551 | COVER-BATTERY | |
| 6 | 21EN-10130 | CABLE(MASTER SW-EARTH) | |
| 6 | 21NA-10500 | CABLE(MASTER SW-EARTH) | |
| 7 | 21N8-10110 | CABLE(MASTER SW-BATT) | |
| 8 | 21EN-10120 | CABLE(BATT-BATT) | |
| 9 | 21N8-10121 | CABLE(BATT-RELAY) | |
| 9 | 21N8-10300 | CABLE(BATT-RELAY) | |
| 9 | 21N8-10400 | CABLE(BATT-BATT RY) | |
| 10 | 21N8-10131 | CABLE(BATT RY-STARTER) | |
| 10 | 21N8-10132 | CABLE(BATT RY-STARTER) | |
| 10 | 21EA-60611 | CABLE(BATT RY-STARTER) | |
| 12 | 21E5-0003 | RELAY-BATTERY | |
| 13 | 21N6-10180 | COVER-BATT RELAY | |
| 13 | 21N6-10181 | COVER-BATT RELAY | |
| 14 | 21N6-20321 | BUZZER-TRAVEL ALARM | |
| 14 | 21N6-20322 | BUZZER-TRAVEL ALARM | |
| 19 | 21EG-30630 | WASHER TANK ASSY | |
| 19-1 | 21EG-10130 | PUMP-MOTOR | |
| 19-2 | 21EG-10140 | TANK | |
| 19-3 | 24L3-30660 | CAP | |
| 19-4 | 24L3-30670 | RUBBER-BUSHING | |
| 19-5 | 24L3-30710 | PLATE | |
| 20 | 21EM-30580 | HOSE-RUBBER | |
| 20 | 21EM-30581 | HOSE-RUBBER | |
| 21 | 21EM-30570 | CONNECTOR-TUBE | |
| 22 | 21EM-30630 | CLAMP-QUICK | |
| 23 | 21L7-20100 | SENSOR-AIR CLEANER | |
| 27 | 25D1-10640 | CLIP ASSY | |
| 27 | 25D1-10640 | CLIP ASSY | |
| 28 | 25D1-10650 | CLIP ASSY | |
| 32 | S017-102502 | BOLT-HEX | |
| 33 | S403-102002 | WASHER-PLAIN | |
| 34 | S037-102022 | BOLT-W/WASHER | |
| 35 | S035-082022 | BOLT-W/WASHER | |
| 36 | S035-082522 | BOLT-W/WASHER | |
| 37 | S017-100202 | BOLT-HEX | |
| 38 | 21EN-30560 | WASHER-PLAIN | |
| 39 | S035-061622 | BOLT-W/WASHER | |
| 41 | 21N8-21090 | PLATE-CONNECTOR | |
| 43 | S543-240002 | CLAMP-TUBE | |
| 45 | S543-160002 | CLAMP-TUBE | |
| 46 | S543-120002 | CLAMP-TUBE | |
| 47 | S543-080002 | CLAMP-TUBE | |
| 48 | S543-060002 | CLAMP-TUBE | |
| 54 | S037-101652 | BOLT-W/WASHER | |
| 55 | S543-280002 | CLAMP-TUBE | |
| 58 | 21N8-10140 | EXT-QUICK COUPLER | |
| 60 | 21N8-10160 | HARNESS-EXTENTION |
