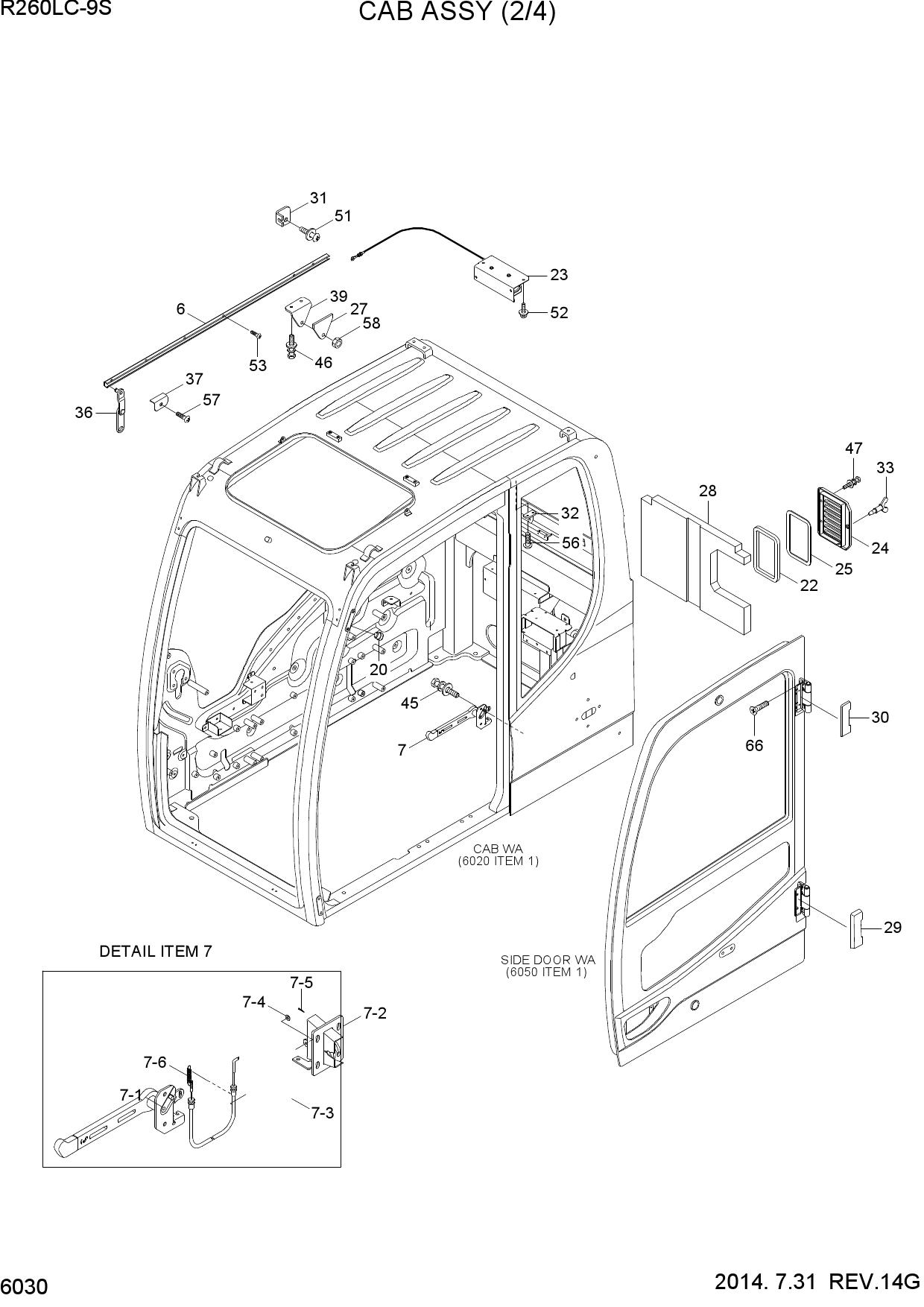

Запчасти для гусеничных экскаваторов Hyundai R260LC-9S CAB ASSY(2/4)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 6 | 71Q6-01451 | RAIL | |
| 7 | 71Q6-02350 | LATCH ASSY-BACK | |
| 7-1 | 71Q6-02640 | LEVER | |
| 7-2 | 71Q6-03720 | CATCH-BACK | |
| 7-2 | 71Q6-03721 | CATCH-BACK | |
| 7-3 | 71Q6-03730 | WIRE ASSY | |
| 7-4 | S32-050001 | WASHER | |
| 7-5 | S501-080002 | PIN-SELF LOCKING | |
| 7-6 | MH601030 | SPRING | |
| 20 | 71Q6-03030 | CUSHION-RUBBER | |
| 22 | 71Q6-03070 | SPONGE | |
| 23 | 71Q6-03220 | CABLE ASSY-ASSIST | |
| 23 | 72Q6-03320 | CABLE ASSY-ASSIST | |
| 24 | 71Q6-03441 | COVER-AIRCON | |
| 25 | 71Q6-03470 | PAD | |
| 27 | 71Q6-03490 | STRIKER | |
| 28 | 71Q6-03640 | INSULATOR FOAM | |
| 29 | 71Q6-03650 | COVER-HINGE/LOWER | |
| 30 | 71Q6-03660 | COVER-HINGE/UPPER | |
| 31 | 71Q6-03671 | BRACKET | |
| 32 | 71Q6-03680 | HOOK | |
| 33 | 71Q6-04470 | FASTENER | |
| 36 | 71Q6-04530 | LINK WA | |
| 37 | 71Q6-04611 | STOPPER | |
| 39 | 71Q6-04960 | PLATE | |
| 45 | S035-061526 | BOLT-W/WASHER | |
| 46 | S035-062026 | BOLT-W/WASHER | |
| 47 | S035-081626 | BOLT-W/WASHER | |
| 51 | S132-061026 | SCREW-W/WASHER | |
| 52 | S132-062056 | SCREW-W/WASHER | |
| 53 | S141-040106 | SCREW-FLAT HD | |
| 56 | S161-050106 | SCREW-CROSS R/ROUND | |
| 57 | S161-080206 | SCREW-CROSS R/ROUND | |
| 58 | S205-101006 | NUT-HEX | |
| 66 | 71EH-10400 | SCREW |
