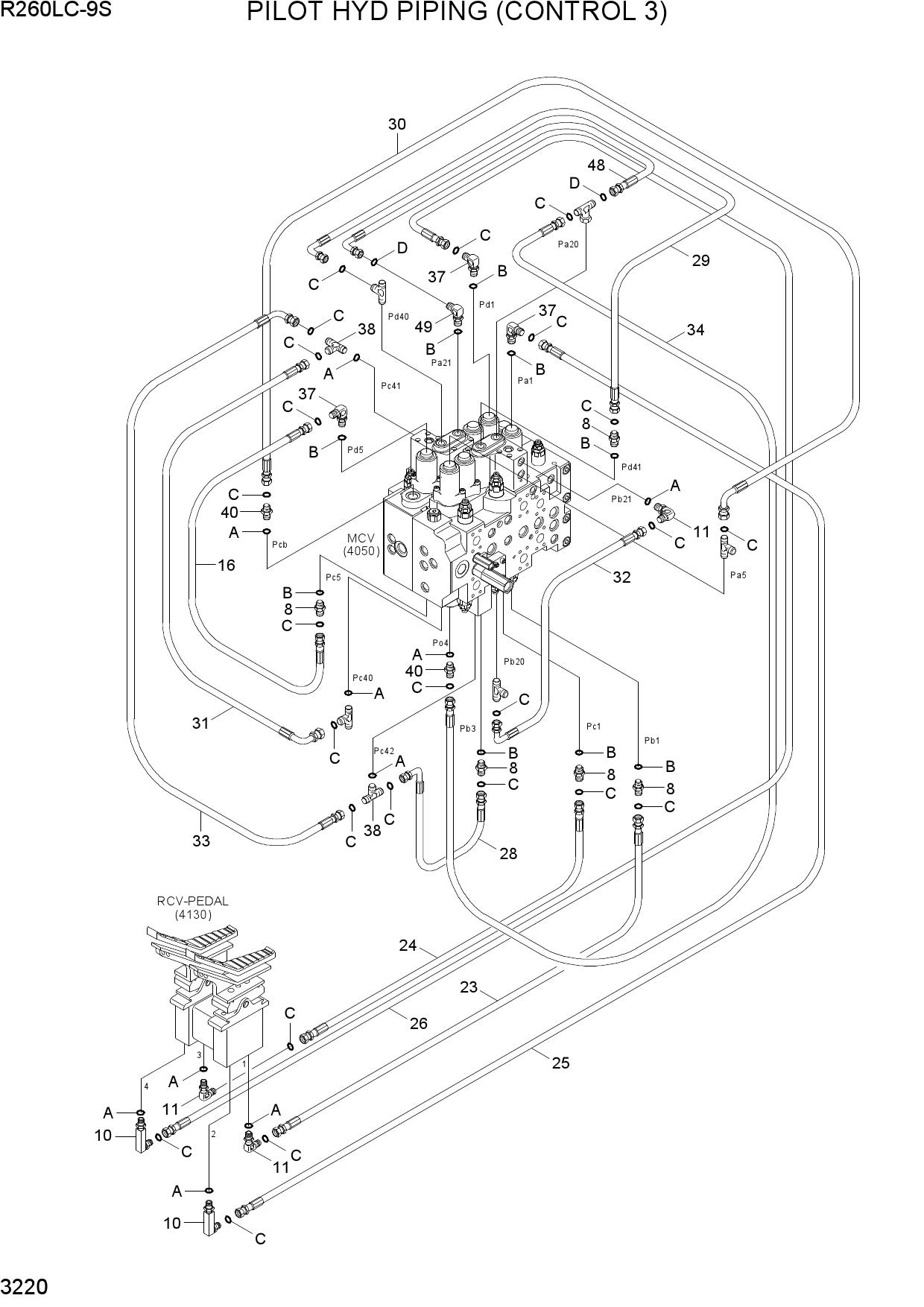

Запчасти для гусеничных экскаваторов Hyundai R260LC-9S(BRAZIL) PILOT HYD PIPING (CONTROL 3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 8 | X500-110013 | CONNECTOR-ORFS | |
| 10 | 31N6-25110 | ELBOW-90,ORFS,LONG | |
| 11 | X520-110001 | ELBOW-90,ORFS | |
| 16 | X400-042021 | HOSE ASSY-SYNFLEX,ORFS | |
| 23 | X400-042060 | HOSE ASSY-SYNFLEX,ORFS | |
| 24 | X400-042062 | HOSE ASSY-SYNFLEX,ORFS | |
| 25 | X400-042067 | HOSE ASSY-SYNFLEX,ORFS | |
| 26 | X400-042069 | HOSE ASSY-SYNFLEX,ORFS | |
| 28 | X420-042007 | HOSE ASSY-SYNFLEX,ORFS | |
| 29 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 30 | X420-042014 | HOSE ASSY-SYNF,ORFS 0X90 | |
| 31 | X420-042016 | HOSE ASSY-SYNFLEX,ORFS | |
| 32 | X420-042018 | HOSE ASSY-SYNFLEX,ORFS | |
| 33 | X420-042019 | HOSE ASSY-SYNFLEX,ORFS | |
| 34 | X400-042030 | HOSE ASSY-SYNFLEX,ORFS | |
| 37 | X520-110012 | ELBOW-90,ORFS | |
| 38 | X820-045151 | TEE-R/TYPE,ORFS | |
| 40 | X500-110001 | CONNECTOR-ORFS | |
| 48 | X420-062010 | HOSE ASSY-ORFS 0X90 | |
| 49 | X520-110002 | ELBOW-90,ORFS | |
| A | S631-011004 | O-RING | |
| B | S631-014004 | O-RING | |
| C | S621-011001 | O-RING | |
| D | S621-012001 | O-RING |
