- DATAPLATE
- REAR GEAR HOUSING
- CYLINDER BLOCK
- CRANKSHAFT AND BEARINGS
- VALVE TAPPETS
- CRANKCASE BREATHER
- CRANKCASE BREATHER PLUMBING
- COOLANT HEATER STARTING AID
- AIR INLET PLUMBING
- VIBRATION DAMPER
- REAR GEAR TRAIN MOUNTING
- ELECTRICAL ACCESSORIES
- THERMOSTAT
- ALTERNATOR
- ALTERNATOR MOUNTING
- EXHAUST RECIRCULATION
- EXHAUST RECIRCULATION WATER PLUMBING
- EXHAUST RECIRCULATION AIR PLUMBING
- FAN DRIVE
- FAN DRIVE MOUNTING
- FUEL DRAIN PLUMBING
- FUEL FILTER PLUMBING
- FUEL FILTER LOCATION(-#0069)
- FUEL FILTER LOCATION(#0070-)
- FLYWHEEL HOUSING
- FUEL INLET FITTING
- FUEL PUMP
- FUEL PLUMBING
- FLYWHEEL
- FRONT GEAR COVER
- HEATER PLUMBING
- PUMP MOUNTING
- AIR INTAKE CONNECTION
- AIR INTAKE MANIFOLD
- LIFTING BRACKET MOUNTING
- ENGINE OIL COOLER
- OIL FILTER
- OIL LEVEL GUAGE
- LUBRICATING OIL PUMP
- OIL FILTER ARRANGEMENT
- OIL PAN
- ENGINE CONTROL MODULE
- CONNECTION ROD AND PISTON
- CAMSHAFT
- CYLINDER HEAD
- INJECTOR PLUMBING
- INJECTOR
- TURBOCHARGER KIT
- TURBOCHARGER
- ROCKER LEVER
- ENGINE COOLANT VENT
- OIL LEVEL SENSOR
- HEAT SHIELD
- STARTING MOTOR AND MOUNTING
- EXHAUST MANIFOLD AND MOUNTING
- TURBOCHARGER PLUMBING
- VALVE COVER ARRANGEMENT
- WATER INLET & OUTLET CONNECTION
- WATER PUMP DRIVE
- BELT TENSIONER
- WATER PUMP
- ENGINE CONTROL MODULE HARNESS
- EXHAUST OUTLET CONNECTION

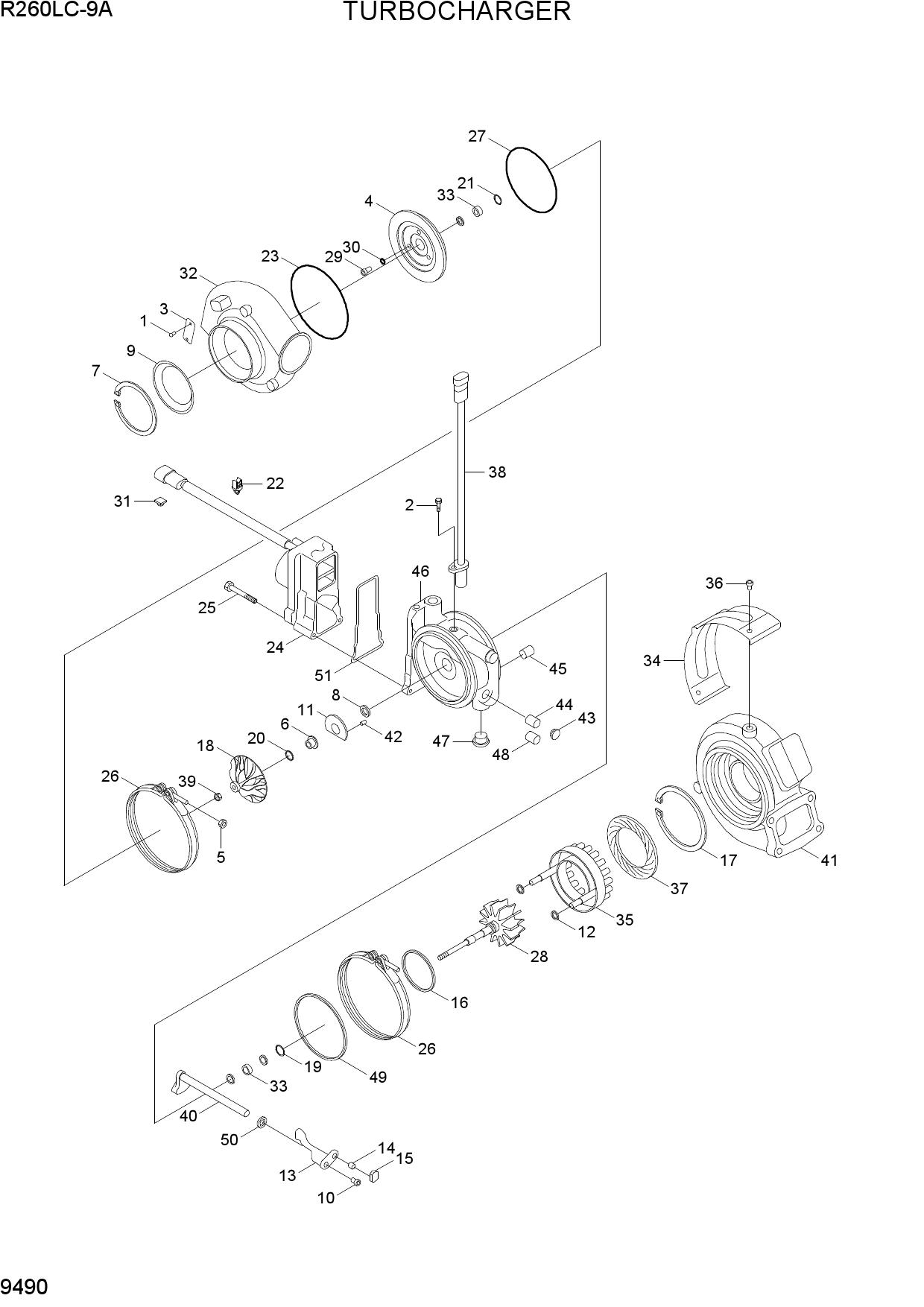

Запчасти для гусеничных экскаваторов Hyundai R260LC-9A TURBOCHARGER
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 2881935NX | KIT-TURBOCHARGER | |
| N*-1 | 2840870 | TURBOCHARGER | |
| 1 | 3519163 | SCREW-DRIVE | |
| 2 | 3527184 | SCREW-HEX HD CAP | |
| N3 | 3527619 | DATAPLATE | |
| N4 | 2835795 | DIFFUSER-TUBOCHARGER | |
| 5 | 3529372 | NUT-REGULAR HEX | |
| N6 | 3597783 | SLINGER-OIL | |
| 7 | 3531238 | RING-RETAINING | |
| 8 | 3532217 | COLLAR | |
| N9 | 3532427 | BAFFLE-TURBO NOISE | |
| N10 | 2835968 | SCREW-SOCKET H/CAP | |
| 11 | 4049992 | BEARING-TUR, THRUST | |
| N12 | 3595280 | SEAL-OIL | |
| N*-2 | 2836837 | YOKE-TURBOCHARGER | |
| N13 | 2836674 | YOKE-TURBO ACTUATOR | |
| N14 | 2836337 | PIN-PIVOT | |
| N15 | 3596179 | BLOCK-PIVOT | |
| N16 | 2835493 | SEAL-SPLIT RING | |
| N17 | 3596572 | RING-RETAINING | |
| 18 | 4035788 | IMPELLER-TURBO COMP | |
| 19 | 3756754 | SEAL-SPLIT RING | |
| 20 | 3758848 | SEAL-SPLIT RING | |
| 21 | 3762259 | RING-RETAINING | |
| 22 | 3965616 | CLIP-WIRE RETAINING | |
| 23 | 4041396 | O-RING SEAL | |
| 24 | 4032824 | ACTUATOR KIT-TUB ELEC | |
| 25 | 4040267 | SCREW-SOCKET H/CAP | |
| N26 | 2835596 | CLAMP-V BAND | |
| 27 | 4042188 | O-RING SEAL | |
| 28 | 4042329 | SHAFT-WHEEL,TURBO | |
| 29 | 4042619 | SCREW-SOCKET H/CAP | |
| 30 | 4042652 | O-RING SEAL | |
| 31 | 4043330 | CLIP-WIRE | |
| N32 | 2835962 | HOUSING-T/COMPRESSOR | |
| 33 | 4043686 | BEARING-TURBOCHARGER | |
| 34 | 4048910 | SHIELD-TURBO HEAT | |
| 35 | 4049991 | RING-TURBO NOZZLE | |
| N36 | 3596812 | SCREW-HEX F/HEAD CAP | |
| 37 | 4046002 | SHROUD-TURBO NOZZLE | |
| 38 | 4032806 | KIT-TURBO SENSOR | |
| 39 | 3596402 | NUT-LOCK | |
| N40 | 2835971 | LEVER-TURBO ACTUATOR | |
| N41 | 2839996 | HOUSING-TURBINE | |
| N*-3 | 2835006 | HOUSING-TUR BEARING | |
| 42 | 3522597 | PIN-ROLL | |
| N43 | 3593466 | PLUG-ORIFICE | |
| N44 | 3594891 | BUSHING | |
| N45 | 3597176 | BUSHING | |
| N46 | 2835005 | HOUSING-TUR, BRARING | |
| N47 | 3599187 | PLUG | |
| 48 | 2834009 | BUSHING | |
| N49 | 2835492 | SEAL-SPLIT RING | |
| N50 | 4045491 | SEAL-OIL | |
| N51 | 4040252 | GASKET-TURBOCHARGER |
