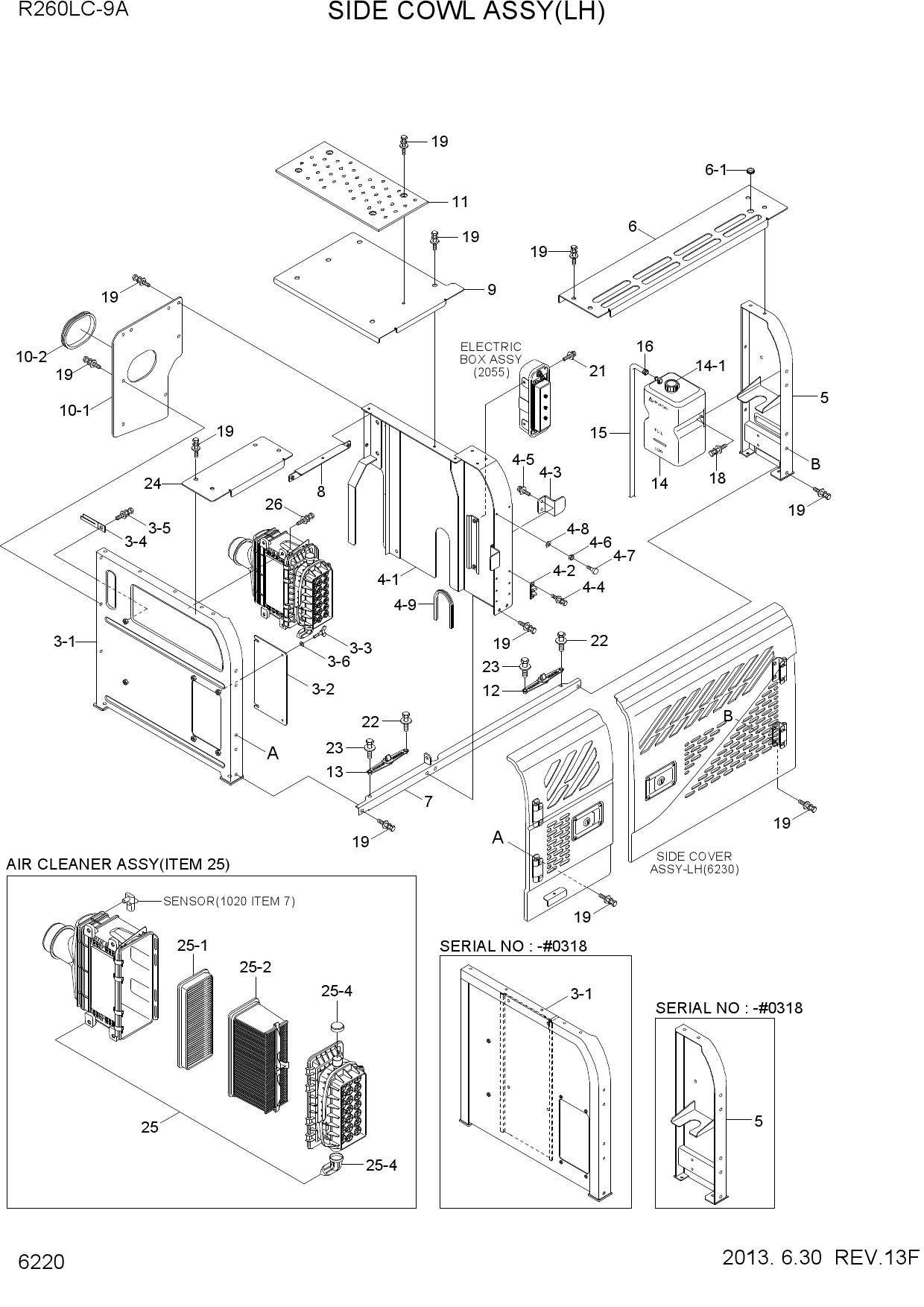

Запчасти для гусеничных экскаваторов Hyundai R260LC-9A SIDE COWL ASSY(LH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 72Q7-52002 | SIDE COWL ASSY-LH | |
| * | 72Q7-52003 | SIDE COWL ASSY-LH | |
| 3 | 72Q7-52301 | SUPPORT ASSY | |
| 3-1 | 72Q7-52312 | SUPPORT WA | |
| 3-2 | 71Q6-52392 | PLATE-SCREEN | |
| 3-3 | S091-080166 | BOLT-WING | |
| 3-4 | S593-000902 | CLIP-HARNESS | |
| 3-5 | S037-101526 | BOLT-W/WASHER | |
| 3-6 | S403-082006 | WASHER-PLAIN | |
| 4 | 72Q7-52401 | SUPPORT ASSY | |
| 4-1 | 72Q7-52411 | SUPPORT WA-LH,MID | |
| 4-2 | 71Q6-53951 | STOPPER-B | |
| 4-3 | 71Q6-53330 | PLATE-LOCK | |
| 4-4 | S035-082026 | BOLT-W/WASHER | |
| 4-5 | 71Q6-50020 | BOLT-W/WASHER | |
| 4-6 | S205-10100B | NUT-HEX | |
| 4-7 | 71EH-13150 | BUMPER-RUBBER | |
| 4-8 | S403-10200B | WASHER-PLAIN | |
| 4-9 | S791-020049 | GROMMET-PLATE | |
| 5 | 72Q7-52512 | SUPPORT WA-LH,REAR | |
| 6 | 72Q7-52602 | SUPPORT-ENG HOOD | |
| 6-1 | S880-132060 | GROMMET | |
| 7 | 71Q7-52703 | SUPPORT WA-BOTTOM | |
| 8 | 72Q7-52952 | SUPPORT WA-MCV HOOD | |
| 9 | 72Q7-56101 | HOOD WA-A/CLEANER | |
| 10 | 72Q7-56201 | SCREEN-MCV | |
| 10-1 | 72Q7-56211 | SCREEN-MCV | |
| 10-2 | S791-020070 | GROMMET-PLATE | |
| 11 | 72Q7-56401 | PLATE-NON SLIP | |
| 12 | 71Q6-52180 | STAY ASSY-LH | |
| 13 | 71Q6-53180 | STAY ASSY-RH | |
| 14 | 11N8-41071 | TANK-RESERVOIR | |
| 14-1 | MH100020 | CAP-RESERVOIR TANK | |
| 15 | E111-2504 | HOSE | |
| 16 | S520-015000 | CLAMP-HOSE,S/DRIVE | |
| 18 | S035-082026 | BOLT-W/WASHER | |
| 19 | 71Q6-50025 | BOLT-W/WASHER | |
| 21 | S037-101556 | BOLT-W/WASHER | |
| 22 | S037-102556 | BOLT-W/WASHER | |
| 23 | S037-103556 | BOLT-W/WASHER | |
| 24 | 72Q7-56502 | SUPPORT-ENG HOOD | |
| 25 | 11Q6-08020 | AIR CLEANER ASSY | |
| 25 | 11Q6-08021 | AIR CLEANER ASSY | |
| 25-1 | 11LL-45190 | FILTER-SECONDARY | |
| 25-2 | 11Q6-10180 | FILTER-PRIMARY | |
| 25-4 | SP0100400 | HARDWARE-VARIOUS | |
| N25-5 | A029F130 | CAP-END AIR FILTER | |
| 26 | S035-083526 | BOLT-W/WASHER |
