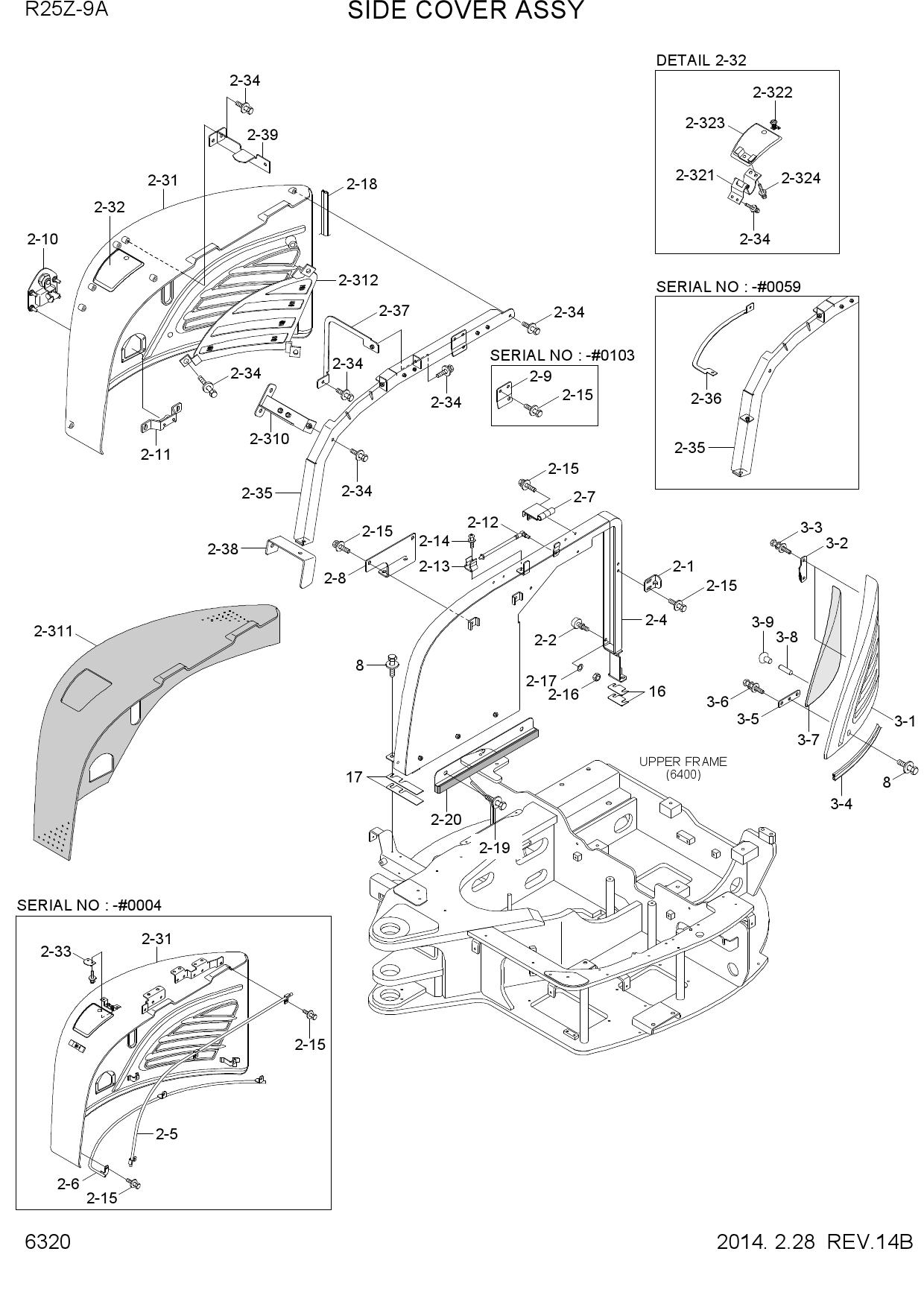

Запчасти для гусеничных экскаваторов Hyundai R25Z-9A SIDE COVER ASSY
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 75MK-52000 | OPEN COVER ASSY-RH | |
| 2 | 75MK-52001 | OPEN COVER ASSY-RH | |
| 2 | 75MK-62000 | OPEN COVER ASSY-RH | |
| 2-1 | 71MK-51501 | STRIKER | |
| 2-2 | 71M7-51900 | STOPPER-RUBBER | |
| 2-3 | 75MK-52100 | OPEN COVER | |
| 2-3 | 75MK-52101 | OPEN COVER | |
| 2-31 | 75MK-52110 | COVER BODY-OPEN | |
| 2-31 | 75MK-52111 | COVER BODY-OPEN | |
| 2-32 | 71MK-52120 | COVER ASSY-SERVICE | |
| 2-32 | 75MK-52120 | COVER ASSY-SERVICE | |
| 2-321 | 71MK-52130 | HINGE ASSY | |
| 2-322 | 71MK-52140 | KEY ASSY | |
| 2-323 | 71MK-52150 | COVER BODY-SERVICE | |
| 2-323 | 75MK-52150 | COVER BODY-SERVICE | |
| 2-324 | S035-082056 | BOLT-W/WASHER | |
| 2-33 | 71MK-52160 | PLATE | |
| 2-34 | S035-082056 | BOLT-W/WASHER | |
| 2-34 | S035-082056 | BOLT-W/WASHER | |
| 2-34 | S035-082056 | BOLT-W/WASHER | |
| 2-35 | 75MK-57100 | SUPPORTWA-OPEN COVER(A) | |
| 2-35 | 75MK-52110 | COVER BODY-OPEN | |
| 2-36 | 75MK-57200 | SUPPORTWA-OPEN COVER(B) | |
| 2-37 | 75MK-57300 | SUPPORTWA-O/COVER(C) | |
| 2-38 | 75MK-57400 | BRACKET-DAMPER | |
| 2-39 | 75MK-57500 | SUPPORT-HINGE | |
| 2-310 | 75MK-57600 | SUPPORT WA-KEY | |
| 2-311 | 75MK-52190 | SPONGE | |
| 2-312 | 75MK-57700 | WIRE NET ASSY | |
| 2-4 | 75MK-52200 | FIX COVER-CTR WA | |
| 2-5 | 71MK-52301 | PIPE A WA-SUPPORT | |
| 2-6 | 71MK-52401 | PIPE B WA-SUPPORT | |
| 2-7 | 71MK-52501 | HINGE ASSY | |
| 2-8 | 71MK-52740 | PLATE-MOUNTING | |
| 2-9 | 71MK-52770 | BRACKET-STAY | |
| 2-10 | 71MK-52802 | LATCH ASSY | |
| 2-11 | 71MK-52902 | STRIKE ASSY | |
| 2-12 | 71MH-54402 | STAY WA | |
| 2-13 | 71MH-54290 | HOLDER-ROD | |
| 2-13 | 71MH-54402 | STAY WA | |
| 2-14 | S161-050106 | SCREW-CROSS R/ROUND | |
| 2-15 | S035-082056 | BOLT-W/WASHER | |
| 2-15 | S035-082056 | BOLT-W/WASHER | |
| 2-15 | S035-082056 | BOLT-W/WASHER | |
| 2-15 | S035-082056 | BOLT-W/WASHER | |
| 2-15 | S035-082056 | BOLT-W/WASHER | |
| 2-15 | S035-082056 | BOLT-W/WASHER | |
| 2-16 | S205-081006 | NUT-HEX | |
| 2-16 | S205-081006 | NUT-HEX | |
| 2-17 | S403-081006 | WASHER-PLAIN | |
| 2-17 | S403-081006 | WASHER-PLAIN | |
| 2-18 | S771-005500 | STRIP-WEATHER | |
| 2-19 | S037-102026 | BOLT-W/WASHER | |
| 2-20 | 71MK-55160 | SCREEN ASSY | |
| 3 | 75MK-53000 | FIX COVER ASSY-LH | |
| 3 | 75MK-53001 | FIX COVER ASSY-LH | |
| 3 | 76MK-53000 | FIX COVER ASSY-LH | |
| 3-1 | 75MK-53100 | COVER BODY-LH | |
| 3-1 | 75MK-53101 | COVER BODY-LH | |
| 3-1 | 76MK-53100 | COVER BODY-LH | |
| 3-2 | 71MK-53201 | PLATE-MOUNTING | |
| 3-3 | S035-082026 | BOLT-W/WASHER | |
| 3-4 | S771-007100 | STRIP-WEATHER | |
| 3-4 | S771-006400 | STRIP-WEATHER | |
| 3-4 | S771-007100 | STRIP-WEATHER | |
| 3-5 | 75MK-53300 | PLATE | |
| 3-6 | S035-082056 | BOLT-W/WASHER | |
| 3-7 | 76MK-53400 | WIRE NET ASSY | |
| 3-8 | 75MK-53110 | SPONGE | |
| 3-9 | 71M9-51900 | PIN-INSULATION | |
| 3-10 | 71M9-51800 | CAP & BOLT-INSULATION | |
| 8 | S035-082056 | BOLT-W/WASHER | |
| 16 | 71MK-57100 | SHIM(1.5T) | |
| 17 | 71MK-57200 | SHIM(1.5T) |
