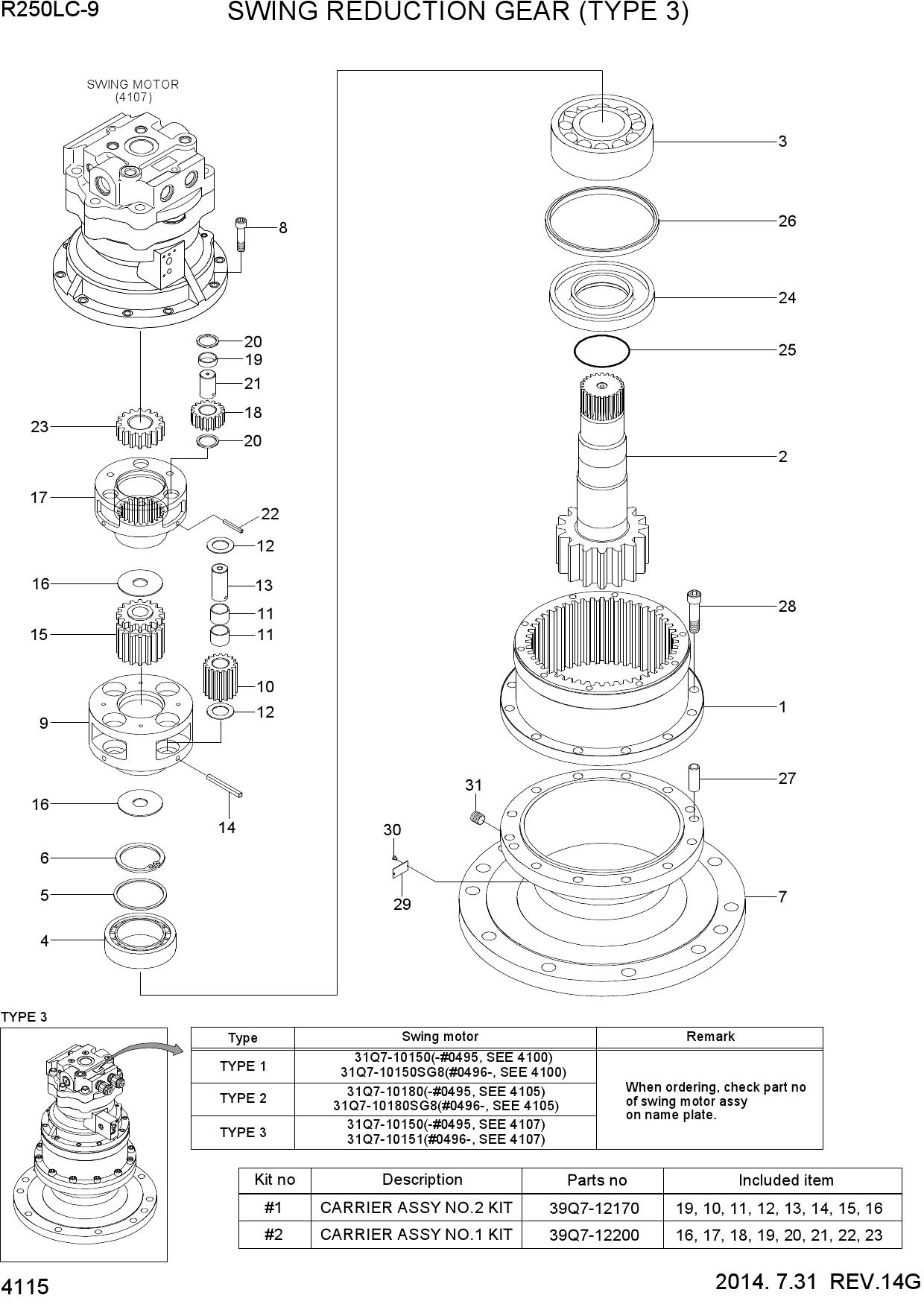

Запчасти для гусеничных экскаваторов Hyundai R250LC-9 SWING REDUCTION GEAR (TYPE 3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| *-2 | 39Q7-12100 | SWING REDUCTION GEAR | |
| 1 | 39Q7-12110 | GEAR-RING | |
| 2 | 39Q7-12120 | SHAFT-DRIVE | |
| 3 | 39Q7-12130 | BEARING-ROLLER(MAIN) | |
| 4 | 39Q7-12140 | BEARING-ROLLER(SUB) | |
| 5 | 39Q7-12150 | PLATE-THRUST | |
| 6 | S751-095004 | RING-RETAINING | |
| 7 | 39Q7-12160 | CASING | |
| 8 | S109-100306 | BOLT-SOCKET | |
| 9 | 39Q7-12180 | CARRIER 2 | |
| K10 | 39QB-12200 | GEAR-PLANETARY 2 | |
| K11 | 39Q8-42290 | BEARING-NEEDLE NO.1 | |
| K12 | 39QB-12220 | WASHER-THRUST 2 | |
| K13 | 39QB-12230 | PIN-CARRIER 2 | |
| K14 | S472-800364 | PIN-SPRING | |
| K15 | 39Q7-12190 | GEAR-SUN 2 | |
| K16 | 39QB-12330 | THRUST PLATE | |
| K17 | 39Q7-12210 | CARRIER 1 | |
| K18 | 39Q7-12220 | GEAR-PLANETARY 1 | |
| K19 | 39Q6-12280 | BEARING-NEEDLE 1 | |
| K20 | 39Q7-12230 | WASHER-THRUST 1 | |
| K21 | 39Q7-12240 | PIN-CARRIER 1 | |
| K22 | S472-600364 | PIN-SPRING | |
| K23 | 39Q7-12250 | GEAR-SUN 1 | |
| 24 | 39Q7-12260 | SLEEVE | |
| 25 | S632-120001 | O-RING | |
| 26 | 39Q6-12350 | SEAL-OIL | |
| 27 | 39Q6-41450 | PIN-PARALLEL | |
| 28 | S109-16045D | BOLT-SOCKET | |
| 29 | 39Q7-12270 | NAME PLATE | |
| 29 | 39Q7-12271 | NAME PLATE | |
| 30 | 39Q6-41800 | RIVET | |
| 31 | P220-430204 | PLUG-HEX | |
| K | 39Q7-12170 | CARRIER ASSY 2 | |
| K | 39Q7-12200 | CARRIER ASSY 1 |
