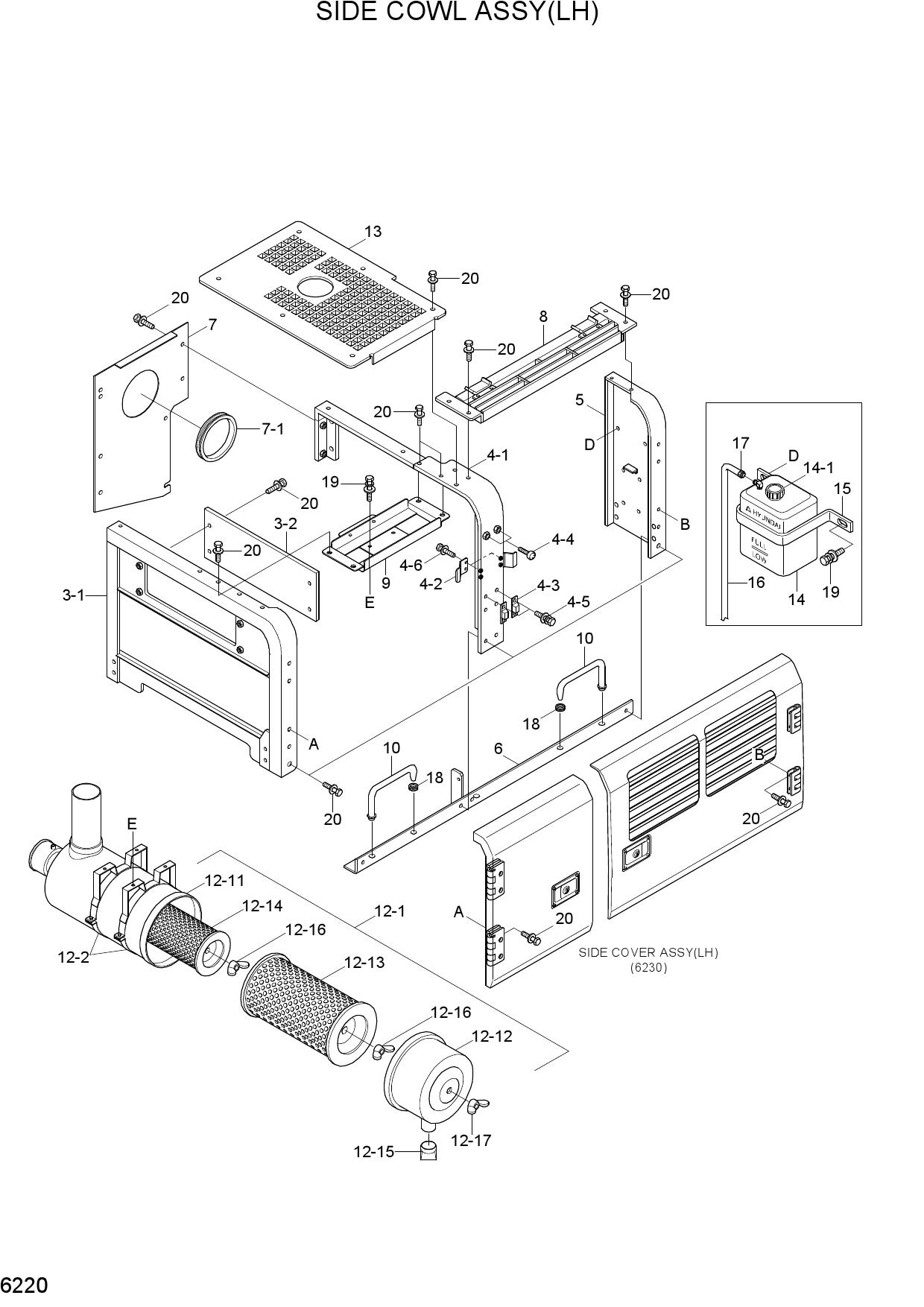

Запчасти для гусеничных экскаваторов Hyundai R250LC-7A SIDE COWL ASSY(LH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 72N7-52001 | SIDE COWL ASSY-LH | |
| 3 | 72N7-52300 | SUPPORT ASSY-L/F | |
| 3-1 | 72N7-52310 | SUPPORT WA-L/F | |
| 3-2 | 71N8-52322 | COVER-PLATE | |
| 3-3 | S037-122556 | BOLT-W/WASHER | |
| 4 | 72N8-52401 | SUPPORT ASSY-L/M | |
| 4-1 | 72N8-52411 | SUPPORT WA-L/M | |
| 4-2 | 71N8-52492 | PLATE-LOCK | |
| 4-3 | 71EE-53540 | STOPPER-B | |
| 4-4 | 71EH-13150 | BUMPER-RUBBER | |
| 4-5 | S035-062026 | BOLT-W/WASHER | |
| 4-6 | S037-122056 | BOLT-W/WASHER | |
| 5 | 72N8-52502 | SUPPORT WA-L/R | |
| 6 | 71N7-52600 | BASE PLATE WA-LH | |
| 7 | 72N7-52701 | SCREEN-MCV | |
| 7-1 | S791-030068 | GROMMET-PLATE | |
| 8 | 72N8-52800 | SUPPORT WA-E/G HOOD | |
| 9 | 72N7-52900 | BRACKET-A/CLEANER | |
| 10 | 71N8-52950 | STAY-SIDE COVER | |
| 12 | 11N8-20101 | AIR CLEANER SUB ASSY | |
| 12-1 | 11N8-20111 | AIR CLEANER ASSY | |
| 12-11 | 11N8-20151 | HOUSING | |
| 12-12 | 11LD-40180 | CAP-AIR CLEANER | |
| 12-13 | 11N6-24520 | ELEMENT-PRIMARY | |
| 12-14 | 11N6-24530 | ELEMENT-SAFETY | |
| 12-15 | E211-2105 | VALVE-VACUUM | |
| 12-16 | 11EM-21060 | NUT-WING | |
| 12-17 | 11EM-21070 | NUT-WING | |
| 12-2 | 14EA-23060 | CLAMP-BAND | |
| 13 | 72N7-55100 | HOOD WA-A/C | |
| 14 | 11N8-41070 | TANK-RESERVOIR | |
| 14-1 | MH100020 | CAP-RESERVOIR TANK | |
| 15 | 11N8-41080 | CLAMP-RESERVOIR TANK | |
| 16 | E111-2504 | HOSE | |
| 17 | S520-015000 | CLAMP-HOSE,S/DRIVE | |
| 18 | S681-100400 | GROMMET | |
| 19 | S035-082026 | BOLT-W/WASHER | |
| 20 | S037-122556 | BOLT-W/WASHER |
