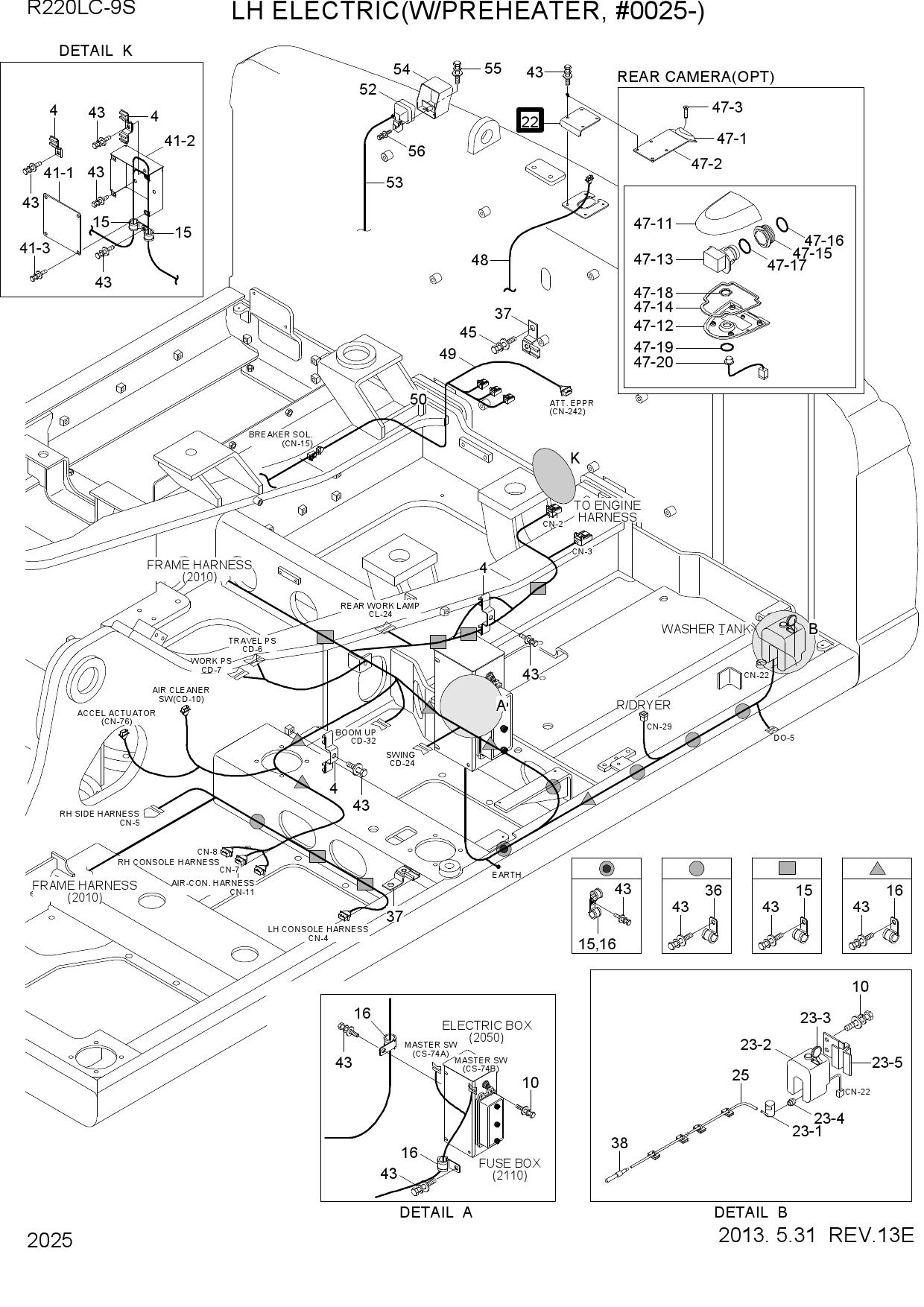

Запчасти для гусеничных экскаваторов Hyundai R220LC-9S LH ELECTRIC(WITH PREHEATER, #0025-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 21N4-01130 | PLATE-CLIP | |
| 10 | S035-062026 | BOLT-W/WASHER | |
| 15 | 31L7-10200 | CLAMP-TUBE | |
| 16 | 31L7-10230 | CLAMP | |
| 22 | 21Q6-60030 | PLATE | |
| 23 | 21EG-30630 | WASHER TANK ASSY | |
| 23-1 | 21EG-10130 | PUMP-MOTOR | |
| 23-2 | 21EG-10140 | TANK | |
| 23-3 | 24L3-30660 | CAP | |
| 23-4 | 24L3-30670 | RUBBER-BUSHING | |
| 23-5 | 24L3-30710 | PLATE | |
| 25 | 21EM-30581 | HOSE-RUBBER | |
| 36 | 31L7-10190 | CLAMP-TUBE | |
| 37 | 25D1-10650 | CLIP ASSY | |
| 38 | 21EM-30570 | CONNECTOR-TUBE | |
| 41 | 21Q4-91040 | COVER ASSY | |
| 41 | 21Q4-91041 | COVER ASSY | |
| 41-1 | 21Q4-91070 | COVER | |
| 41-1 | 21Q4-91071 | COVER | |
| 41-2 | 21Q4-91050 | PLATE | |
| 41-2 | 21Q4-91051 | PLATE | |
| 41-3 | S035-081526 | BOLT-W/WASHER | |
| 43 | S037-102026 | BOLT-W/WASHER | |
| 45 | S037-122026 | BOLT-W/WASHER | |
| 47 | 21Q6-60102 | REAR VIEW CAMERA KIT | |
| 47 | 21Q6-60701 | REAR VIEW CAMERA KIT | |
| 47-1 | 21AB-30032 | CAMERA ASSY-REAR | |
| 47-1 | 21AB-30033 | CAMERA ASSY-REAR | |
| N47-11 | 21AB-30110 | COVER-TOP | |
| N47-12 | 21AB-30120 | COVER-BOTTOM | |
| N47-13 | 21AB-30130 | CAMERA & PCB ASSY | |
| N47-14 | 21AB-30140 | GASKET | |
| N47-15 | 21AB-30150 | LENS-WINDOW | |
| N47-16 | 21AB-30160 | O-RING/LENS WINDOW | |
| N47-17 | 21AB-30170 | O-RING-CAM | |
| N47-18 | 21AB-30180 | NUT-VOLUME | |
| N47-19 | 21AB-30190 | O-RING | |
| N47-20 | 21AB-30210 | CABLE ASSY | |
| 47-2 | 21AB-50011 | BRACKET-CAMERA | |
| 47-3 | S141-050102 | SCREW-FLAT HD | |
| 48 | 21Q8-11300 | HARNESS-CAMERA | |
| 49 | 21Q8-11130 | HARNESS-BREAKER | |
| 50 | 21Q8-11110 | HARNESS-TWO WAY | |
| 52 | 21QB-60700 | WORK LAMP ASSY | |
| 53 | 21Q8-11140 | HARNESS-EXTENSION | |
| 54 | 21Q4-47020 | GUARD-BACK LIGHT | |
| 55 | S037-101526 | BOLT-W/WASHER | |
| 56 | S037-102026 | BOLT-W/WASHER |
