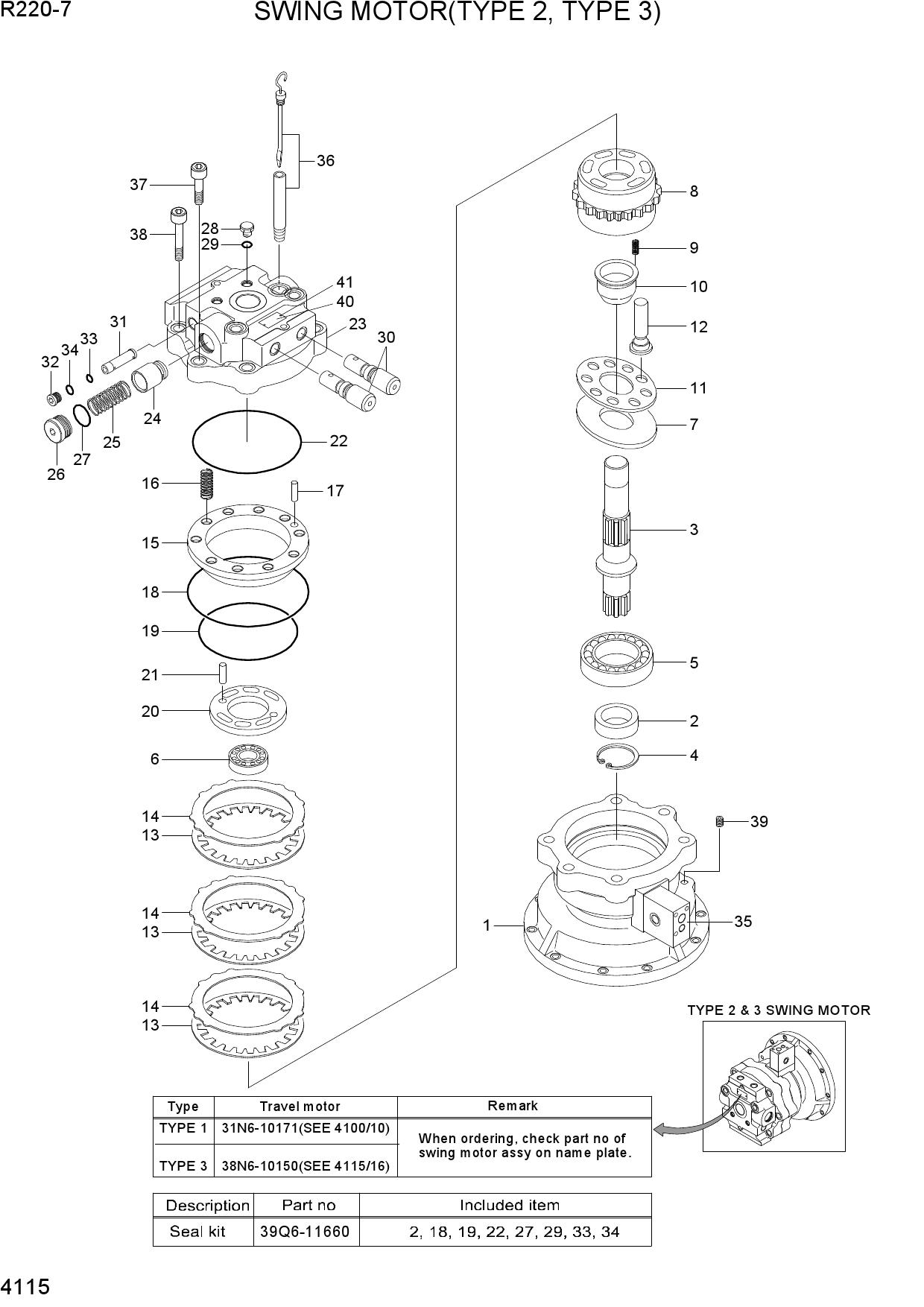

Запчасти для гусеничных экскаваторов Hyundai R220LC-7(INDIA) SWING MOTOR (TYPE2,TYPE3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 38N6-10150 | SWING MOTOR ASSY | |
| 1 | 39Q6-11110 | CASING | |
| *-A | 39Q6-11160 | ROTARY KIT | |
| *-B | 39Q6-11170 | BLOCK KIT-CYLINDER | |
| N8 | 39Q6-11180 | BLOCK-CYLINDER | |
| N9 | 39Q6-41290 | SPRING | |
| *-C | 39Q6-11190 | RETAINER KIT | |
| N10 | 39Q6-11200 | GUIDE-BALL | |
| N11 | 39Q6-11210 | PLATE-RETAINER | |
| N12 | 39Q6-11220 | PISTON ASSY | |
| K2 | 39Q6-11660 | OIL-SEAL | |
| 3 | 39Q6-11120 | SHAFT | |
| 4 | S601-040004 | RING-SNAP | |
| 5 | 39Q6-11130 | BEARING-ROLLER | |
| 6 | 39Q6-11140 | BEARING-NEEDLE | |
| 7 | 39Q6-11150 | PLATE-SWASH | |
| 13 | 39Q6-41361 | PLATE-FRICTION | |
| 14 | 39Q6-41370 | PLATE-SEPERATED | |
| 15 | 39Q6-11250 | PISTON-PARKING | |
| 16 | 39Q6-11260 | SPRING-BRAKE | |
| 17 | S471-800454 | PIN-SPRING | |
| K18 | Y172-043004 | O-RING | |
| K19 | Y172-041004 | O-RING | |
| 20 | 39QB-11270 | PLATE-VALVE | |
| 21 | S471-800254 | PIN-SPRING | |
| K22 | Y172-042004 | O-RING | |
| 23 | 39Q6-11281 | CASING A-VALVE | |
| 24 | 39Q6-11290 | VALVE-CHECK | |
| 25 | 39Q6-11300 | SPRING-CHECK VALVE | |
| 26 | 39Q6-11671 | PLUG | |
| K27 | S631-040004 | O-RING | |
| 28 | 39Q6-41750 | PLUG | |
| K29 | S631-011004 | O-RING | |
| 30 | 39N6-11310 | RELIEF VALVE ASSY | |
| 31 | 39Q6-11420 | REACTIONLESS VALVE ASSY | |
| 32 | 39Q6-11500 | PLUG | |
| K33 | S631-012004 | O-RING | |
| K34 | S631-018004 | O-RING | |
| 35 | 39N6-11510 | VALVE ASSY-TIME DELAY | |
| 36 | 39Q6-11601 | GAUGE-LEVEL | |
| 37 | S109-180456 | BOLT-SOCKET | |
| 38 | S109-180556 | BOLT-SOCKET | |
| 39 | P220-430202 | PLUG-HEX | |
| 40 | 39N6-11650 | NAME PLATE | |
| 41 | 39Q6-41800 | RIVET | |
| K | 39Q6-11700 | SEAL KIT |
