- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING(TRAVEL)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(BASE 1)
- PILOT HYD PIPING(BASE 2)
- PILOT HYD PIPING(BASE 3)
- TRAVEL HYD PIPING
- BOOM HYD PIPING(5.68M,STD)
- BOOM GREASE LUB SYSTEM(5.68M, STD)
- BOOM HYD PIPING(LONG REACH)
- BOOM GREASE LUB SYSTEM(LONG REACH)
- ARM HYD PIPING
- ARM HYD PIPING(LONG REACH)
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING KIT
- SINGLE PEDAL(DOUBLE ACTING)
- SINGLE ACTING MAIN PIPING KIT

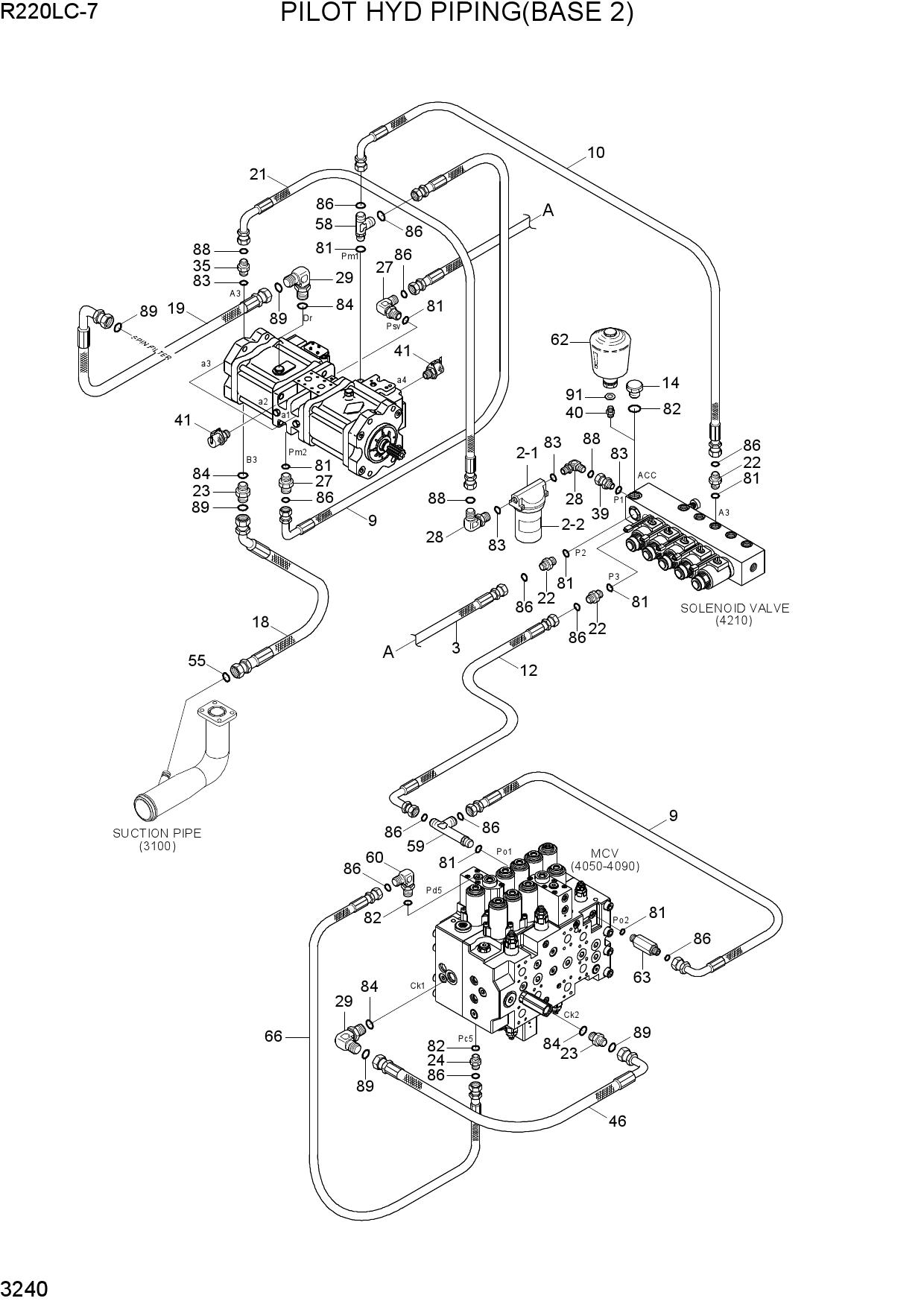

Запчасти для гусеничных экскаваторов Hyundai R220LC-7(INDIA) PILOT HYD PIPING(BASE 2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31E3-0017 | FILTER-LINE | |
| 2-1 | 31E3-0044 | BODY | |
| 2-2 | 31E3-0018 | ELEMENT-LINE FILTER | |
| 3 | P910-042008 | HOSE ASSY-ORFS 0X0 | |
| 9 | P930-042012 | HOSE ASSY-ORFS 0X90 | |
| 10 | P910-042010 | HOSE ASSY-ORFS 0X0 | |
| 12 | P930-042040 | HOSE ASSY-ORFS 0X90 | |
| 14 | P220-110103 | PLUG-HEX | |
| 18 | P920-122009 | HOSE ASSY-ORFS 0X45 | |
| 19 | P930-122012 | HOSE ASSY-ORFS 0X90 | |
| 21 | P930-082012 | HOSE ASSY-ORFS 0X90 | |
| 22 | X500-110001 | CONNECTOR-ORFS | |
| 23 | X500-110004 | CONNECTOR-ORFS | |
| 24 | X500-110013 | CONNECTOR-ORFS | |
| 27 | X520-110001 | ELBOW-90,ORFS | |
| 28 | X520-110003 | ELBOW-90,ORFS | |
| 29 | X520-110004 | ELBOW-90,ORFS | |
| 35 | X500-110003 | CONNECTOR-ORFS | |
| 39 | 31N6-22400 | ADAPTOR | |
| 40 | 31N6-24200 | CONNECTOR | |
| 41 | 31EK-11130 | COUPLING-SCREW | |
| 41 | 31EK-11130 | COUPLING-SCREW | |
| 46 | P930-127015 | HOSE ASSY-ORFS 0X90 | |
| 55 | S621-018001 | O-RING | |
| 58 | X820-045151 | TEE-R/TYPE,ORFS | |
| 59 | 31N4-22150 | TEE-LONG,ORFS | |
| 60 | X520-110012 | ELBOW-90,ORFS | |
| 62 | 31E3-3187 | ACCUMULATOR | |
| 63 | X511-104513 | CONNECTOR-LONG,ORFS | |
| 66 | P910-042016 | HOSE ASSY-ORFS 0X0 | |
| 81 | S631-011004 | O-RING | |
| 82 | S631-014004 | O-RING | |
| 83 | S631-018004 | O-RING | |
| 84 | S631-024004 | O-RING | |
| 86 | S621-011001 | O-RING | |
| 88 | S621-014001 | O-RING | |
| 89 | S621-018001 | O-RING | |
| 91 | X321-021001 | RING-ED |
