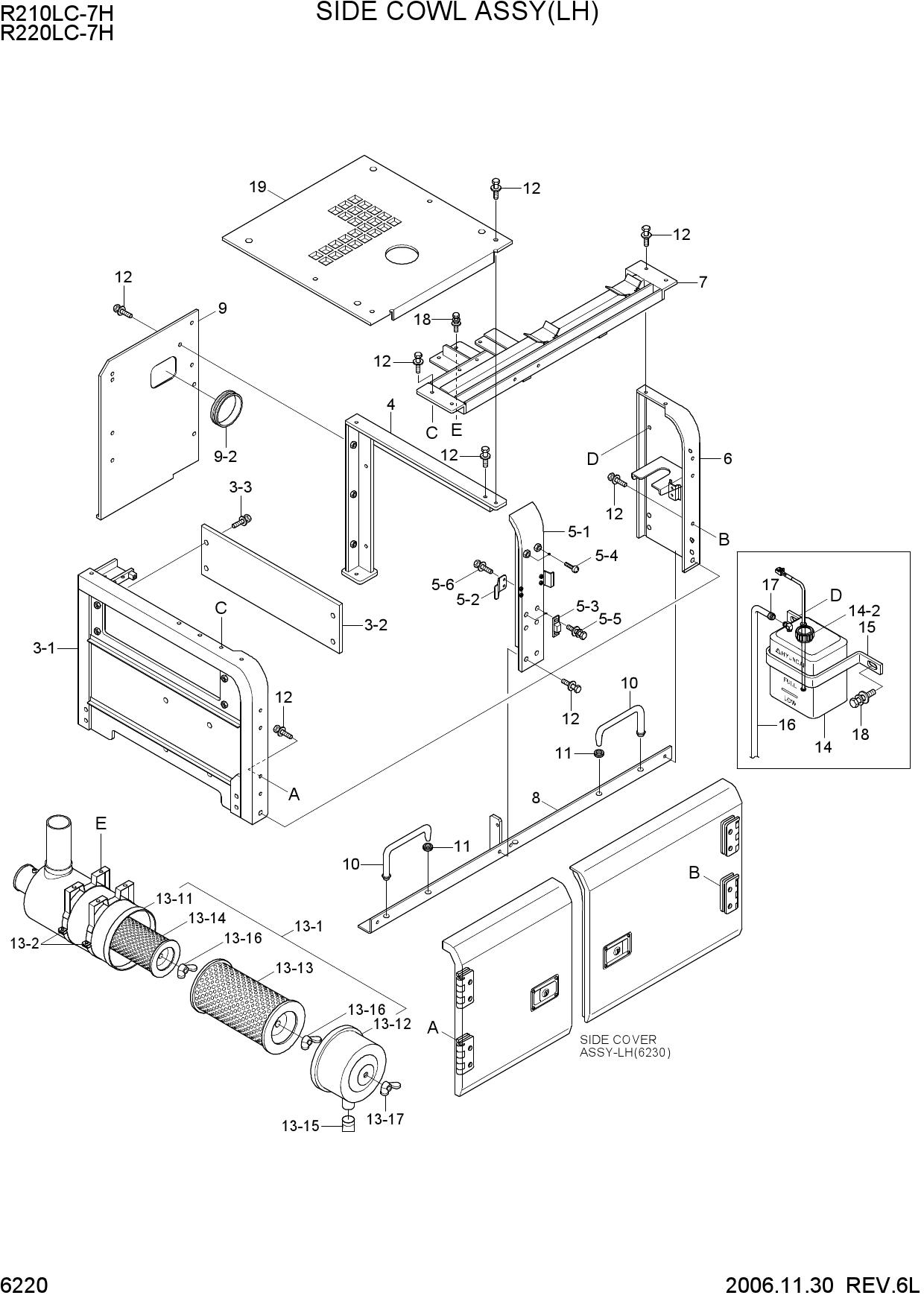

Запчасти для гусеничных экскаваторов Hyundai R210_220LC-7H SIDE COWL ASSY(LH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 71N6-82002 | SIDE COWL ASSY-LH | |
| * | 71N6-82002Y | SIDE COWL ASSY-LH | |
| * | 71N6-82003 | SIDE COWL ASSY-LH | |
| * | 71N6-72002 | SIDE COWL ASSY-LH | |
| * | 71N6-72002Y | SIDE COWL ASSY-LH | |
| * | 71N6-72003 | SIDE COWL ASSY-LH | |
| 3 | 71N6-82300 | SUPPORT ASSY-LH(FR) | |
| 3-1 | 71N6-82310 | SUPPORT WA-LH(FR) | |
| 3-2 | 71N8-52322 | COVER-PLATE | |
| 3-3 | S037-122552 | BOLT-W/WASHER | |
| 4 | 71N6-82410 | SUPPORT W.A-LH(MID1) | |
| 5 | 71N6-52492 | SUPPORT ASSY-LH(MID2) | |
| 5-1 | 71N6-52403 | SUPPORT WA-LH,MID | |
| 5-2 | 71N8-52492 | PLATE-LOCK | |
| 5-3 | 71EE-53540 | STOPPER-B | |
| 5-4 | 71EH-13150 | BUMPER-RUBBER | |
| 5-5 | S035-062022 | BOLT-W/WASHER | |
| 5-6 | S037-122052 | BOLT-W/WASHER | |
| 6 | 71N6-82502 | SUPPORT WA-LH(RR) | |
| 7 | 71N6-82601 | SUPPORT-E/G HOOD | |
| 8 | 71N6-52703 | SUPPORT-LH,BOTTOM | |
| 9 | 71N6-82901 | SCREEN ASSY-MCV | |
| 9-2 | S791-030066 | GROMMET-PLATE | |
| 10 | 71N8-52950 | STAY-SIDE COVER | |
| 11 | S681-100400 | GROMMET | |
| 12 | S037-122552 | BOLT-W/WASHER | |
| 13 | 11N6-20010 | AIR CLEANER SUB ASSY | |
| 13 | 11N6-20011 | AIR CLEANER SUB ASSY | |
| 13-1 | 11N6-20100 | AIR CLEANER ASSY | |
| 13-1 | 11N6-20102 | AIR CLEANER ASSY | |
| 13-11 | 11N6-20110 | BODY-AIR CLEANER | |
| 13-11 | 11N6-20112 | BODY-AIR CLEANER | |
| 13-12 | 11N6-20120 | CAP-AIR CLEANER | |
| 13-12 | 11LD-40180 | CAP-AIR CLEANER | |
| *-1 | 11EM-T000-A | ELEMENT SET-A/CLEAN | |
| 13-13 | 11EM-21041 | ELEMENT-PRIMARY | |
| 13-13 | 11N6-24520 | ELEMENT-PRIMARY | |
| 13-14 | 11EM-21051 | ELEMENT-SAFETY | |
| 13-14 | 11N6-24530 | ELEMENT-SAFETY | |
| 13-15 | E211-2105 | VALVE-VACUUM | |
| 13-16 | 11EM-21060 | NUT-WING | |
| 13-17 | 11EM-21070 | NUT-WING | |
| 13-2 | 14EA-23060 | CLAMP-BAND | |
| 14 | 11N8-41070 | TANK-RESERVOIR | |
| 14-2 | MH100020 | CAP-RESERVOIR TANK | |
| 15 | 11N8-41080 | CLAMP-RESERVOIR TANK | |
| 16 | E111-2504 | HOSE | |
| 17 | S520-015000 | CLAMP-HOSE,S/DRIVE | |
| 18 | S035-082022 | BOLT-W/WASHER | |
| 19 | 71N6-55101 | HOOD WA-A/CLEANER |
