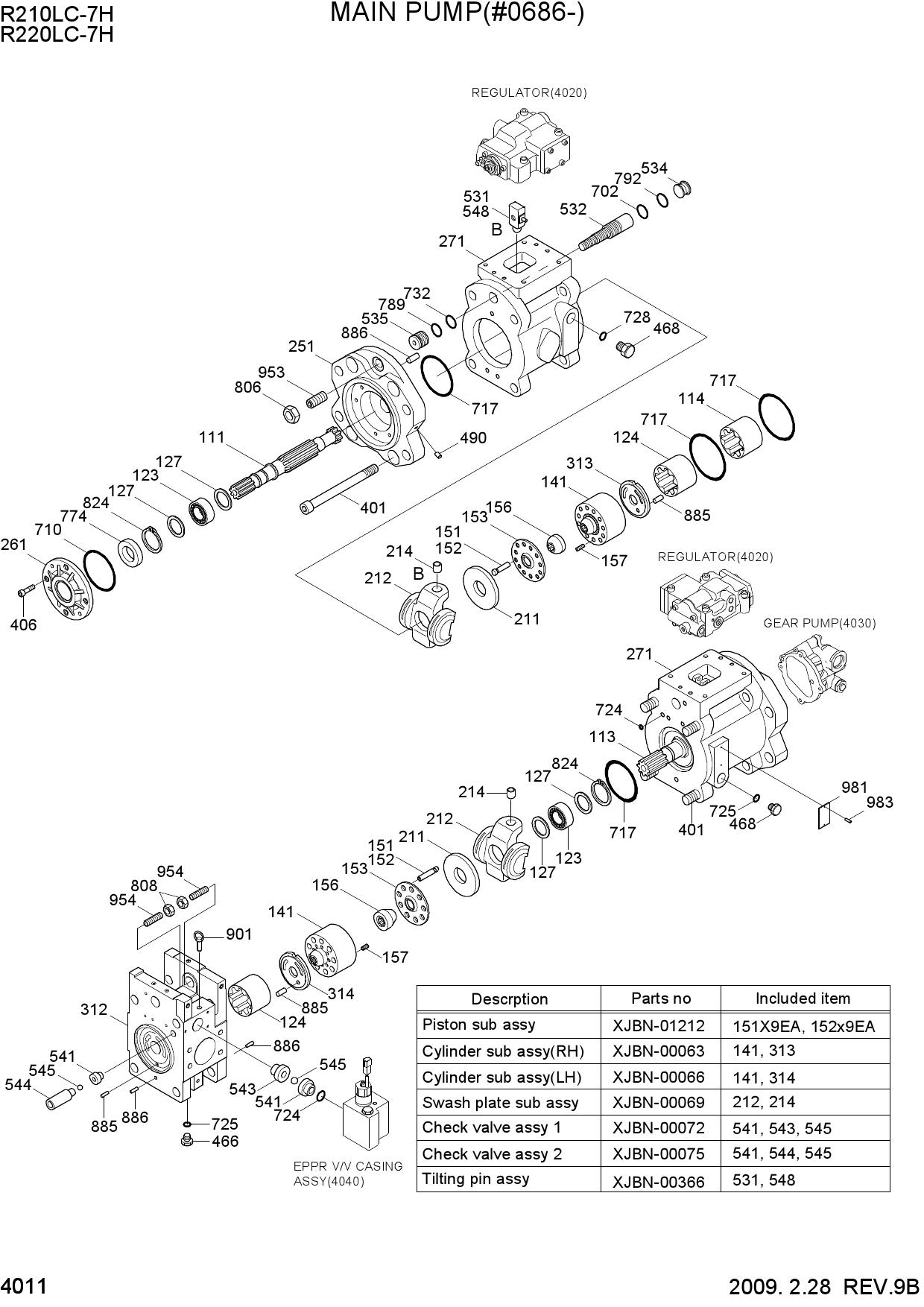

Запчасти для гусеничных экскаваторов Hyundai R210_220LC-7H MAIN PUMP(#0686-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 31N6-10030 | MAIN PUMP ASSY | |
| *-1 | XJBN-01580 | MAIN PUMP UNIT | |
| 111 | XJBN-00077 | SHAFT-DRIVE,FR | |
| 113 | XJBN-00078 | SHAFT-DRIVE,RR | |
| 114 | XJBN-00351 | COUPLING-SPLINE | |
| 123 | XJBN-00880 | BEARING-STEEL | |
| 124 | XJBN-00786 | BEARING-NEEDLE | |
| 127 | XJBN-00081 | SPACER-BEARING | |
| N141 | XJBN-00067 | BLOCK-CYLINDER | |
| N151 | XJBN-01032 | PISTON | |
| N152 | XJBN-01214 | SHOE | |
| 153 | XJBN-00945 | PLATE-SET | |
| 156 | XJBN-00083 | BUSHING-SPHERICAL | |
| 157 | XJBN-00084 | SPRING-CYLINDER | |
| 211 | XJBN-00085 | PLATE-SHOE | |
| N212 | XJBN-00070 | PLATE-SWASH | |
| 214 | XJBN-00071 | BUSHING-TILTING | |
| 251 | XJBN-00086 | SUPPORT | |
| 261 | XJBN-00087 | COVER(F)-SEAL | |
| 271 | XJBN-01034 | CASING-PUMP | |
| 312 | XJBN-00089 | BLOCK-VALVE | |
| 313 | XJBN-00738 | PLATE-VALVE,RH | |
| 314 | XJBN-00739 | PLATE-VALVE,LH | |
| 401 | XJBN-00090 | SCREW-HEX SOC HD | |
| 406 | XJBN-00029 | SCREW-HEX | |
| 466 | XJBN-00030 | PLUG | |
| 468 | XJBN-00031 | PLUG | |
| 490 | XJBN-00032 | PLUG | |
| N531 | XJBN-00358 | PIN-TILTING | |
| 532 | XJBN-00955 | PISTON-SERVO | |
| 534 | XJBN-01037 | STOPPER(L) | |
| 535 | XJBN-00093 | STOPPER(S) | |
| N541 | XJBN-00859 | SEAT | |
| N543 | XJBN-00860 | STOPPER | |
| N544 | XJBN-00861 | STOPPER | |
| 545 | XJBN-00038 | BALL-STEEL | |
| N548 | XJBN-00360 | PIN-FEED BACK | |
| 702 | XJBN-00918 | O-RING | |
| 710 | XJBN-00095 | O-RING | |
| 717 | XJBN-00096 | O-RING | |
| 724 | XJBN-00044 | O-RING | |
| 725 | XJBN-00045 | O-RING | |
| 728 | XJBN-00046 | O-RING | |
| 732 | XJBN-00912 | O-RING | |
| 744 | XJBN-00962 | SEAL-OIL | |
| 789 | XJBN-00099 | RING-BACK UP | |
| 792 | XJBN-00100 | RING-BACK UP | |
| 800 | XJBN-00101 | NUT | |
| 808 | XJBN-00051 | NUT | |
| 824 | XJBN-00102 | RING-SNAP | |
| 885 | XJBN-00103 | PIN-VALVE PLATE | |
| 886 | XJBN-00365 | PIN-SPRING | |
| 901 | XJBN-00104 | BOLT-EYE | |
| 953 | XJBN-00105 | SCREW-SET | |
| 954 | XJBN-00106 | SCREW-SET | |
| 981 | XJBN-00156 | NAME PLATE | |
| 983 | XJBN-00455 | PIN | |
| 011 | XJBN-01212 | PISTON SUB ASSY | |
| 013 | XJBN-00063 | CYLINDER ASSY(RH) | |
| 014 | XJBN-00066 | CYLINDER ASSY(LH) | |
| 030 | XJBN-00069 | SWASH PLATE SUB ASSY | |
| 041 | XJBN-00072 | CHECK VALVE ASSY 1 | |
| 042 | XJBN-00075 | CHECK VALVE ASSY 2 | |
| 530 | XJBN-00366 | TILTING PIN ASSY |
