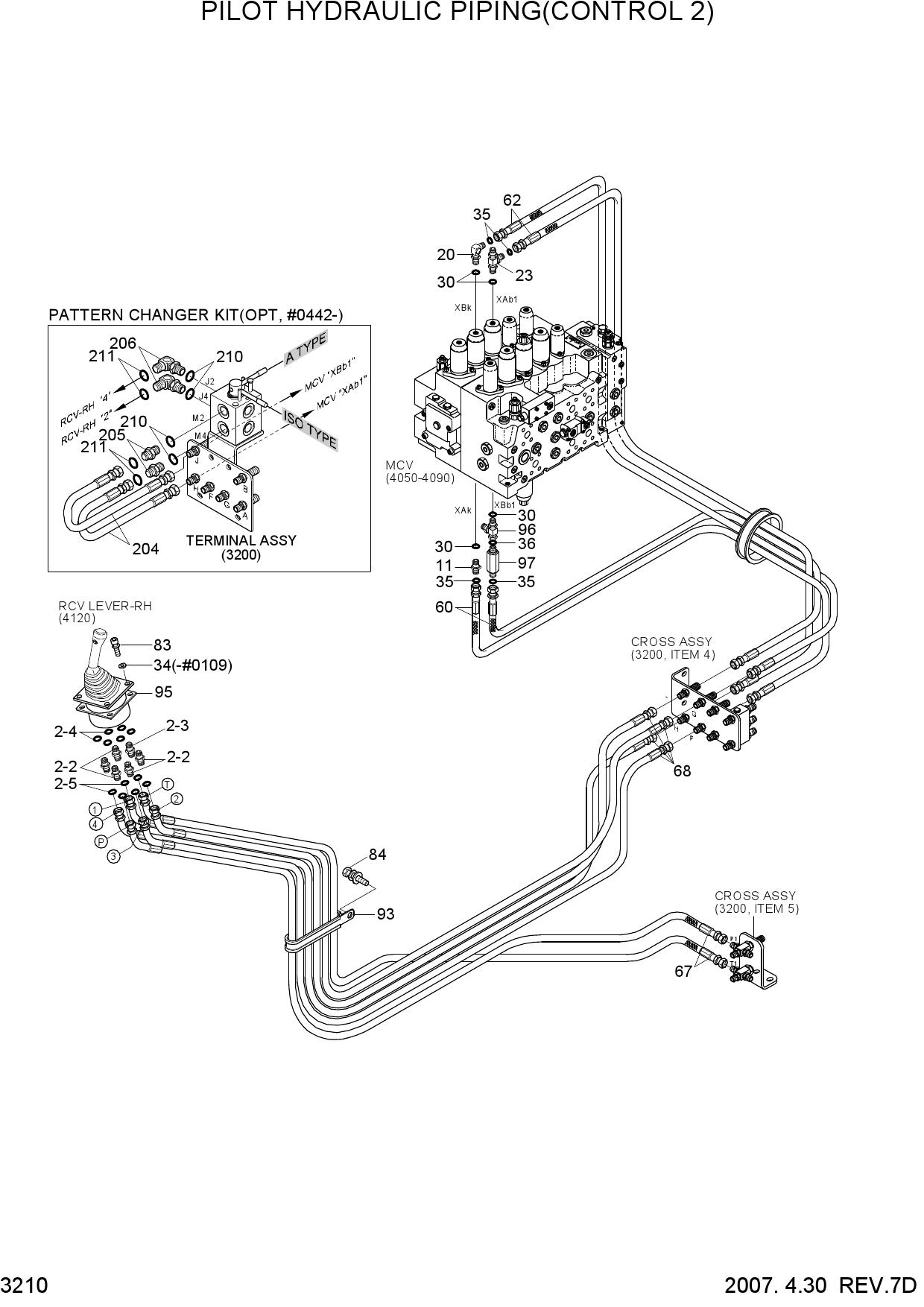

Запчасти для гусеничных экскаваторов Hyundai R210NCL-7 PILOT HYDRAULIC PIPING(CONTROL 2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31N6-20210 | RCV SUB ASSY-RH | |
| 2 | 31N6-25210 | RCV SUB ASSY-RH | |
| 2-2 | P010-110002 | CONNECTOR | |
| 2-2 | X500-110001 | CONNECTOR-ORFS | |
| 2-3 | 31EK-20100 | FILTER-LAST GUARD | |
| 2-3 | 31N6-25060 | FILTER-LAST GUARD | |
| 2-4 | S631-011004 | O-RING | |
| 2-5 | S621-011001 | O-RING | |
| 11 | P010-110013 | CONNECTOR | |
| 11 | X500-110013 | CONNECTOR-ORFS | |
| 20 | P020-110012 | ELBOW-90 | |
| 20 | X520-110012 | ELBOW-90,ORFS | |
| 23 | P320-060404 | TEE-RUN TYPE | |
| 23 | X820-065151 | TEE-R/TYPE,ORFS | |
| 30 | S631-014004 | O-RING | |
| 34 | S403-062006 | WASHER-PLAIN | |
| 35 | S621-011001 | O-RING | |
| 36 | S621-012001 | O-RING | |
| 60 | P400-042024 | HOSE ASSY-COMPACT | |
| 60 | X400-042024 | HOSE ASSY-SYNFLEX,ORFS | |
| 62 | P400-042034 | HOSE ASSY-COMPACT | |
| 62 | X400-042034 | HOSE ASSY-SYNF,ORFS | |
| 67 | P850-042028 | HOSE ASSY-SYN 0X45 | |
| 67 | X410-042028 | HOSE ASSY-SYNFLEX,ORFS | |
| 68 | P850-042036 | HOSE ASSY-SYN 0X45 | |
| 68 | X410-042036 | HOSE ASSY-SYNFLEX,ORFS | |
| 83 | S175-060256 | SCREW-SOCKET RD HD | |
| 83 | S035-063046 | BOLT-W/WASHER | |
| 84 | S037-102022 | BOLT-W/WASHER | |
| 84 | S037-102026 | BOLT-W/WASHER | |
| 93 | 31E7-0312 | CLAMP-HOSE | |
| 95 | 31M6-51061 | SHIM(3.2T) | |
| 96 | 31N6-22030 | TEE-SWIVEL NUT | |
| 96 | X840-525151 | TEE-R/TYPE,ORFS | |
| 97 | 31N6-22100 | VALVE-SHOCKLESS | |
| 97 | 31N6-22350 | VALVE-SHOCKLESS | |
| 204 | P910-042008 | HOSE ASSY-ORFS 0X0 | |
| 205 | X500-110001 | CONNECTOR-ORFS | |
| 206 | X520-110001 | ELBOW-90,ORFS | |
| 210 | S631-011004 | O-RING | |
| 211 | S621-011001 | O-RING |
