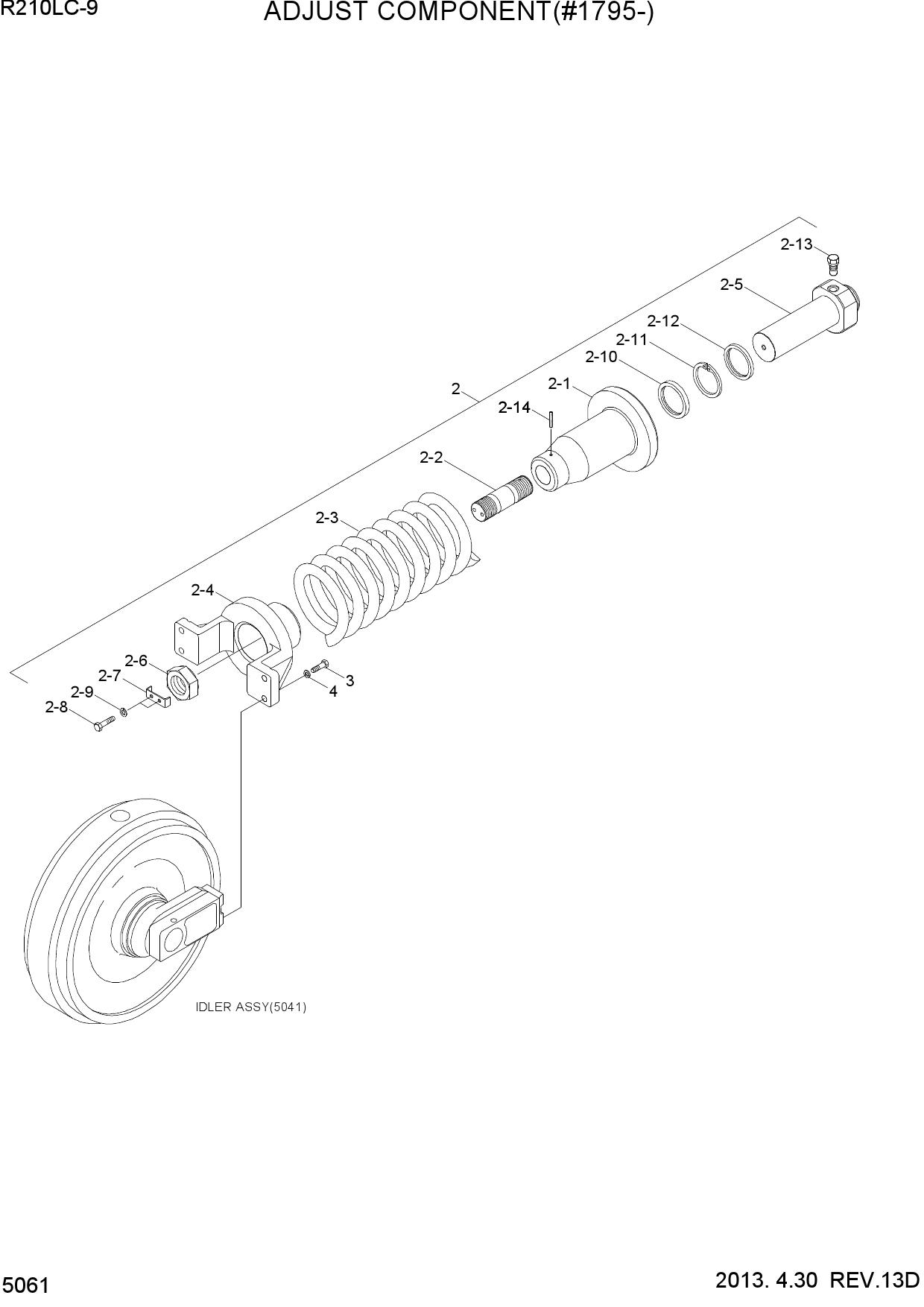

Запчасти для гусеничных экскаваторов Hyundai R210LC-9 ADJUST COMPONENT(#1795-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 81Q6-15030 | ADJUST COMPONENT | |
| * | 81Q6-15031 | ADJUST COMPONENT | |
| 2 | 81Q6-14030 | TENSION CYLINDER ASSY | |
| 2-1 | 81Q6-14300 | BODY | |
| 2-2 | 81Q6-14310 | TIE BAR | |
| 2-3 | 81Q6-14320 | SPRING | |
| 2-4 | 81Q6-14330 | BRACKET | |
| 2-5 | 81Q6-14410 | ROD | |
| 2-6 | 81Q6-14340 | LOCK NUT | |
| 2-7 | 81Q6-14350 | LOCK PLATE | |
| 2-8 | 81Q6-14360 | BOLT-HEX | |
| 2-9 | 81Q6-14370 | SPRING WASHER | |
| 2-10 | 81Q6-14380 | ROD SEAL | |
| 2-11 | 81Q6-14390 | BACK UP RING | |
| 2-12 | 81Q6-14400 | DUST SEAL | |
| 2-13 | 81N6-14240 | VALVE-GREASE | |
| 2-14 | 81Q6-14480 | SPRING PIN | |
| 3 | S017-160506 | BOLT-HEX | |
| 4 | S411-160006 | WASHER-SPRING |
