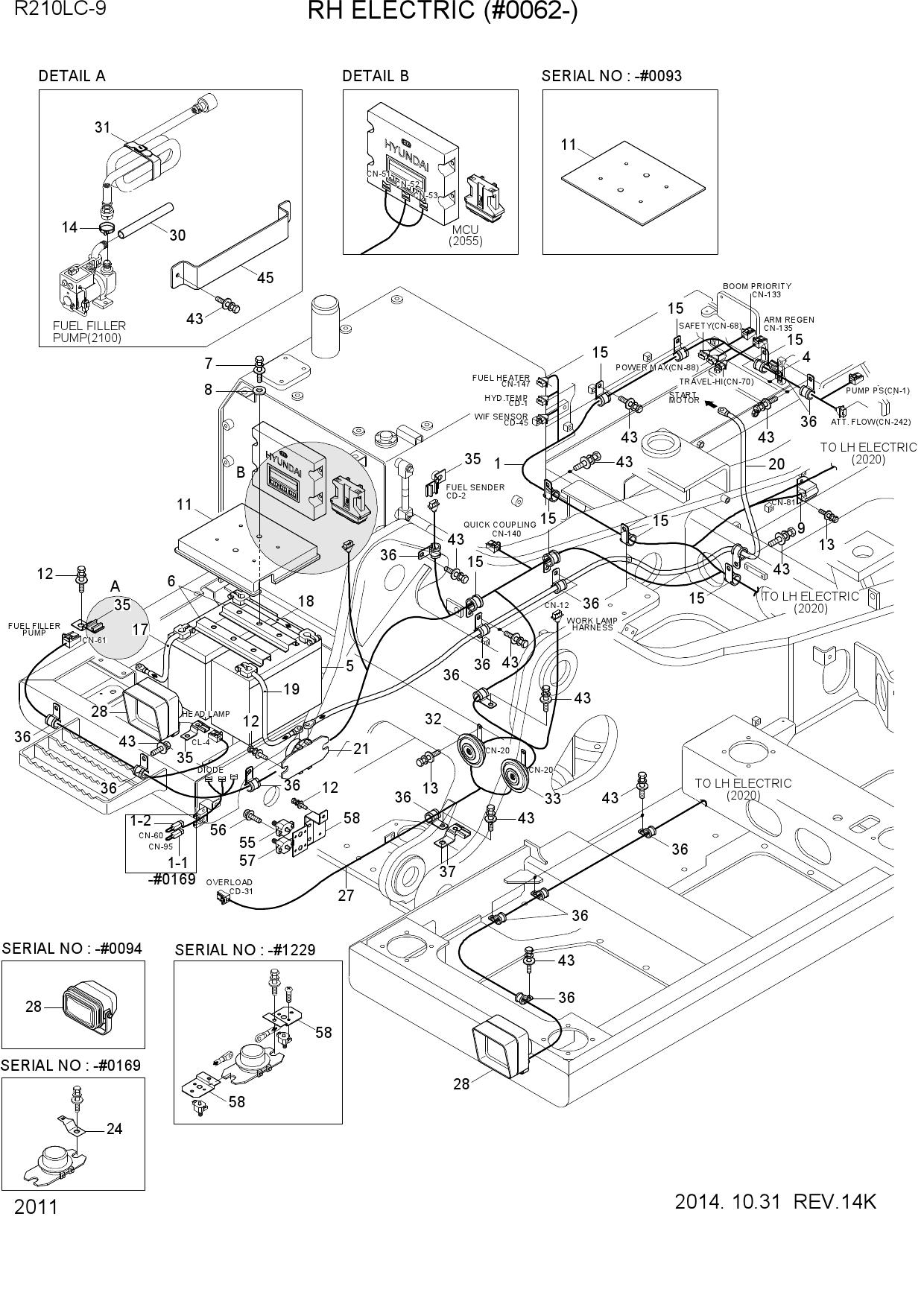

Запчасти для гусеничных экскаваторов Hyundai R210LC-9 RH ELECTRIC (#0062-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 21Q6-10105 | HARNESS-FRAME | |
| 1 | 21Q6-10106 | HARNESS-FRAME | |
| 1 | 21Q6-10107 | HARNESS-FRAME | |
| 1 | 21Q6-10108 | HARNESS-FRAME | |
| 1 | 21Q6-10109 | HARNESS-FRAME | |
| 1 | 21Q6-11700 | HARNESS-FRAME | |
| 1 | 21Q6-11701 | HARNESS-FRAME | |
| 1 | 21Q6-11702 | HARNESS-FRAME | |
| 1 | 21Q6-11703 | HARNESS-FRAME | |
| 1 | 21Q6-11704 | HARNESS-FRAME | |
| 1 | 21Q6-11804 | HARNESS-FRAME | |
| 1-1 | 21N4-01310 | LINK-FUSIBLE(30A) | |
| 1-2 | 21N4-01320 | LINK-FUSIBLE(60A) | |
| 1-3 | 21NB-10710 | RESISTOR | |
| 1-4 | 21EA-50570 | DIODE-FE3D | |
| 1-5 | 21EA-50550 | DIODE | |
| 4 | 21N4-01130 | PLATE-CLIP | |
| 5 | 21E6-20270 | BATTERY | |
| 6 | 21Q4-60400 | BAR-BATTERY | |
| 7 | S017-102656 | BOLT-HEX | |
| 8 | S403-10500B | WASHER-PLAIN | |
| 9 | 21N4-46800 | BUZZER-BACK | |
| 11 | 21Q4-60300 | COVER ASSY-BATTERY | |
| 11 | 21Q6-60300 | COVER ASSY-BATTERY | |
| 11 | 21Q6-60301 | COVER ASSY-BATTERY | |
| 12 | S035-083026 | BOLT-W/WASHER | |
| 12 | S035-083026 | BOLT-W/WASHER | |
| 13 | S035-081526 | BOLT-W/WASHER | |
| 14 | S520-032000 | CLAMP-HOSE | |
| 15 | 31L7-10200 | CLAMP-TUBE | |
| 15 | 31L7-10200 | CLAMP-TUBE | |
| 17 | 21EC-40320 | CABLE(BATT-EARTH) | |
| 18 | 21N4-01400 | CABLE(BATT-BATT) | |
| 18 | 21Q6-01400 | CABLE(BATT-BATT) | |
| 19 | 21Q6-20520 | CABLE(BATT-BATT RY) | |
| 20 | 21EA-60611 | CABLE(BATT RY-STARTER) | |
| 21 | 21E5-0003 | RELAY-BATTERY | |
| 21 | 21QA-70010 | RELAY-BATTERY | |
| 24 | 21E7-0612 | PLATE-CONNECTOR | |
| 27 | 21Q6-11150 | HARNESS-OVERLOAD | |
| 28 | 21N6-20211 | WORK LAMP ASSY | |
| 28 | 21QB-60700 | WORK LAMP ASSY | |
| 28-1 | S866-240650 | BULB | |
| 30 | 21Q6-21610 | HOSE-OUTLET | |
| 31 | E127-3158 | BAND-FUEL PUMP | |
| 32 | 21N5-10050 | HORN-LOW | |
| 32 | 21N5-10051 | HORN-LOW | |
| 33 | 21N5-10060 | HORN-HIGH | |
| 33 | 21N5-10061 | HORN-HIGH | |
| 34 | 21Q8-11130 | HARNESS-BREAKER | |
| 35 | 25D1-10640 | CLIP ASSY | |
| 36 | 31L7-10190 | CLAMP-TUBE | |
| 37 | 25D1-10650 | CLIP ASSY | |
| 40 | S035-082526 | BOLT-W/WASHER | |
| 43 | S037-101526 | BOLT-W/WASHER | |
| 45 | 21QB-20080 | PLATE-CLAMP | |
| 48 | S037-102526 | BOLT-W/WASHER | |
| 49 | S037-102026 | BOLT-W/WASHER | |
| 49 | S037-102026 | BOLT-W/WASHER | |
| 55 | 21Q4-01160 | CIRCUIT-BREAKER,30A | |
| 55 | 21Q4-01161 | CIRCUIT-BREAKER,30A | |
| 56 | S141-040206 | SCREW-FLAT HD | |
| 56 | S131-042046 | SCREW-W/WASHER | |
| 57 | 21M9-01170 | CIRCUIT-BREAKER,60A | |
| 57 | 21M9-01171 | CIRCUIT-BREAKER,60A | |
| 58 | 21Q8-22300 | PLATE-CIRCUIT BREAKER | |
| 58 | 21Q6-14101 | PLATE | |
| 90 | 21Q6-50410 | ADAPTER |
