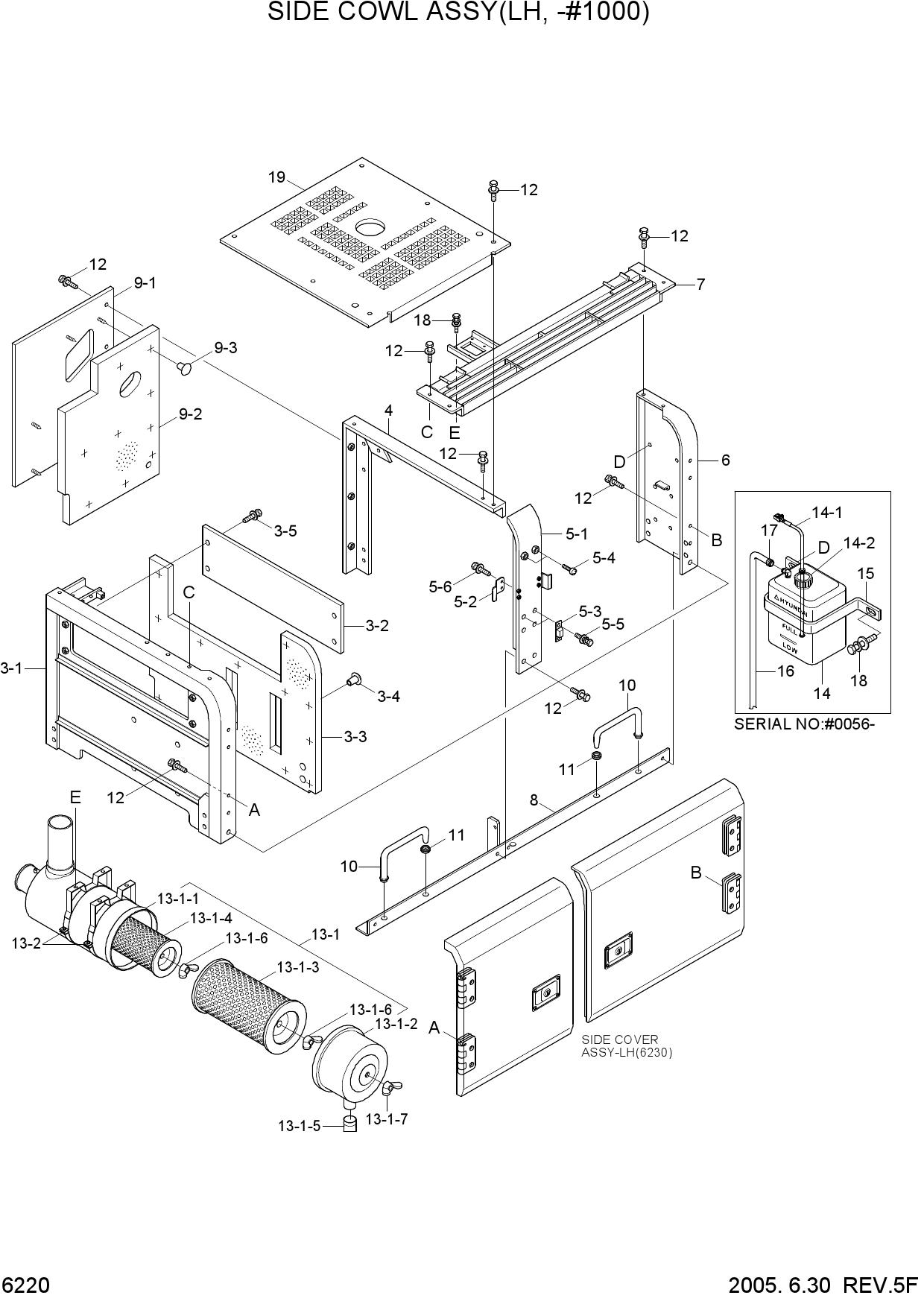

Запчасти для гусеничных экскаваторов Hyundai R210LC-7 SIDE COWL ASSY(LH, -#1000)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 71N6-52002 | SIDE COWL ASSY-LH | |
| * | 71N6-52003 | SIDE COWL ASSY-LH | |
| * | 71N6-52004 | SIDE COWL ASSY-LH | |
| * | 71N6-62000 | SIDE COWL ASSY-LH | |
| * | 71N6-62001 | SIDE COWL ASSY-LH | |
| 3 | 71N6-52302 | SUPPORT ASSY-LH(FR) | |
| 3-1 | 71N6-52312 | SUPPORT WA-LH(FR) | |
| 3-2 | 71N8-52322 | COVER-PLATE | |
| 3-3 | 71N6-52332 | SPONGE | |
| 3-4 | 71EM-51580 | CAP-STUD BOLT | |
| 3-5 | S037-122552 | BOLT-W/WASHER | |
| 4 | 71N6-52411 | SUPPORT WA-LH(MID1) | |
| 5 | 71N6-52492 | SUPPORT ASSY-LH(MID2) | |
| 5-1 | 71N6-52403 | SUPPORT WA-LH,MID | |
| 5-2 | 71N8-52492 | PLATE-LOCK | |
| 5-3 | 71EE-53540 | STOPPER-B | |
| 5-4 | 71EH-13150 | BUMPER-RUBBER | |
| 5-5 | S035-062022 | BOLT-W/WASHER | |
| 5-6 | S037-122052 | BOLT-W/WASHER | |
| 6 | 71N6-52501 | SUPPORT WA-LH(RR) | |
| 6 | 71N6-52502 | SUPPORT WA-LH(RR) | |
| 7 | 71N6-52602 | SUPPORT WA-ENG HOOD | |
| 7 | 71N6-52603 | SUPPORT WA-ENG HOOD | |
| 8 | 71N6-52702 | SUPPORT-LH(BOTTOM) | |
| 8 | 71N6-52703 | SUPPORT-LH,BOTTOM | |
| 9 | 71N6-52902 | SCREEN ASSY-MCV | |
| 9-1 | 71N6-52912 | SCREEN-MCV | |
| 9-2 | 71N6-52921 | SPONGE | |
| 9-3 | 71EM-51580 | CAP-STUD BOLT | |
| 10 | 71N8-52950 | STAY-SIDE COVER | |
| 11 | S681-100400 | GROMMET | |
| 12 | S037-122552 | BOLT-W/WASHER | |
| 13 | 11N6-20010 | AIR CLEANER SUB ASSY | |
| 13-1 | 11N6-20100 | AIR CLEANER ASSY | |
| 13-1-1 | 11N6-20110 | BODY-AIR CLEANER | |
| 13-1-2 | 11N6-20120 | CAP-AIR CLEANER | |
| *-1 | 11EM-T000-A | ELEMENT SET-A/CLEAN | |
| 13-1-3 | 11EM-21041 | ELEMENT-PRIMARY | |
| 13-1-4 | 11EM-21051 | ELEMENT-SAFETY | |
| 13-1-5 | E211-2105 | VALVE-VACUUM | |
| 13-1-6 | 11EM-21060 | NUT-WING | |
| 13-1-7 | 11EM-21070 | NUT-WING | |
| 13-2 | 14EA-23060 | CLAMP-BAND | |
| 14 | 11EN-42330 | TANK-RESERVOIR | |
| 14-1 | 11EM-40070-K | CAP-RESERVOIR TANK | |
| 14-2 | 11EN-42400 | SENSOR-RESERVOIR | |
| 15 | 11ER-42530 | PLATE-CLAMP | |
| 16 | 11E4-4013 | HOSE-INLET | |
| 17 | S520-015000 | CLAMP-HOSE,S/DRIVE | |
| 18 | S035-082022 | BOLT-W/WASHER | |
| 19 | 71N6-55101 | HOOD WA-A/CLEANER |
