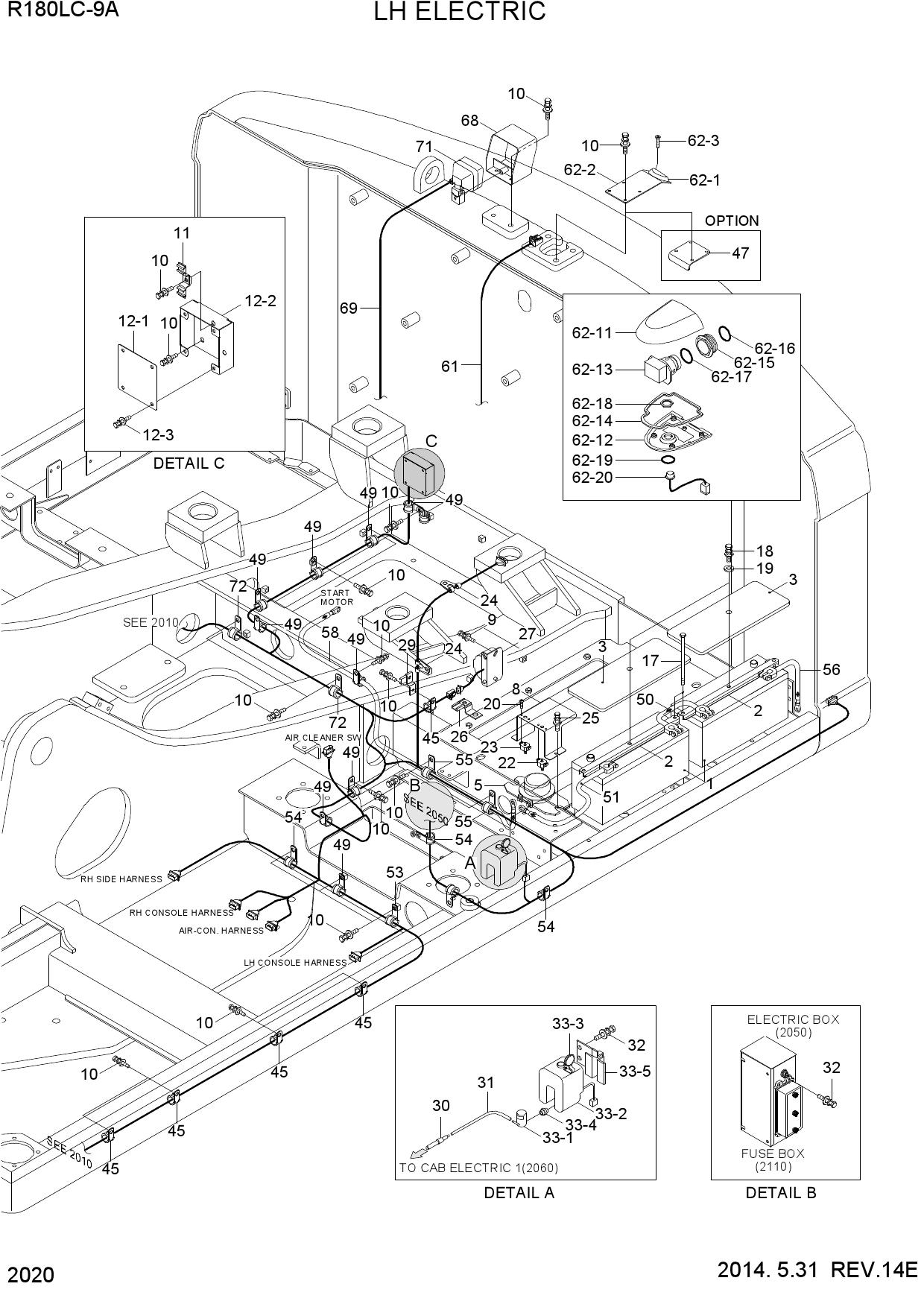

Запчасти для гусеничных экскаваторов Hyundai R180LC-9A LH ELECTRIC
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 21E6-20270 | BATTERY | |
| 2 | 21N5-10150 | BRACKET-BATT | |
| 3 | 21N6-60080 | COVER-BATTERY | |
| 5 | 21QA-70010 | RELAY-BATTERY | |
| 8 | 21Q5-60200 | COVER-BATT RELAY | |
| 9 | S037-101526 | BOLT-W/WASHER | |
| 10 | S037-102026 | BOLT-W/WASHER | |
| 11 | 21N4-01130 | PLATE-CLIP | |
| 12 | 21Q4-91040 | COVER ASSY | |
| 12 | 21Q4-91041 | COVER ASSY | |
| 12-1 | 21Q4-91070 | COVER | |
| 12-1 | 21Q4-91071 | COVER | |
| 12-2 | 21Q4-91050 | PLATE | |
| 12-2 | 21Q4-91051 | PLATE | |
| 12-3 | S035-081526 | BOLT-W/WASHER | |
| 17 | S017-102656 | BOLT-HEX | |
| 18 | S037-102526 | BOLT-W/WASHER | |
| 19 | 21EN-30560 | WASHER-PLAIN | |
| 20 | S131-042046 | SCREW-W/WASHER | |
| 22 | 21Q4-01161 | CIRCUIT-BREAKER,30A | |
| 23 | 21Q6-45100 | CIRCUIT-BREAKER,90A | |
| 24 | 21E9-00170 | CLIP-HARNESS | |
| 25 | S035-082526 | BOLT-W/WASHER | |
| 26 | 25D1-10650 | CLIP ASSY | |
| 27 | 21N4-46800 | BUZZER-BACK | |
| 29 | 25D1-10640 | CLIP ASSY | |
| 30 | 21EM-30570 | CONNECTOR-TUBE | |
| 31 | 21EM-30581 | HOSE-RUBBER | |
| 32 | S035-062026 | BOLT-W/WASHER | |
| 33 | 21EG-30630 | WASHER TANK ASSY | |
| 33-1 | 21EG-10130 | PUMP-MOTOR | |
| 33-2 | 21EG-10140 | TANK | |
| 33-3 | 24L3-30660 | CAP | |
| 33-4 | 24L3-30670 | RUBBER-BUSHING | |
| 33-5 | 24L3-30710 | PLATE | |
| 45 | 31L7-10190 | CLAMP-TUBE | |
| 47 | 21Q5-60150 | PLATE | |
| 49 | 31L7-10200 | CLAMP-TUBE | |
| 50 | 21N5-10160 | CABLE(BATT-BATT) | |
| 51 | 21EG-10110 | CABLE(BATT-BATT RY) | |
| 53 | 31L7-10340 | CLAMP-TUBE INS | |
| 54 | 31L7-10210 | CLAMP-TUBE INS | |
| 55 | 31L7-10230 | CLAMP | |
| 56 | 24L3-01120 | CABLE(BATT-EARTH) | |
| 58 | 21N5-10130 | CABLE(BATT RY-STARTER) | |
| 58 | 21EE-10181 | CABLE-START | |
| 61 | 21Q8-11300 | HARNESS-CAMERA | |
| 62 | 21Q5-60102 | CAMERA ASSY-REAR VIEW | |
| 62-1 | 21AB-30033 | CAMERA ASSY-REAR | |
| N62-11 | 21AB-40110 | COVER-TOP | |
| N62-12 | 21AB-30120 | COVER-BOTTOM | |
| N62-13 | 21AB-30131 | CAMERA & PCB ASSY | |
| N62-14 | 21AB-30140 | GASKET | |
| N62-15 | 21AB-30150 | LENS-WINDOW | |
| N62-16 | 21AB-30160 | O-RING/LENS WINDOW | |
| N62-17 | 21AB-30190 | O-RING | |
| N62-18 | 21AB-30180 | NUT-VOLUME | |
| N62-19 | 21AB-30210 | CABLE ASSY | |
| N62-2 | 21Q5-60110 | BRACKET-CAMERA | |
| 62-3 | S141-050102 | SCREW-FLAT HD | |
| 68 | 21Q4-47020 | GUARD-BACK LIGHT | |
| 69 | 21Q8-11140 | HARNESS-EXTENSION | |
| 71 | 21QB-60700 | WORK LAMP ASSY | |
| 71-1 | S866-240650 | BULB | |
| 72 | 31L7-10240 | CLAMP-TUBE INS |
