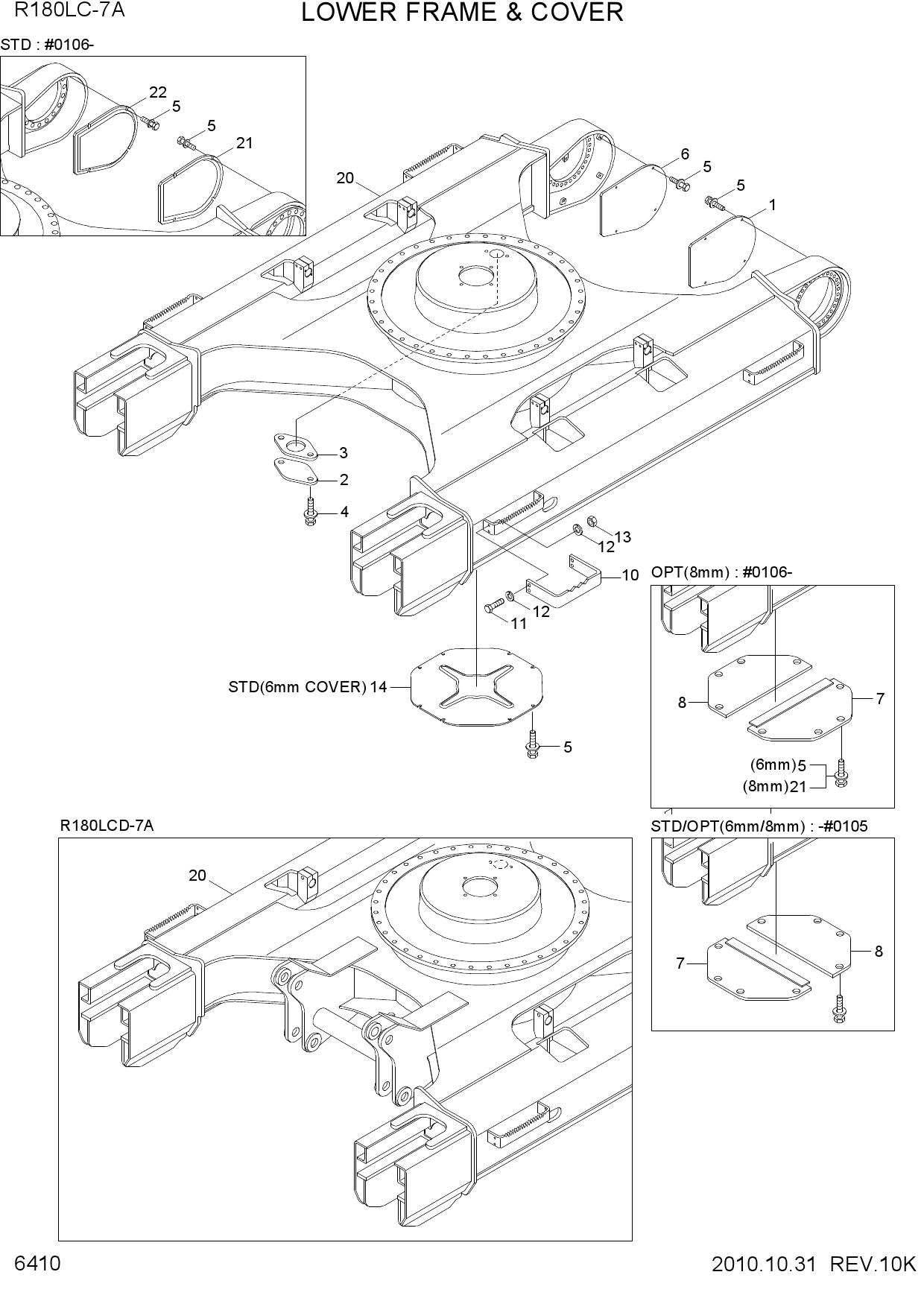

Запчасти для гусеничных экскаваторов Hyundai R180LC-7A LOWER FRAME & COVER
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 51N6-11112BG | COVER WA-T/MOTOR,LH | |
| 1 | 51N6-11112BG | COVER WA-T/MOTOR,LH | |
| 2 | 41N6-10100BG | COVER | |
| 2 | 41N6-10100 | COVER | |
| 3 | 41E9-1306 | SEAL | |
| 4 | S037-102056 | BOLT-W/WASHER | |
| 4 | S037-102556 | BOLT-W/WASHER | |
| 5 | S037-123556 | BOLT-W/WASHER | |
| 6 | 51N6-11122BG | COVER WA-T/MOTOR,RH | |
| 6 | 51N6-11122BG | COVER WA-T/MOTOR,RH | |
| 7 | 51N6-11211BG | COVER-BOTTOM(A) | |
| 7 | 51N6-11230BG | COVER-BOTTOM(A) | |
| 8 | 51N6-11221BG | COVER-BOTTOM(B) | |
| 8 | 51N6-11240BG | COVER-BOTTOM(B) | |
| 10 | 51N6-02640BG | BOARD-FOOT | |
| 10 | 51N6-02650BG | BOARD-FOOT | |
| 11 | S017-16055D | BOLT-HEX | |
| 12 | S441-160006 | WASHER-HARDENED | |
| 13 | S207-161006 | NUT-HEX | |
| 14 | 51Q6-11210BG | COVER-BOTTOM(A) | |
| 20 | 53N5-12010 | LOWER FRAME WA | |
| 20 | 53N5-12011 | LOWER FRAME WA | |
| 20 | 53N5-14010 | LOWER FRAME WA | |
| 20 | 53N5-14011 | LOWER FRAME WA | |
| 20 | 53N5-15010 | LOWER FRAME WA | |
| 20 | 53N5-15011 | LOWER FRAME WA | |
| 21 | 51Q6-11130BG | COVER WA-T/MOTOR,LH | |
| 22 | 51Q6-11140BG | COVER WA-T/MOTOR,RH | |
| 23 | S037-124556 | BOLT-W/WASHER |
