- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYD PIPING(BASE)
- UPPER HYD PIPING(ATTACH)
- UPPER HYD PIPING 1(ADJUST BOOM)
- UPPER HYD PIPING 2(ADJUST BOOM)
- UPPER HYDRAULIC PIPING(TRAVEL)
- DOZER HYD PIPING(R180LCD-7A)
- PILOT HYD PIPING(CONTROL 1)
- PILOT HYD PIPING(CONTROL 2)
- PILOT HYD PIPING(CONTROL 3)
- PILOT HYD PIPING(CONTROL 4)
- PILOT HYD PIPING(CONTROL 5)
- PILOT HYD PIPING(BASE 1)
- PILOT HYD PIPING(BASE 2)
- PILOT HYD PIPING(BASE 3)
- PILOT HYD PIPING(BASE 4)
- TRAVEL HYD PIPING(R180LC-7A)
- TRAVEL HYD PIPING(R180LCD-7A)
- TRAVEL HYD PIPING(R180NLC-7A)
- BOOM HYD PIPING(5.1M, STD)
- BOOM HYD PIPING(ADJUST BOOM)
- BOOM GREASE LUB SYSTEM(5.1M, STD)
- BOOM GREASE LUB SYSTEM(ADJUST BOOM)
- BOOM SAFETY LOCK SYSTEM
- QUICK CLAMP HYD PIPING
- QUICK CLAMP(HOOK TYPE)
- QUICK CLAMP(CLOSE TYPE)
- QUICK CLAMP CYLINDER
- QUICK CLAMP(HOOK TYPE)
- QUICK CLAMP CYLINDER
- QUICK CLAMP(CLOSE TYPE)
- ARM HYD PIPING(2.6M, STD)
- ARM HYD PIPING(2.2M)
- ARM HYD PIPING(3.1M)
- ARM SAFETY LOCK SYSTEM
- ATTACH PIPING KIT(S & D/ACTING)
- DOUBLE ACTING MAIN PIPING(R180LC-7A)
- DOUBLE ACTING MAIN PIPING(R180LCD-7A)
- SINGLE PEDAL(DOUBLE ACTING)
- SINGLE ACTING MAIN PIPING KIT

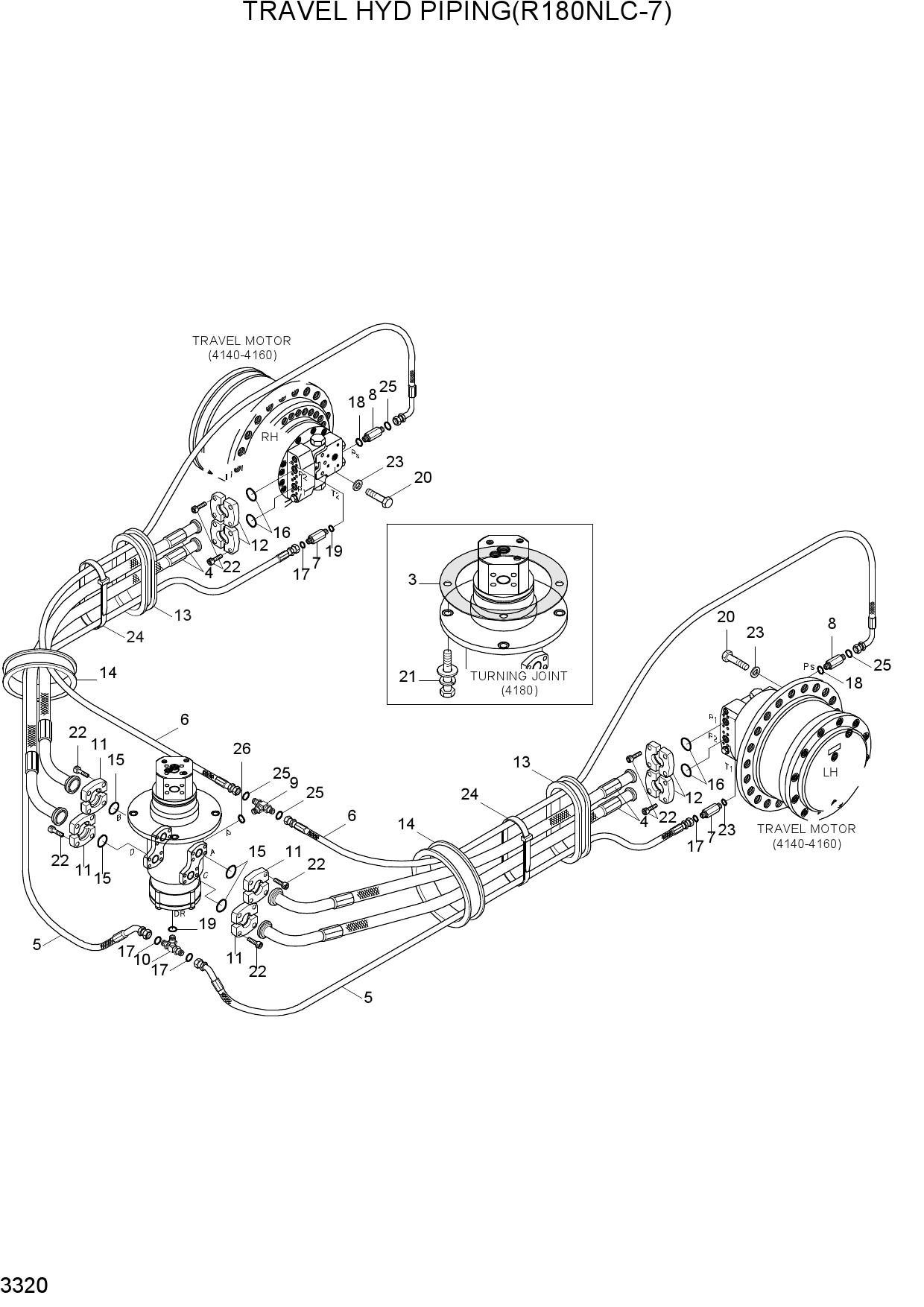

Запчасти для гусеничных экскаваторов Hyundai R180LC-7A TRAVEL HYD PIPING(R180NLC-7A)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 3 | 31N1-40970 | GASKET | |
| 4 | 31N5-40031 | HOSE ASSY | |
| 5 | P920-082039 | HOSE ASSY-ORFS 0X45 | |
| 6 | P930-042048 | HOSE ASSY-ORFS 0X90 | |
| 7 | X511-108534 | CONNECTOR-LONG,ORFS | |
| 8 | X500-110001 | CONNECTOR-ORFS | |
| 9 | X810-065151 | TEE-B/TYPE,ORFS | |
| 10 | X810-085353 | TEE-B/TYPE,ORFS | |
| 11 | P173-120102 | FLANGE-HYD,SPLIT | |
| 12 | P173-160104 | FLANGE-HYD,SPLIT | |
| 13 | S760-141422 | GROMMET | |
| 14 | 31E3-31230 | GROMMET | |
| 15 | Y171-019004 | O-RING | |
| 16 | Y171-024004 | O-RING | |
| 17 | S621-014001 | O-RING | |
| 18 | S631-011004 | O-RING | |
| 19 | S631-018004 | O-RING | |
| 20 | S017-16060D | BOLT-HEX | |
| 21 | S037-123026 | BOLT-W/WASHER | |
| 22 | S109-100306 | BOLT-SOCKET | |
| 23 | S441-160006 | WASHER-HARDENED | |
| 24 | S552-102370 | CLAMP-BAND | |
| 25 | S621-011001 | O-RING | |
| 26 | S631-014004 | O-RING |
