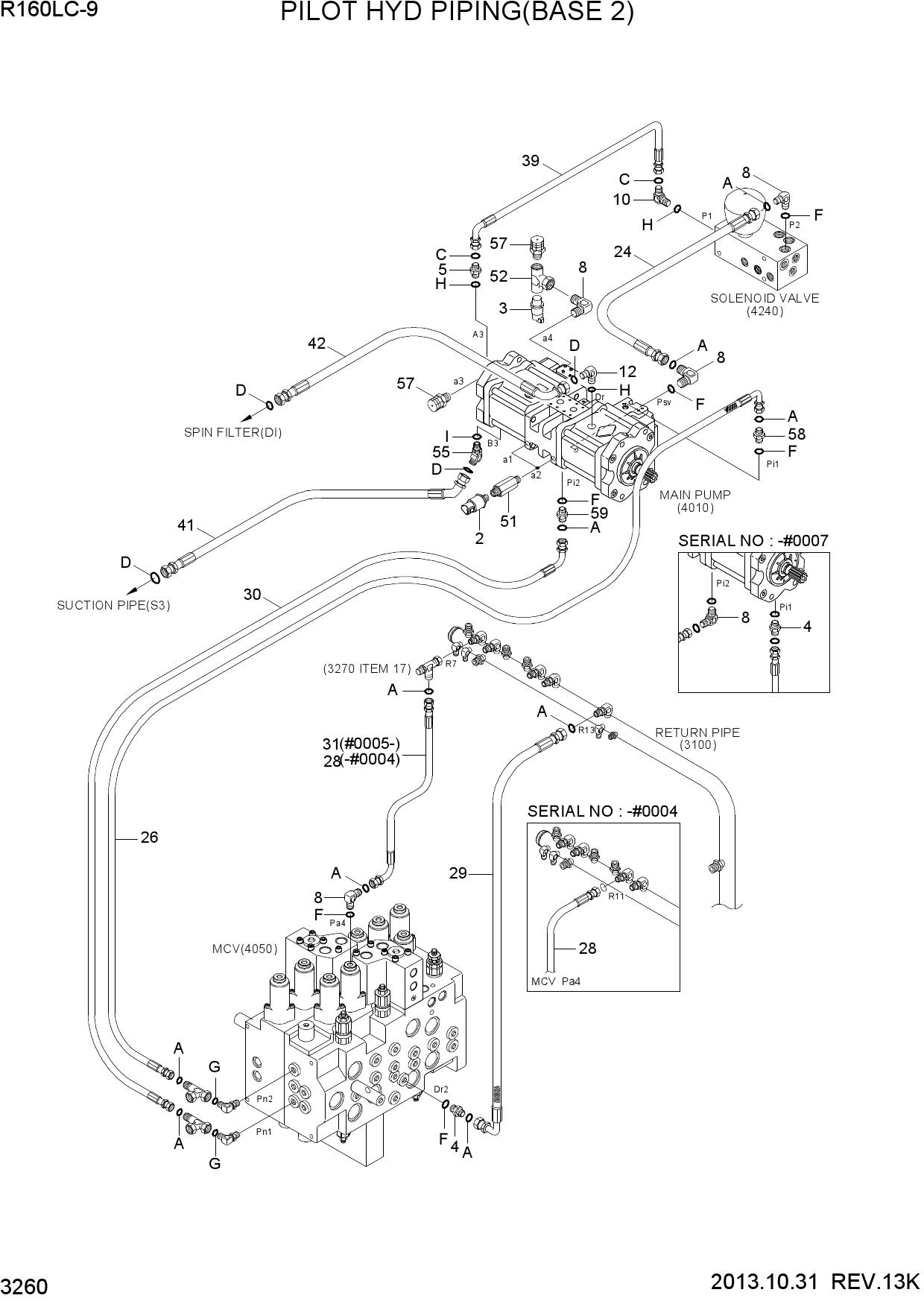

Запчасти для гусеничных экскаваторов Hyundai R160LC-9 PILOT HYD PIPING(BASE 2)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 31Q8-40500 | PRESSURE SENSOR | |
| 2 | 31Q4-40800 | SENSOR-PRESSURE | |
| 3 | 31Q8-40520 | PRESSURE SENSOR | |
| 3 | 31Q4-40830 | SENSOR-PRESSURE | |
| 4 | X500-110001 | CONNECTOR-ORFS | |
| 4 | X500-110001 | CONNECTOR-ORFS | |
| 5 | X500-110003 | CONNECTOR-ORFS | |
| 8 | X520-110001 | ELBOW-90,ORFS | |
| 8 | X520-110001 | ELBOW-90,ORFS | |
| 10 | X520-110003 | ELBOW-90,ORFS | |
| 12 | X520-110015 | ELBOW-90,ORFS | |
| 24 | X400-042008 | HOSE ASSY-SYNFLEX,ORFS | |
| 26 | X400-043045 | HOSE ASSY-SYNF,ORFS | |
| 26 | P930-043052 | HOSE ASSY-ORFS 0X90 | |
| 28 | X420-042008 | HOSE ASSY-SYNFLEX,ORFS | |
| 29 | X420-042009 | HOSE ASSY-ORFS 0X90 | |
| 30 | P930-043042 | HOSE ASSY-ORFS 0X90 | |
| 30 | P930-043043 | HOSE ASSY-ORFS 0X90 | |
| 31 | P930-043043 | HOSE ASSY-ORFS 0X90 | |
| 39 | P930-082009 | HOSE ASSY-ORFS 0X90 | |
| 41 | P920-162011 | HOSE ASSY-ORFS 0X45 | |
| 41 | P910-162010 | HOSE ASSY-ORFS 0X0 | |
| 42 | P930-122014 | HOSE ASSY-ORFS 0X90 | |
| 51 | 31E9-22120 | CONNECTOR | |
| 52 | 31Q4-20170 | TEE-TEST PORT | |
| 55 | X530-110017 | ELBOW-45,ORFS | |
| 57 | 31EK-11130 | COUPLING-SCREW | |
| 58 | 31EK-11130 | COUPLING-SCREW | |
| 59 | 31EK-11130 | COUPLING-SCREW | |
| A | S621-011001 | O-RING | |
| C | S621-014001 | O-RING | |
| D | S621-018001 | O-RING | |
| F | S631-011004 | O-RING | |
| G | S631-014004 | O-RING | |
| H | S631-018004 | O-RING | |
| I | S631-024004 | O-RING |
