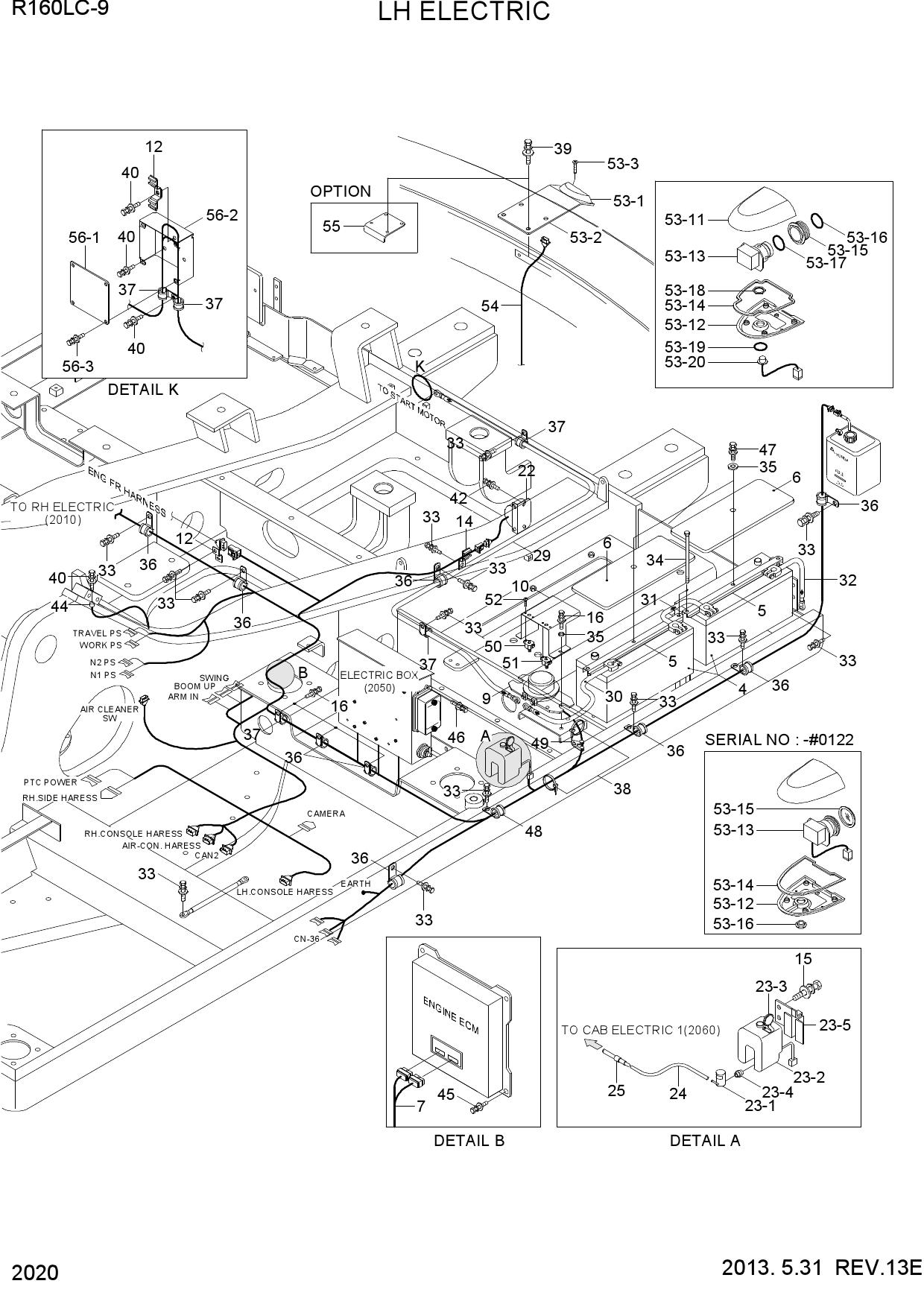

Запчасти для гусеничных экскаваторов Hyundai R160LC-9 LH ELECTRIC
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 4 | 21E6-20270 | BATTERY | |
| 5 | 21N5-10150 | BRACKET-BATT | |
| 6 | 21N6-60080 | COVER-BATTERY | |
| 7 | 21N5-30021 | HARNESS-ECM | |
| 9 | 21E5-0003 | RELAY-BATTERY | |
| 9 | 21QA-70010 | RELAY-BATTERY | |
| 10 | 21Q4-10180 | COVER-BATT RELAY | |
| 12 | 21N4-01130 | PLATE-CLIP | |
| 14 | 25D1-10650 | CLIP ASSY | |
| 15 | S035-062026 | BOLT-W/WASHER | |
| 16 | S035-082526 | BOLT-W/WASHER | |
| 22 | 21N4-46800 | BUZZER-BACK | |
| 23 | 21EG-30630 | WASHER TANK ASSY | |
| 23-1 | 21EG-10130 | PUMP-MOTOR | |
| 23-2 | 21EG-10140 | TANK | |
| 23-3 | 24L3-30660 | CAP | |
| 23-4 | 24L3-30670 | RUBBER-BUSHING | |
| 23-5 | 24L3-30710 | PLATE | |
| 24 | 21EM-30581 | HOSE-RUBBER | |
| 25 | 21EM-30570 | CONNECTOR-TUBE | |
| 29 | 21E2-60031 | CABLE(BATT RY-STARTER) | |
| 30 | 21N8-10300 | CABLE(BATT-RELAY) | |
| 31 | 21N5-10160 | CABLE(BATT-BATT) | |
| 32 | 24L3-01120 | CABLE(BATT-EARTH) | |
| 33 | S037-102026 | BOLT-W/WASHER | |
| 34 | S017-102506 | BOLT-HEX | |
| 35 | 21EN-30560 | WASHER-PLAIN | |
| 36 | 31L7-10190 | CLAMP-TUBE | |
| 37 | 31L7-10200 | CLAMP-TUBE | |
| 38 | S552-035146 | CLAMP-BAND | |
| 40 | S037-101526 | BOLT-W/WASHER | |
| 40 | S037-101526 | BOLT-W/WASHER | |
| 42 | S035-081516 | BOLT-W/WASHER | |
| 44 | 21N4-01560 | HARNESS-EXTENSION | |
| 45 | S035-084026 | BOLT-W/WASHER | |
| 46 | S161-060156 | SCREW-CROSS R/ROUND | |
| 47 | S037-102526 | BOLT-W/WASHER | |
| 48 | 31L7-10230 | CLAMP | |
| 49 | 21E9-00170 | CLIP-HARNESS | |
| 50 | 21M9-01170 | CIRCUIT-BREAKER,60A | |
| 50 | 21M9-01171 | CIRCUIT-BREAKER,60A | |
| 51 | 21Q4-01160 | CIRCUIT-BREAKER,30A | |
| 51 | 21Q4-01161 | CIRCUIT-BREAKER,30A | |
| 52 | S141-040206 | SCREW-FLAT HD | |
| 53 | 21Q5-60100 | CAMERA ASSY-REAR VIEW | |
| 53 | 21Q5-60101 | CAMERA ASSY-REAR VIEW | |
| 53 | 21Q5-60102 | CAMERA ASSY-REAR VIEW | |
| 53-1 | 21AB-30031 | CAMERA ASSY-REAR | |
| 53-1 | 21AB-30032 | CAMERA ASSY-REAR | |
| 53-1 | 21AB-30033 | CAMERA ASSY-REAR | |
| N53-11 | 21AB-40100 | DOME-HOUSING | |
| N53-11 | 21AB-30110 | COVER-TOP | |
| N53-12 | 21AB-40200 | BASE-HOUSING | |
| N53-12 | 21AB-30120 | COVER-BOTTOM | |
| N53-13 | 21AB-40300 | CAMERA & PCB ASSY | |
| N53-13 | 21AB-30130 | CAMERA & PCB ASSY | |
| N53-14 | 21AB-40400 | SEAL | |
| N53-14 | 21AB-30140 | GASKET | |
| N53-15 | 21AB-40500 | WINDOW | |
| N53-15 | 21AB-30150 | LENS-WINDOW | |
| N53-16 | 21AB-40600 | GROMMET | |
| N53-16 | 21AB-30160 | O-RING/LENS WINDOW | |
| N53-17 | 21AB-30170 | O-RING-CAM | |
| N53-18 | 21AB-30180 | NUT-VOLUME | |
| N53-19 | 21AB-30190 | O-RING | |
| N53-20 | 21AB-30210 | CABLE ASSY | |
| 53-2 | 21Q5-20011 | BRACKET-CAMERA | |
| N53-2 | 21Q5-60110 | BRACKET-CAMERA | |
| 53-3 | S141-050106 | SCREW-FLAT HD | |
| 53-3 | S141-050102 | SCREW-FLAT HD | |
| 54 | 21Q6-11170 | HARNESS-CAMERA | |
| 55 | 21Q5-60150 | PLATE | |
| 56 | 21Q4-91040 | COVER ASSY | |
| 56 | 21Q4-91041 | COVER ASSY | |
| 56-1 | 21Q4-91070 | COVER | |
| 56-1 | 21Q4-91071 | COVER | |
| 56-2 | 21Q4-91050 | PLATE | |
| 56-2 | 21Q4-91051 | PLATE | |
| 56-3 | S035-081526 | BOLT-W/WASHER |
