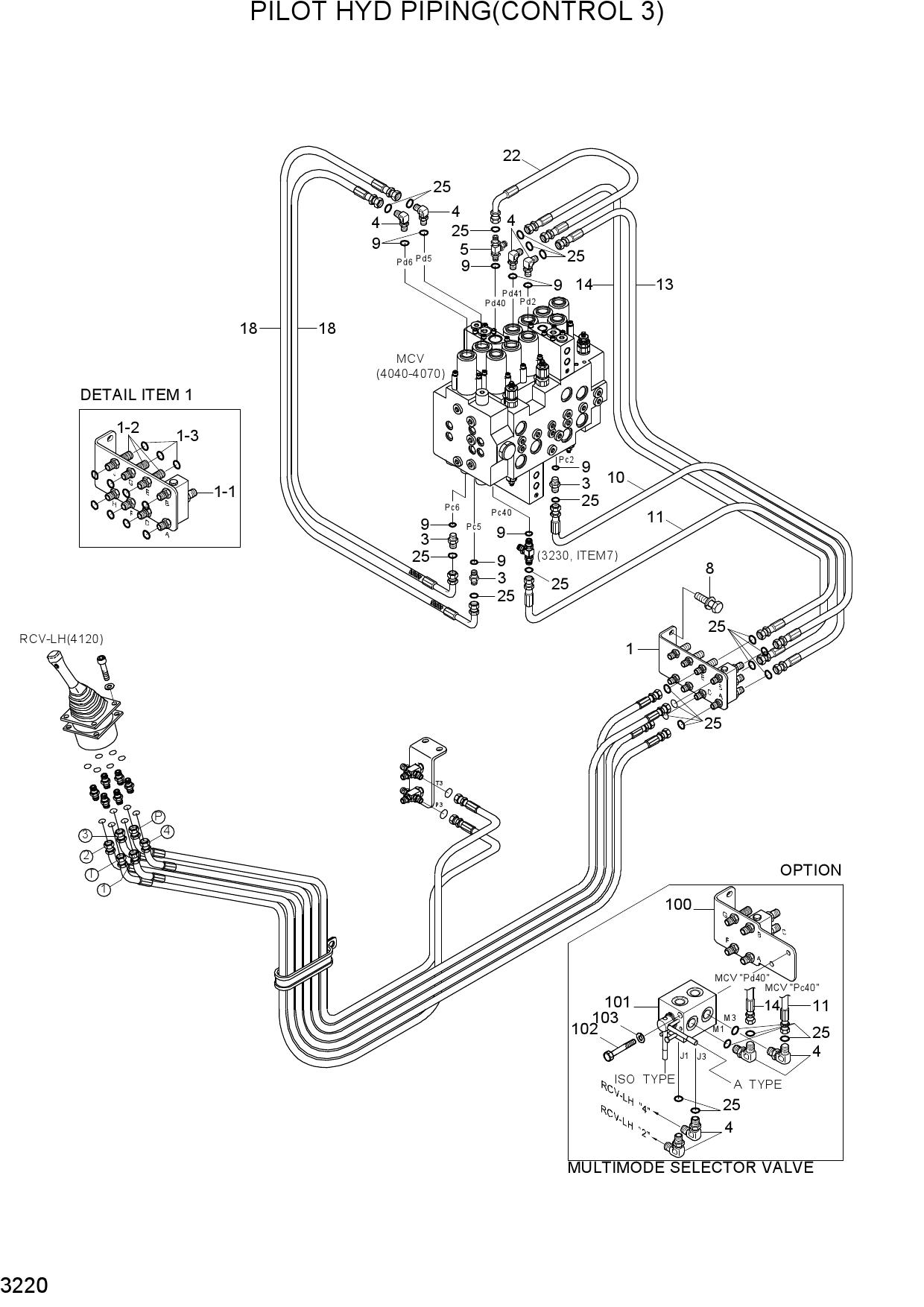

Запчасти для гусеничных экскаваторов Hyundai R160LC-7A PILOT HYD PIPING(CONTROL 3)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | 31N6-25010 | TERMINAL ASSY | |
| 1-1 | 31N6-25030 | SHUTTLE-5 PORT | |
| 1-2 | X540-120001 | CONNECTOR-ORFS | |
| 1-3 | S621-011001 | O-RING | |
| 3 | X500-110001 | CONNECTOR-ORFS | |
| 4 | X520-110001 | ELBOW-90,ORFS | |
| 4 | X520-110001 | ELBOW-90,ORFS | |
| 5 | X820-045151 | TEE-R/TYPE,ORFS | |
| 8 | S037-102042 | BOLT-W/WASHER | |
| 9 | S631-011004 | O-RING | |
| 10 | X400-042021 | HOSE ASSY-SYNFLEX,ORFS | |
| 11 | X400-042022 | HOSE ASSY-SYNFLEX,ORFS | |
| 13 | X400-042032 | HOSE ASSY-SYNFLEX,ORFS | |
| 14 | X400-042033 | HOSE ASSY-SYNFLEX,ORFS | |
| 18 | X400-042018 | HOSE ASSY-SYNFLEX,ORFS | |
| 22 | X420-042010 | HOSE ASSY-SYNFLEX,ORFS | |
| 25 | S621-011001 | O-RING | |
| 100 | 31N4-20140 | TERMINAL ASSY | |
| 101 | 31N6-22050 | SELECTOR VLV-MULTIMODE | |
| 102 | S015-080806 | BOLT-HEX | |
| 103 | S411-080006 | WASHER-SPRING |
