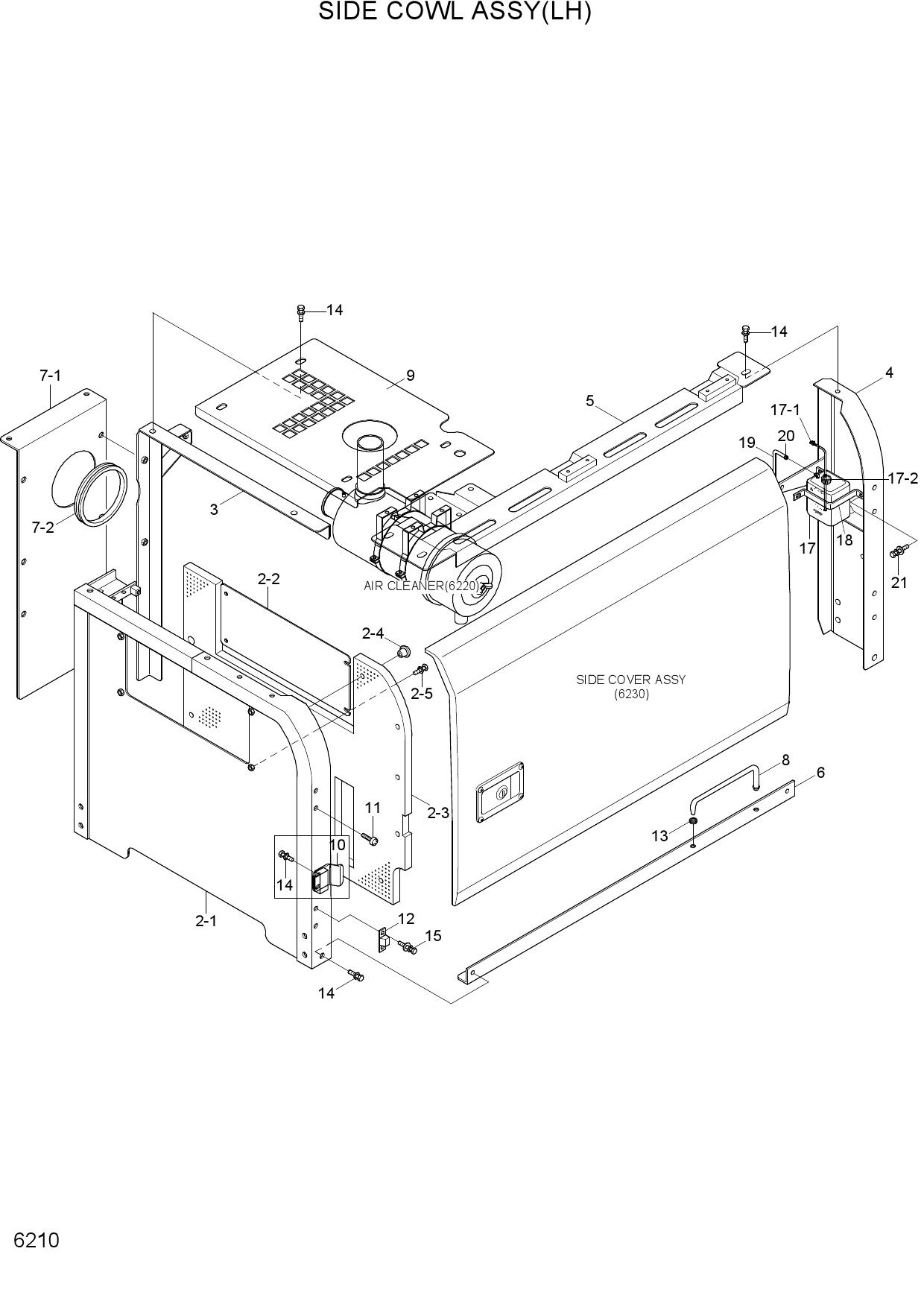

Запчасти для гусеничных экскаваторов Hyundai R160LC-7 SIDE COWL ASSY(LH)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 71N4-52300 | SUPPORT ASSY-LH(FR) | |
| 2-1 | 71N4-52310 | SUPPORT WA-LH(FR) | |
| 2-2 | 71N8-52322 | COVER-PLATE | |
| 2-3 | 71N4-52331 | SPONGE | |
| 2-4 | 71EM-51580 | CAP-STUD BOLT | |
| 2-5 | S037-122052 | BOLT-W/WASHER | |
| 3 | 71N5-52412 | SUPPORT WA-LH(MID) | |
| 4 | 71N5-52502 | SUPPORT WA-LH(RR) | |
| 5 | 71N5-52602 | SUPPORT-E/G HOOD | |
| 6 | 71N5-52701 | SUPPORT-LH(BOTTOM) | |
| 7 | 71N5-52900 | SCREEN ASSY-MCV | |
| 7-1 | 71N5-52910 | SCREEN WA-MCV | |
| 7-2 | S791-030054 | GROMMET-PLATE | |
| 8 | 71N8-52950 | STAY-SIDE COVER | |
| 9 | 71N5-55102 | HOOD-A/CLEANER | |
| 10 | 71N8-52492 | PLATE-LOCK | |
| 11 | 71EH-13150 | BUMPER-RUBBER | |
| 12 | 71EE-53540 | STOPPER-B | |
| 13 | S681-100400 | GROMMET | |
| 14 | S037-122552 | BOLT-W/WASHER | |
| 15 | S035-062022 | BOLT-W/WASHER | |
| 17 | 11EN-42330 | TANK-RESERVOIR | |
| 17-1 | 11EN-42400 | SENSOR-RESERVOIR | |
| 17-2 | 11EM-40070-K | CAP-RESERVOIR TANK | |
| 18 | 11N5-41070 | CLAMP-PLATE | |
| 19 | 11E3-4011 | HOSE | |
| 20 | S520-015000 | CLAMP-HOSE,S/DRIVE | |
| 21 | S035-082022 | BOLT-W/WASHER |
