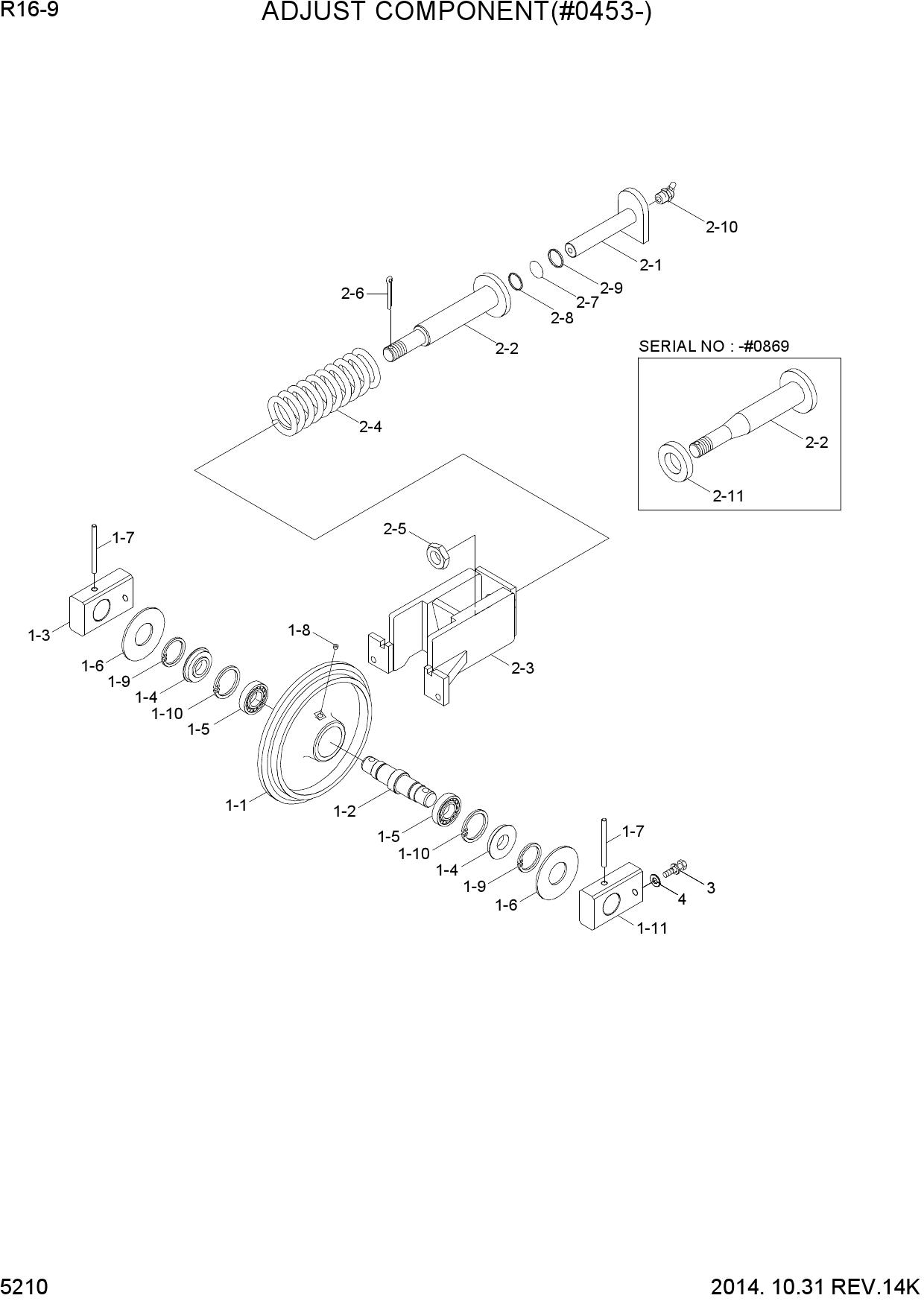

Запчасти для гусеничных экскаваторов Hyundai R16-9 ADJUST COMPONENT(#0453-)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| N* | 81MJ-15031 | ADJUST COMPONENT | |
| N* | 81MJ-15032 | ADJUST COMPONENT LH | |
| N* | 81MJ-15032 | ADJUST COMPONENT LH | |
| 1 | 81MJ-13031 | IDLER ASSY | |
| 1-1 | 81MJ-13300 | SHELL | |
| 1-2 | 81MJ-13311 | SHAFT | |
| 1-3 | 81MJ-13331 | COLLAR-LH | |
| 1-4 | 81MJ-13340 | OIL SEAL | |
| 1-5 | 81MJ-13320 | BALL BEARNG | |
| 1-6 | 81MJ-13420 | PLATE | |
| 1-7 | 81MJ-13380 | PIN | |
| 1-8 | 81MJ-13390 | PLUG-HEX | |
| 1-5 | 81MJ-13320 | BALL BEARNG | |
| 1-9 | 81MJ-13340 | OIL SEAL | |
| 1-10 | 81MJ-13410 | SNAP RING | |
| 1-11 | 81MJ-13350 | COLLAR-RH | |
| 1-6 | 81MJ-13420 | PLATE | |
| 1-7 | 81MJ-13380 | PIN | |
| 1-8 | 81MJ-13390 | PLUG-HEX | |
| 1-9 | 81MJ-13340 | OIL SEAL | |
| 1-10 | 81MJ-13410 | SNAP RING | |
| 1-11 | 81MJ-13350 | COLLAR-RH | |
| 2 | 81MJ-14014 | TENSION CYLIDNER ASSY | |
| 2-1 | 81MJ-14210 | PISTON-ROD | |
| N2-1 | 81MJ-14212 | ROD PISTON | |
| 2-2 | 81MJ-14100 | CYLINDER | |
| 2 | 81MJ-14014 | TENSION CYLIDNER ASSY | |
| 2 | 81MJ-14016 | TENSION CYLIDNER ASSY | |
| 2 | 81MJ-14016 | TENSION CYLIDNER ASSY | |
| 2-5 | 81MJ-14140 | NUT-CASTLE | |
| N2-1 | 81MJ-14212 | ROD PISTON | |
| N2-1 | 81MJ-14213 | PISTON-ROD | |
| 2-2 | 81MJ-14100 | CYLINDER | |
| 2-2 | 81MJ-14101 | CYLINDER | |
| 2-3 | 81MJ-14132 | BRACKET | |
| 2-3 | 81MJ-14134 | BRACKET | |
| 2-4 | 81MJ-14120 | SPRING | |
| 2-9 | 81MJ-14200 | PACKING | |
| 2-5 | 81MJ-14140 | NUT-CASTLE | |
| 2-10 | 81MJ-14240 | VALVE ASSY | |
| 2-11 | 81MJ-14301 | SPACER | |
| 3 | S109-080256 | BOLT-SOCKET | |
| 2-6 | 81MJ-14280 | PIN-SPLIT | |
| 2-7 | 81MJ-14180 | O-RING | |
| 2-8 | 81MJ-14190 | RING-BACKUP | |
| 2-9 | 81MJ-14200 | PACKING | |
| 2-10 | 81MJ-14240 | VALVE ASSY | |
| 2-11 | 81MJ-14301 | SPACER | |
| 3 | S109-080256 | BOLT-SOCKET | |
| 4 | S441-080006 | WASHER-HARDENED |
