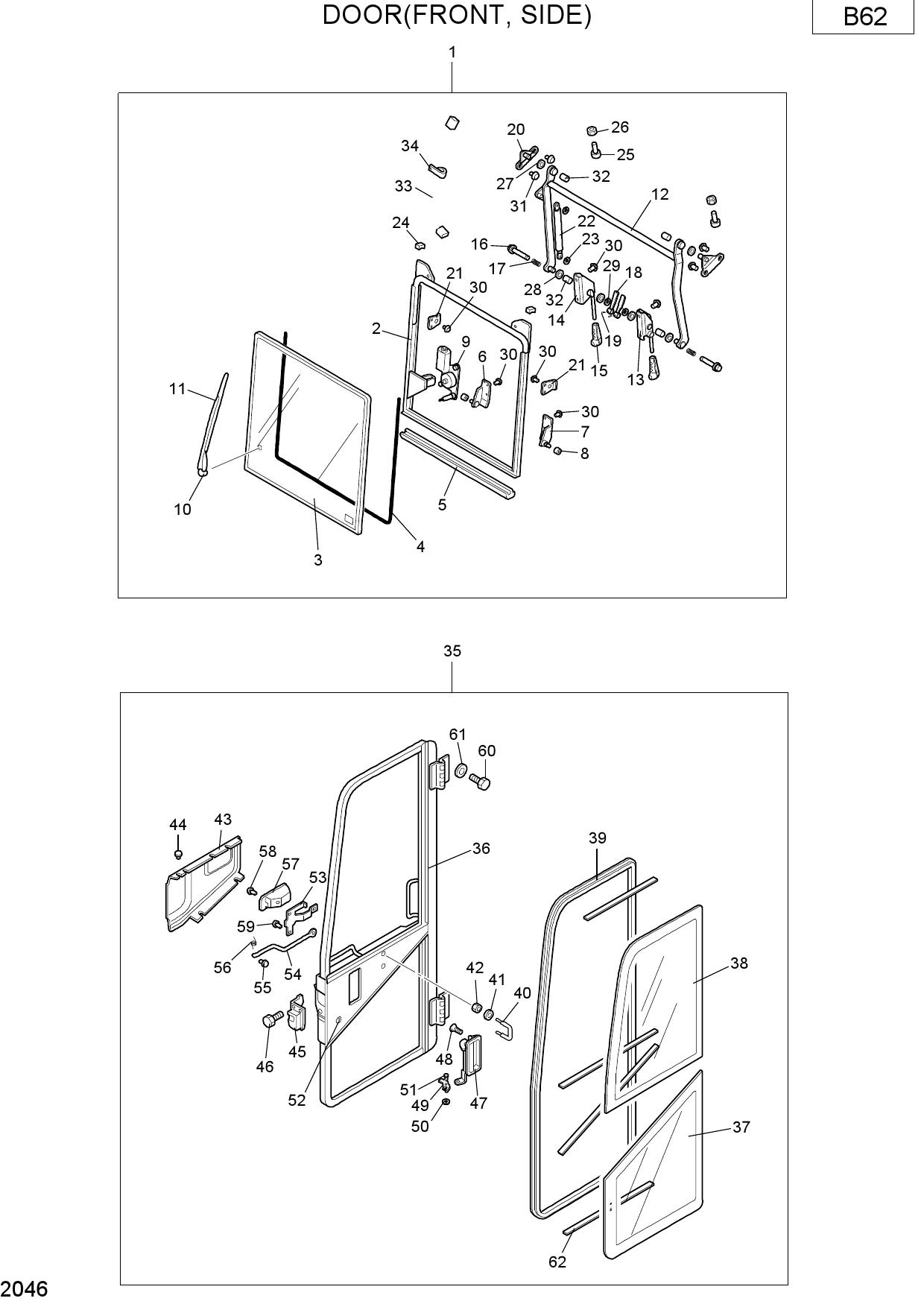

Запчасти для гусеничных экскаваторов Hyundai R15-7 DOOR(FRONT, SIDE)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 1 | XJDH-00913 | GLASS ASSY-FRONT | |
| 2 | XJDH-00881 | FRAME ASSY-FR GLASS | |
| 3 | XJDH-00888 | GLASS-RONT | |
| 4 | XJDH-00949 | DUM | |
| 5 | XJDH-00933 | SEAL-RUBBER | |
| 6 | XJDH-00900 | STAY ASSY-FR GLASS RH | |
| 7 | XJDH-00901 | STAY ASSY-FR GLASS LH | |
| 8 | XJDH-00906 | ROLLER | |
| 9 | XJDH-00926 | MOTOR ASSY-WIPER | |
| 10 | XJDH-00927 | ARM-WIPER | |
| 11 | XJDH-00928 | BLADE ASSY-WIPER | |
| 12 | XJDH-00902 | LINK ASSY-FRONT GLASS | |
| 13 | XJDH-00895 | BRKT ASSY-LINK FR GLASS LH | |
| 14 | XJDH-00896 | BRKT ASSY-LINK FR GLASS RH | |
| 15 | XJDH-00962 | GRIP | |
| 16 | XJDH-00958 | LATCH PIN | |
| 17 | XJDH-00959 | SPRING | |
| 18 | XJDH-00960 | LEVER ASSY-FR GLASS | |
| 19 | XJDH-01086 | PIN-SPRING | |
| 20 | XJDH-00897 | BRKT ASSY-LINK FR GLASS | |
| 21 | XJDH-00898 | HOLDER ASSY-LATCH | |
| 22 | XJDH-00963 | GAS SPRING | |
| 23 | XJDH-01087 | RINGS-RETAINING | |
| 24 | XJDH-00946 | STOPPER | |
| 25 | XJDH-00945 | STOPPER-RUBBER | |
| 26 | XJDH-01100 | NUT | |
| 27 | XJDH-01107 | WASHER | |
| 28 | XJDH-01108 | WASHER | |
| 29 | XJDH-01088 | RINGS-RETAINING | |
| 30 | XJDH-00969 | SCREW | |
| 31 | XJDH-00970 | SCREW | |
| 32 | XJDH-01178 | BUSHING-C | |
| 33 | XJDH-00905 | HARNESS | |
| 34 | XJDH-00964 | CLAMP-HARNESS | |
| 35 | XJDH-00912 | DOOR ASSY | |
| 36 | XJDH-00880 | FRAME ASSY-DOOR | |
| 37 | XJDH-00886 | GLASS-DOOR LOWER | |
| 38 | XJDH-00887 | GLASS-DOOR UPPER | |
| 39 | XJDH-00911 | SEAL-RUBBER | |
| 40 | XJDH-00899 | HOOK | |
| 41 | XJDH-01103 | WASHER | |
| 42 | XJDH-00968 | NUT-SPRING | |
| 43 | XJDH-00910 | COVER-DOOR INNER | |
| 44 | XJDH-01076 | SCREW-SET | |
| 45 | XJDH-00950 | LOCK-DOOR INNER | |
| 46 | XJDH-01092 | BOLT | |
| 47 | XJDH-00951 | HANDLE ASSY-OUTER | |
| 48 | XJDH-01075 | SCREW-SET | |
| 49 | XJDH-00879 | PLATE ASSY-HANDLE | |
| 50 | XJDH-01102 | NUT | |
| 51 | XJDH-01073 | BOLT-SET | |
| 52 | XJDH-00907 | CYLINDER-KEY | |
| 53 | XJDH-00952 | HANDLE-DOOR INNER | |
| 54 | XJDH-00953 | ROD | |
| 55 | XJDH-00954 | PIN | |
| 56 | XJDH-00955 | SPRING | |
| 57 | XJDH-00956 | COVER-HANDLE INNER | |
| 58 | XJDH-01096 | SCREW | |
| 59 | XJDH-01098 | SCREW | |
| 60 | XJDH-01093 | BOLT | |
| 61 | XJDH-01104 | WASHER | |
| 62 | XJDH-00948 | DUM |
