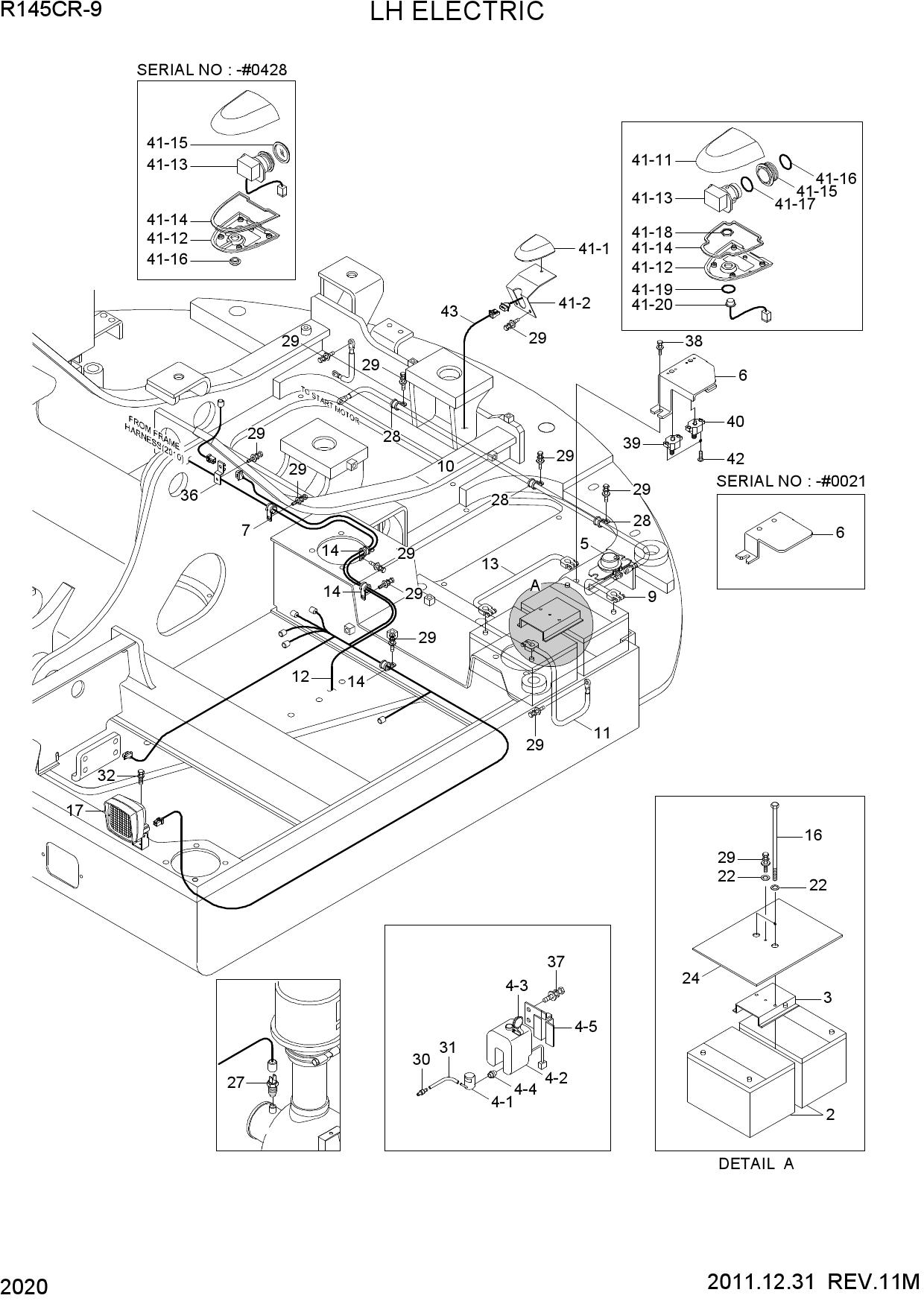

Запчасти для гусеничных экскаваторов Hyundai R145CR-9 LH ELECTRIC
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 2 | 25D1-00391 | BATTERY ASSY | |
| 3 | 21N3-10090 | BRACKET-BATTERY | |
| 4 | 21EG-30630 | WASHER TANK ASSY | |
| 4-1 | 21EG-10130 | PUMP-MOTOR | |
| 4-2 | 21EG-10140 | TANK | |
| 4-3 | 24L3-30660 | CAP | |
| 4-4 | 24L3-30670 | RUBBER-BUSHING | |
| 4-5 | 24L3-30710 | PLATE | |
| 5 | 21E5-0003 | RELAY-BATTERY | |
| 5 | 21QA-70010 | RELAY-BATTERY | |
| 6 | 21N6-10181 | COVER-BATT RELAY | |
| 6 | 21Q4-10180 | COVER-BATT RELAY | |
| 6 | 25Q4-10010 | COVER-BATT RELAY | |
| 7 | 31L7-10190 | CLAMP-TUBE | |
| 9 | 21L8-10290 | CABLE(BATT-BATT RY) | |
| 9 | 21E2-60140 | CABLE(BATT-BATT RY) | |
| 10 | 21EA-60611 | CABLE(BATT RY-STARTER) | |
| 10 | 24L4-00361 | CABLE(BATT RY-STARTER) | |
| 11 | 24L3-01120 | CABLE(BATT-EARTH) | |
| 11 | 21EK-15050 | CABLE(BATT-MASTER SW) | |
| 12 | 21N5-30021 | HARNESS-ECM | |
| 13 | 21E2-60420 | CABLE(BATT-BATT) | |
| 14 | 31L7-10210 | CLAMP-TUBE INS | |
| 16 | S017-102606 | BOLT-HEX | |
| 17 | 21Q4-60700 | WORK LAMP ASSY | |
| 17 | 21QB-60700 | WORK LAMP ASSY | |
| 17-1 | 21Q4-60800 | BULB-H3 | |
| 22 | 21EN-30560 | WASHER-PLAIN | |
| 24 | 21N3-10200 | COVER-BATTERY | |
| 27 | 21L7-20100 | SENSOR-AIR CLEANER | |
| 28 | 31L7-10200 | CLAMP-TUBE | |
| 29 | S037-102026 | BOLT-W/WASHER | |
| 30 | 21EA-50510 | CHECK VALVE ASSY | |
| 31 | 21EM-30581 | HOSE-RUBBER | |
| 32 | S037-104016 | BOLT-W/WASHER | |
| 36 | 21N4-01130 | PLATE-CLIP | |
| 37 | S035-062026 | BOLT-W/WASHER | |
| 38 | S035-082546 | BOLT-W/WASHER | |
| 39 | 21M9-01170 | CIRCUIT-BREAKER,60A | |
| 39 | 21M9-01171 | CIRCUIT-BREAKER,60A | |
| 40 | 21Q4-01160 | CIRCUIT-BREAKER,30A | |
| 40 | 21Q4-01161 | CIRCUIT-BREAKER,30A | |
| 41 | 21Q6-80100 | CAMERA ASSY-REAR VIEW | |
| 41 | 21Q6-80101 | CAMERA ASSY-REAR VIEW | |
| 41 | 21Q6-80102 | REAR VIEW CAMERA KIT | |
| 41-1 | 21AB-30031 | CAMERA ASSY-REAR | |
| 41-1 | 21AB-30032 | CAMERA ASSY-REAR | |
| 41-1 | 21AB-30033 | CAMERA ASSY-REAR | |
| N41-11 | 21AB-40100 | DOME-HOUSING | |
| N41-11 | 21AB-30110 | COVER-TOP | |
| N41-12 | 21AB-40200 | BASE-HOUSING | |
| N41-12 | 21AB-30120 | COVER-BOTTOM | |
| N41-13 | 21AB-40300 | CAMERA & PCB ASSY | |
| N41-13 | 21AB-30130 | CAMERA & PCB ASSY | |
| N41-14 | 21AB-40400 | SEAL | |
| N41-14 | 21AB-30140 | GASKET | |
| N41-15 | 21AB-40500 | WINDOW | |
| N41-15 | 21AB-30150 | LENS-WINDOW | |
| N41-16 | 21AB-40600 | GROMMET | |
| N41-16 | 21AB-30160 | O-RING/LENS WINDOW | |
| N41-17 | 21AB-30170 | O-RING-CAM | |
| N41-18 | 21AB-30180 | NUT-VOLUME | |
| N41-19 | 21AB-30190 | O-RING | |
| N41-20 | 21AB-30210 | CABLE ASSY | |
| 41-2 | 21AB-50030 | BRACKET-CAMERA | |
| 42 | S141-040206 | SCREW-FLAT HD | |
| 43 | 21Q6-11170 | HARNESS-CAMERA | |
| 43 | 21Q6-11142 | HARNESS-CAMERA |
