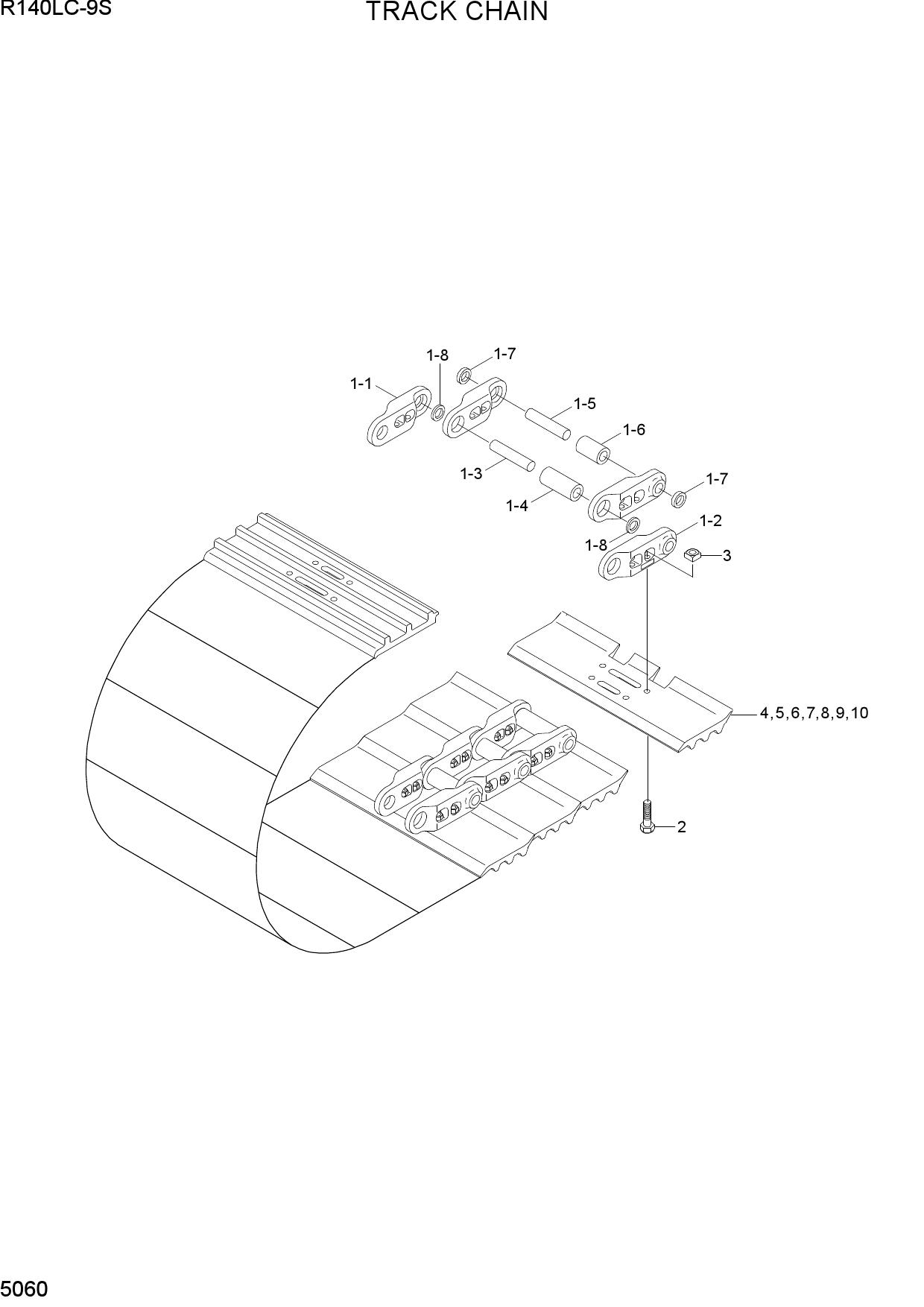

Запчасти для гусеничных экскаваторов Hyundai R140LC-9S(BRAZIL) TRACK CHAIN
/5060.jpg)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| * | 81N4-26022GG | TRACK CHAIN ASSY | |
| 1 | 81N4-26602 | TRACK LINK ASSY | |
| 1-1 | 81E6-26521 | TRACK LINK-RH | |
| 1-2 | 81E6-26511 | TRACK LINK-LH | |
| 1-3 | 81E6-26530 | PIN-TRACK | |
| 1-4 | 81N4-26151 | T/BUSH-REGULAR | |
| 1-5 | 81E6-26550 | PIN-MASTER | |
| 1-6 | 81E6-26560 | BUSHING-MASTER | |
| 1-7 | 81N4-26211 | SEAL-URETHANE | |
| 1-8 | 81E6-26570 | SPACER | |
| *-1 | 81E6-T0000 | TRACK BOLT & NUT KIT | |
| 2 | 81E6-26061 | BOLT-TRACK | |
| 3 | 81N4-26620 | NUT-TRACK | |
| 4 | 81E6-26011 | SHOE-TRACK | |
| * | 81N4-26032GG | TRACK CHAIN ASSY | |
| 1 | 81N4-26602 | TRACK LINK ASSY | |
| 1-1 | 81E6-26521 | TRACK LINK-RH | |
| 1-2 | 81E6-26511 | TRACK LINK-LH | |
| 1-3 | 81E6-26530 | PIN-TRACK | |
| 1-4 | 81N4-26151 | T/BUSH-REGULAR | |
| 1-5 | 81E6-26550 | PIN-MASTER | |
| 1-6 | 81E6-26560 | BUSHING-MASTER | |
| 1-7 | 81N4-26211 | SEAL-URETHANE | |
| 1-8 | 81E6-26570 | SPACER | |
| *-1 | 81E6-T0000 | TRACK BOLT & NUT KIT | |
| 2 | 81E6-26061 | BOLT-TRACK | |
| 3 | 81N4-26620 | NUT-TRACK | |
| 5 | 81E6-26021 | SHOE-TRACK | |
| * | 81N4-26042GG | TRACK CHAIN ASSY | |
| 1 | 81N4-26602 | TRACK LINK ASSY | |
| 1-1 | 81E6-26521 | TRACK LINK-RH | |
| 1-2 | 81E6-26511 | TRACK LINK-LH | |
| 1-3 | 81E6-26530 | PIN-TRACK | |
| 1-4 | 81N4-26151 | T/BUSH-REGULAR | |
| 1-5 | 81E6-26550 | PIN-MASTER | |
| 1-6 | 81E6-26560 | BUSHING-MASTER | |
| 1-7 | 81N4-26211 | SEAL-URETHANE | |
| 1-8 | 81E6-26570 | SPACER | |
| *-1 | 81E6-T0000 | TRACK BOLT & NUT KIT | |
| 2 | 81E6-26061 | BOLT-TRACK | |
| 3 | 81N4-26620 | NUT-TRACK | |
| 6 | 81E6-26031 | SHOE-TRACK | |
| * | 81N4-28040GG | TRACK CHAIN ASSY | |
| 1 | 81N4-27600 | TRACK LINK ASSY | |
| 1-1 | E181-2532 | TRACK LINK-RH | |
| 1-2 | E181-2531 | TRACK LINK-LH | |
| 1-3 | E181-2533 | PIN-TRACK | |
| 1-4 | 81N5-26140 | BUSHING-TRACK | |
| 1-5 | E181-2535 | PIN-MASTER | |
| 1-6 | E181-2536 | BUSHING-MASTER | |
| 1-7 | 81N4-26210 | SEAL-URETHANE | |
| 1-8 | E181-2537 | SPACER-MASTER | |
| *-2 | E181-T0000 | TRACK BOLT & NUT KIT | |
| 2 | E181-2504 | BOLT-TRACK | |
| 3 | E181-2505 | NUT-TRACK | |
| 7 | 81N4-28540 | SHOE-TRACK | |
| * | 81N4-27040GG | TRACK CHAIN ASSY | |
| 1 | 81N4-27600 | TRACK LINK ASSY | |
| 1-1 | E181-2532 | TRACK LINK-RH | |
| 1-2 | E181-2531 | TRACK LINK-LH | |
| 1-3 | E181-2533 | PIN-TRACK | |
| 1-4 | 81N5-26140 | BUSHING-TRACK | |
| 1-5 | E181-2535 | PIN-MASTER | |
| 1-6 | E181-2536 | BUSHING-MASTER | |
| 1-7 | 81N4-26210 | SEAL-URETHANE | |
| 1-8 | E181-2537 | SPACER-MASTER | |
| *-2 | E181-T0000 | TRACK BOLT & NUT KIT | |
| 2 | E181-2504 | BOLT-TRACK | |
| 3 | E181-2505 | NUT-TRACK | |
| 8 | E181-25061 | SHOE-TRACK | |
| * | 81N4-27060GG | TRACK CHAIN ASSY | |
| 1 | 81N4-27600 | TRACK LINK ASSY | |
| 1-1 | E181-2532 | TRACK LINK-RH | |
| 1-2 | E181-2531 | TRACK LINK-LH | |
| 1-3 | E181-2533 | PIN-TRACK | |
| 1-4 | 81N5-26140 | BUSHING-TRACK | |
| 1-5 | E181-2535 | PIN-MASTER | |
| 1-6 | E181-2536 | BUSHING-MASTER | |
| 1-7 | 81N4-26210 | SEAL-URETHANE | |
| 1-8 | E181-2537 | SPACER-MASTER | |
| *-2 | E181-T0000 | TRACK BOLT & NUT KIT | |
| 2 | E181-2504 | BOLT-TRACK | |
| 3 | E181-2505 | NUT-TRACK | |
| 9 | E181-25081 | SHOE-TRACK | |
| * | 81N4-29080GG | TRACK CHAIN ASSY | |
| 1 | 81N4-27600 | TRACK LINK ASSY | |
| 1-1 | E181-2532 | TRACK LINK-RH | |
| 1-2 | E181-2531 | TRACK LINK-LH | |
| 1-3 | E181-2533 | PIN-TRACK | |
| 1-4 | 81N5-26140 | BUSHING-TRACK | |
| 1-5 | E181-2535 | PIN-MASTER | |
| 1-6 | E181-2536 | BUSHING-MASTER | |
| 1-7 | 81N4-26210 | SEAL-URETHANE | |
| 1-8 | E181-2537 | SPACER-MASTER | |
| *-2 | E181-T0000 | TRACK BOLT & NUT KIT | |
| 2 | E181-2504 | BOLT-TRACK | |
| 3 | E181-2505 | NUT-TRACK | |
| 10 | 81N4-29580 | SHOE-TRACK |
