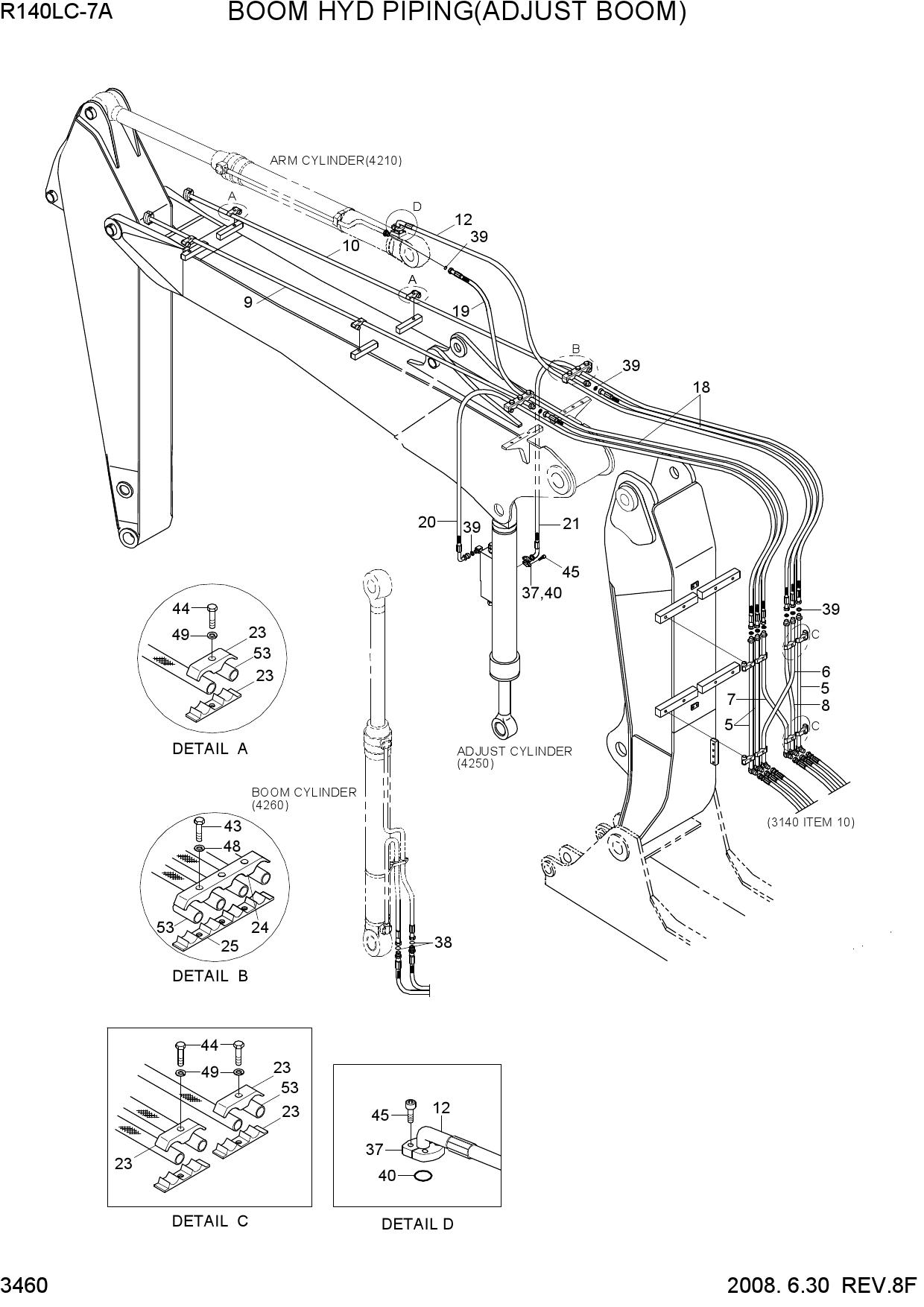

Запчасти для гусеничных экскаваторов Hyundai R140LC-7A BOOM HYD PIPING(ADJUST BOOM)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 5 | 31N4-52950 | PIPE ASSY | |
| 6 | 31N4-52960 | PIPE ASSY | |
| 7 | 31N4-52970 | PIPE ASSY | |
| 8 | 31N4-52980 | PIPE ASSY | |
| 9 | 31N4-52990 | PIPE ASSY | |
| 10 | 31N4-53000 | PIPE ASSY | |
| 12 | P980-127341 | HOSE ASSY-ORFS,FLG 0X90 | |
| 12 | 31N4-51230 | HOSE ASSY-ORFS,FLG 0X90 | |
| 18 | P910-127020 | HOSE ASSY-ORFS 0X0 | |
| 19 | P910-127041 | HOSE ASSY-ORFS 0X0 | |
| 20 | 31N4-53120 | HOSE ASSY | |
| 21 | 31N4-53130 | HOSE ASSY | |
| 23 | 31N4-12200 | CLAMP-PIPE | |
| 24 | 31N4-53140 | CLAMP-HOSE | |
| 25 | 31N4-53150 | CLAMP-HOSE | |
| 37 | P173-120102 | FLANGE-HYD,SPLIT | |
| 38 | S621-014001 | O-RING | |
| 39 | S621-018001 | O-RING | |
| 40 | Y171-019004 | O-RING | |
| 43 | S017-120702 | BOLT-HEX | |
| 44 | S017-160702 | BOLT-HEX | |
| 45 | S109-100306 | BOLT-SOCKET | |
| 48 | S411-120002 | WASHER-SPRING | |
| 49 | S411-160002 | WASHER-SPRING | |
| 53 | E131-0277 | SPACER-PIPE |
