- PUMP MOUNTING
- HYDRAULIC TANK
- UPPER HYDRAULIC PIPING(BASE)
- UPPER HYDRAULIC PIPING(ATTACH)
- UPPER HYDRAULIC PIPING(TRAVEL)
- PILOT HYDRAULIC PIPING(CONTROL 1)
- PILOT HYDRAULIC PIPING(CONTROL 2)
- PILOT HYDRAULIC PIPING(CONTROL 3)
- PILOT HYDRAULIC PIPING(BASE 1)
- PILOT HYDRAULIC PIPING(BASE 2)
- PILOT HYDRAULIC PIPING(BASE 3)
- TRAVEL HYDRAULIC PIPING(STD)
- TRAVEL HYD PIPING(DOZER BLADE 1)
- TRAVEL HYD PIPING(DOZER BLADE 2)
- TRAVEL HYDRAULIC PIPING(R110M-7)
- BOOM HYDRAULIC PIPING(4.3M, STD)
- BOOM GREASE LUB SYSTEM(4.3M, STD)
- BOOM SAFETY LOCK SYSTEM
- ARM HYDRAULIC PIPING
- ARM SAFETY LOCK SYSTEM
- DOZER BLADE HYDRAULIC PIPING(UPPER)
- QUICK CLAMP HYD PIPING
- DOUBLE ACTING MAIN PIPING KIT
- D/ACT MAIN PIPING KIT(DOZER)
- SINGLE ACTING MAIN PIPING KIT
- DOUBLE ACTING ATTACH PIPING KIT

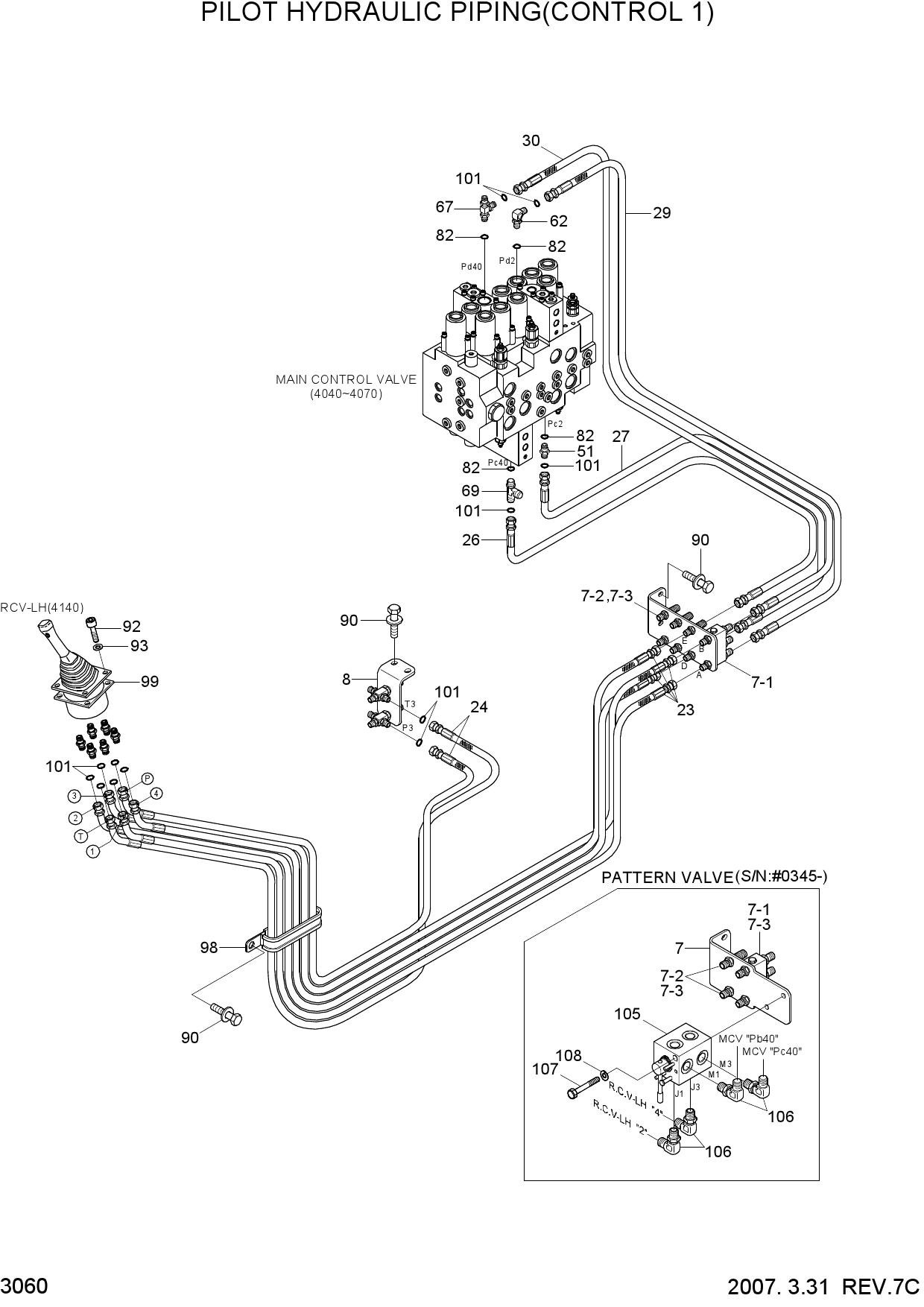

Запчасти для гусеничных экскаваторов Hyundai R110-7 PILOT HYDRAULIC PIPING(CONTROL 1)
| № | Номер | Описание | Заказать |
|---|---|---|---|
| 7 | 31N6-25010 | TERMINAL ASSY | |
| 7 | 31N4-20140 | TERMINAL ASSY | |
| 7-1 | 31N6-25030 | SHUTTLE-5 PORT | |
| 7-2 | X540-120001 | CONNECTOR-ORFS | |
| 7-2 | X540-120001 | CONNECTOR-ORFS | |
| 7-3 | S621-011001 | O-RING | |
| 7-3 | S621-011001 | O-RING | |
| 8 | 31N6-25100 | CROSS ASSY | |
| 23 | X410-042037 | HOSE ASSY-ORFS 0X45 | |
| 24 | X410-042025 | HOSE ASSY-ORFS 0X45 | |
| 26 | X400-042021 | HOSE ASSY-SYNFLEX,ORFS | |
| 27 | X400-042022 | HOSE ASSY-SYNFLEX,ORFS | |
| 29 | X400-042029 | HOSE ASSY-SYNFLEX,ORFS | |
| 30 | X400-042032 | HOSE ASSY-SYNFLEX,ORFS | |
| 51 | X500-110001 | CONNECTOR-ORFS | |
| 62 | X520-110001 | ELBOW-90,ORFS | |
| 67 | X820-045151 | TEE-R/TYPE,ORFS | |
| 69 | 31N4-22150 | TEE-LONG,ORFS | |
| 82 | S631-011004 | O-RING | |
| 90 | S037-102042 | BOLT-W/WASHER | |
| 92 | S175-060256 | SCREW-SOCKET RD HD | |
| 93 | S403-062006 | WASHER-PLAIN | |
| 98 | 31E7-0312 | CLAMP-HOSE | |
| 99 | 31M6-51061 | SHIM(3.2T) | |
| 101 | S621-011001 | O-RING | |
| 105 | 31N6-22050 | SELECTOR VLV-MULTIMODE | |
| 106 | X520-110001 | ELBOW-90,ORFS | |
| 107 | S015-080806 | BOLT-HEX | |
| 108 | S411-080006 | WASHER-SPRING |
